Introduction
10 840 USE 115 00 Version 1.0
1.2.3 Twisted Pair Connector
For the NOE 211, Schneider Automation recommends that you use Category 5
UTP cabling, which is rated to 100 Mbps, with an RJ-45 connector. You may also
use Category 3 UTP cabling, which is rated to 16 Mbps.
The eight pins are arranged vertically and numbered in order from the bottom to the
top. The RJ-45 pinout used by this module is:
z Receive Data (+) 3
z
Receive Data (-) 6
z
Transmit Data (+) 1
z Transmit Data (-) 2
1.2.4 Fiber Optic Connectors
For the NOE 251, you need 62.5/125 micron fiber optic cable with ST-style
connectors. Schneider Automation offers a 3 m cable with connectors (990 XCA
656 09).
This module comes with two fiber cable clasps, tubular plastic tools for installing
the cable.

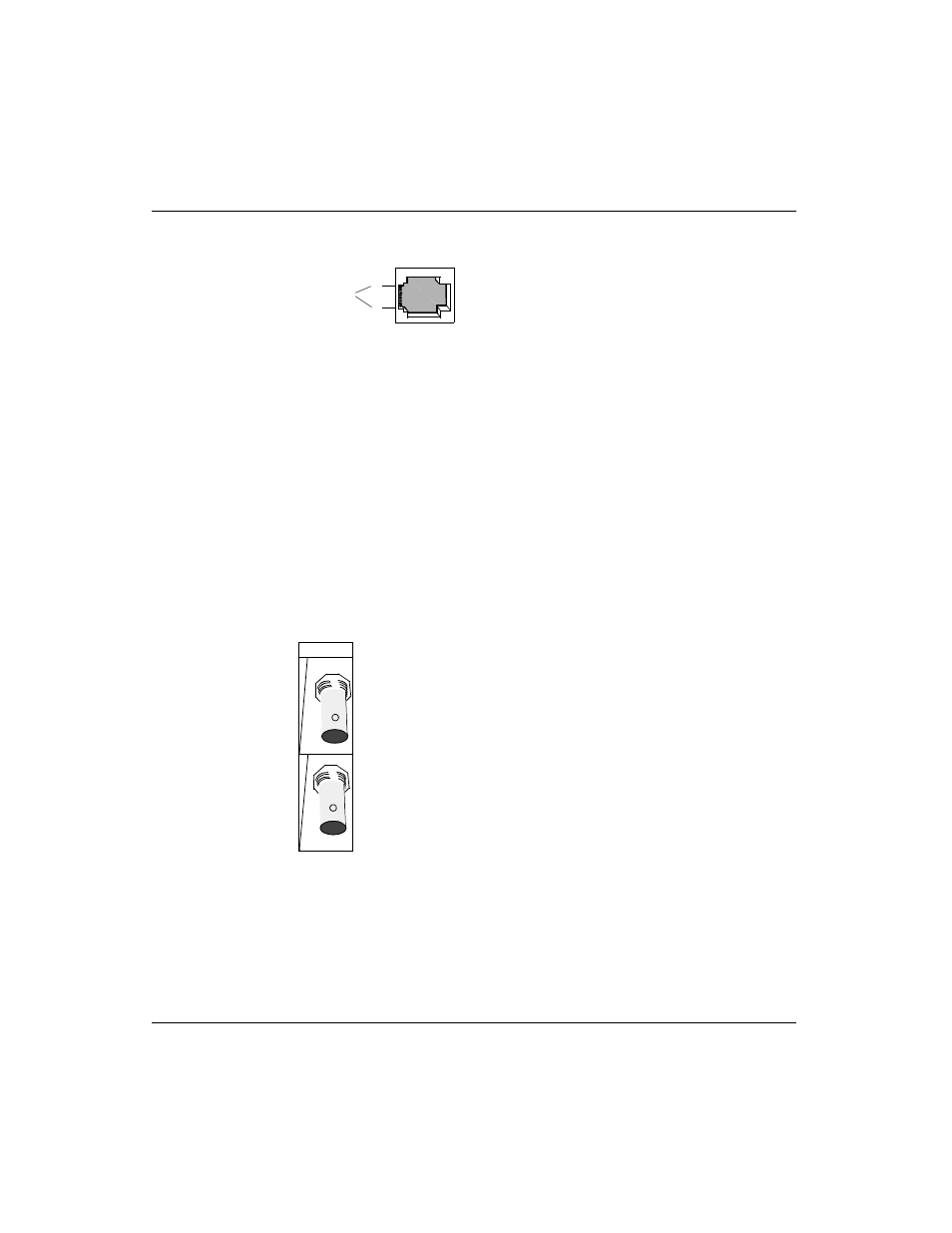

Figure 5 NOE 211 Connector
Pins
8
1
Figure 6 NOE 251 Connectors
