1-16 MSW-A2000
MSW-A2000P

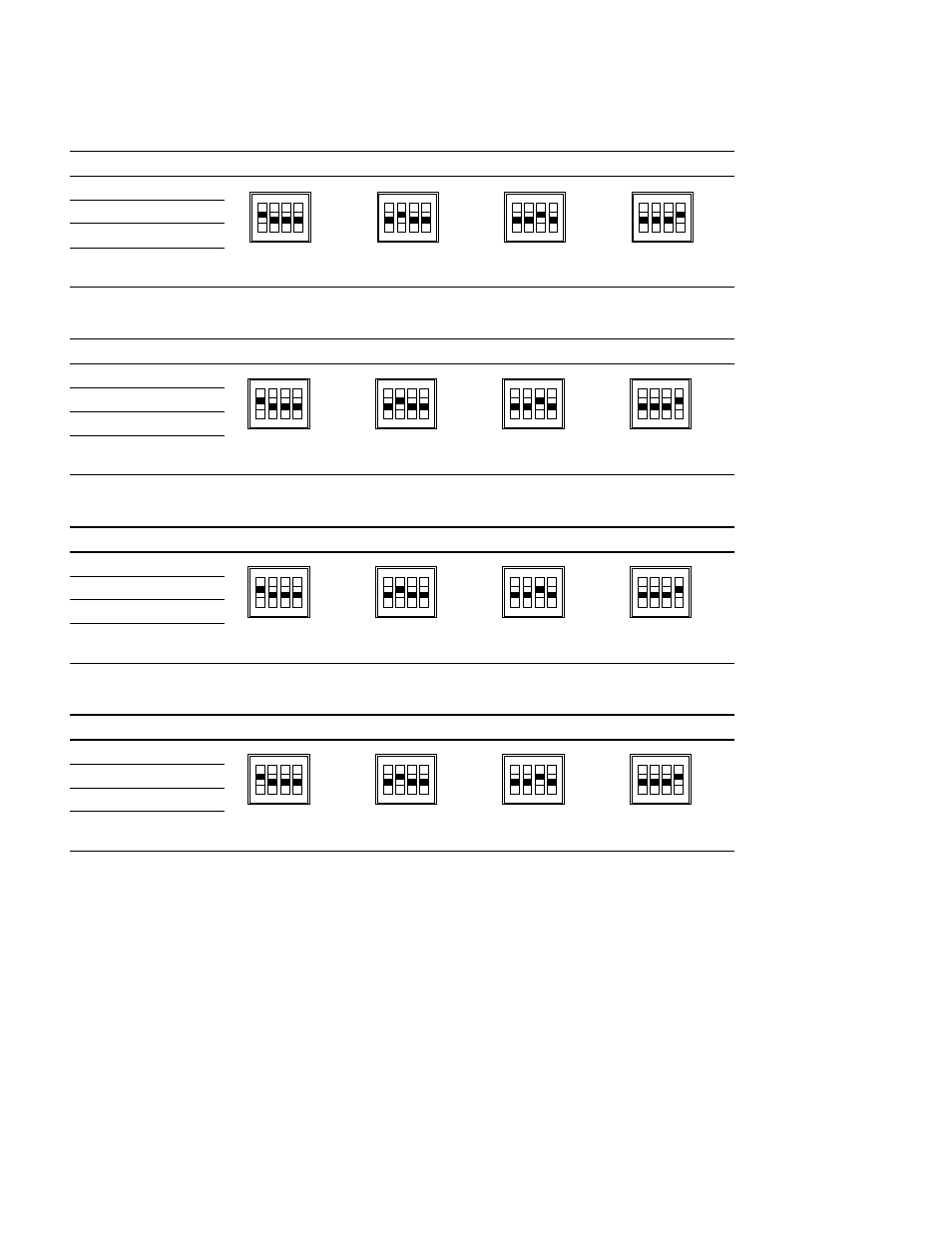

Audio input level settings
Channel Ref. No. Input level and Switches state ( \ \ \ \ \ : Knob position)
CH1 S100
CH2 S200
CH3 S300
CH4 S400 + 4 dBm/600 Z 0 dBm/600 Z _ 3 dBm/600 Z _ 20 dBm/600 Z
(Factory setting)
Audio input headroom settings
Channel Ref. No. Input headroom and Switches state ( \ \ \ \ \ : Knob position)
CH1 S101
CH2 S201
CH3 S301
CH4 S401 20 dB 18 dB 16 dB 12 dB
(Factory setting)
Audio output level settings
Channel Ref. No. Output level and Switches state ( \ \ \ \ \ : Knob position)
CH1 S501
CH2 S601
CH3 S701
CH4 S801 + 4 dBm/600 Z 0 dBm/600 Z _ 3 dBm/600 Z _ 20 dBm/600 Z
(Factory setting)
Audio output headroom settings
Channel Ref. No. Output headroom and Switches state ( \ \ \ \ \ : Knob position)
CH1 S500
CH2 S600
CH3 S700
CH4 S800 20 dB 18 dB 16 dB 12 dB
(Factory setting)
1-10. Analog Audio-related Switch Settings
1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4
1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4
1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4
1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4 1 2
O N
3 4
