Cascade Connection

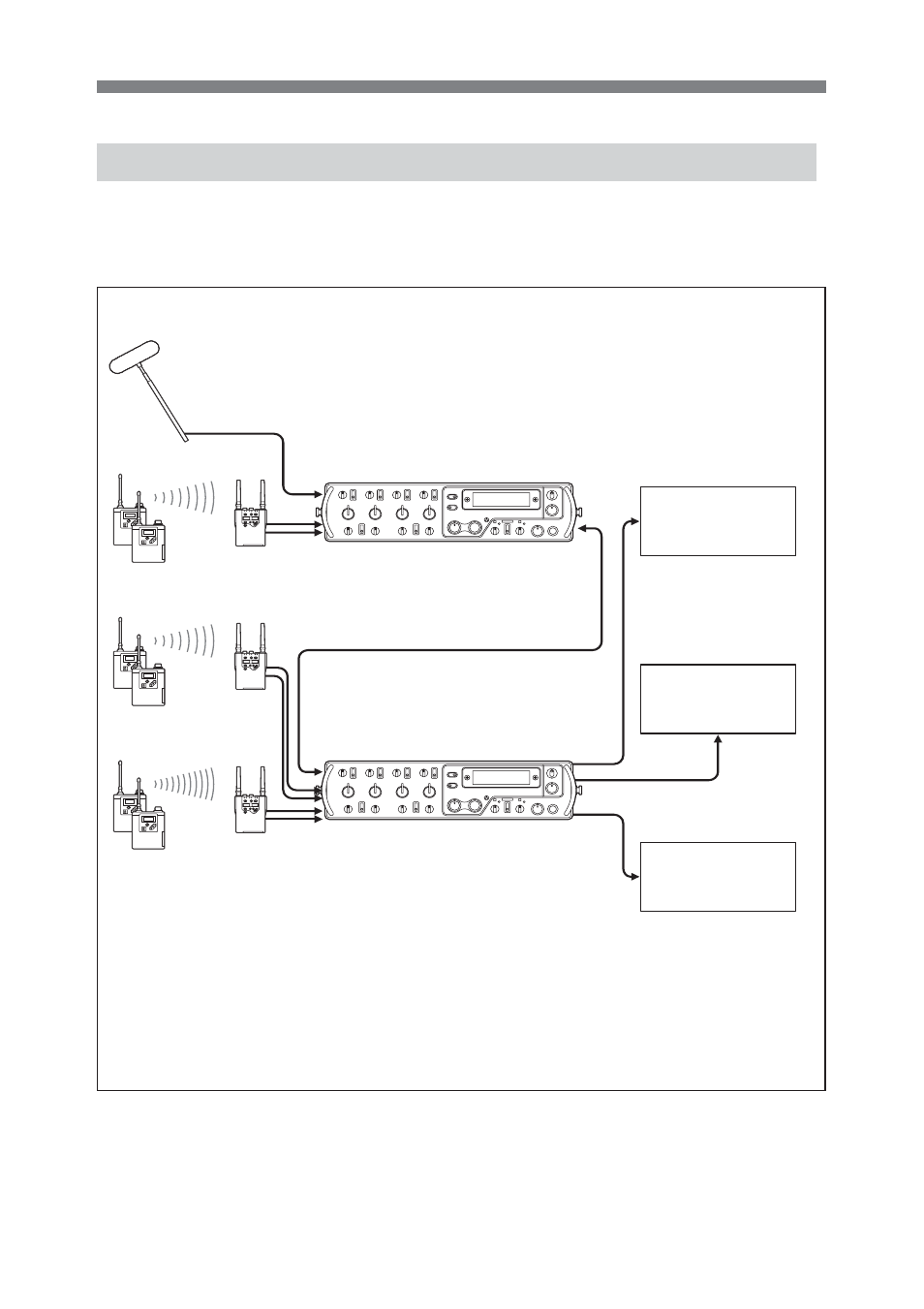

An example of a cascade connection is
as follows.
Boom microphone
to CH-1 INPUT
First DMX-P01
to COAXIAL a)
Video recorder
to CH-1and
CH-2 INPUT
to CASCADE IN
to ANALOG
OUTPUT L/R
MD recorder
to COAXIAL b)
to CH-2 and CH-3
INPUT
UHF portable
2 CH tuner
to AES/EBU
Second DMX-P01
Digital recorder UHF portable
transmitter
a) Set the S/PDIF / CASCADE switch to CASCADE.
b) Set the S/PDIF / CASCADE switch to S/PDIF.
to CH-3 and
CH-4 INPUT
