Instructions for the user

49

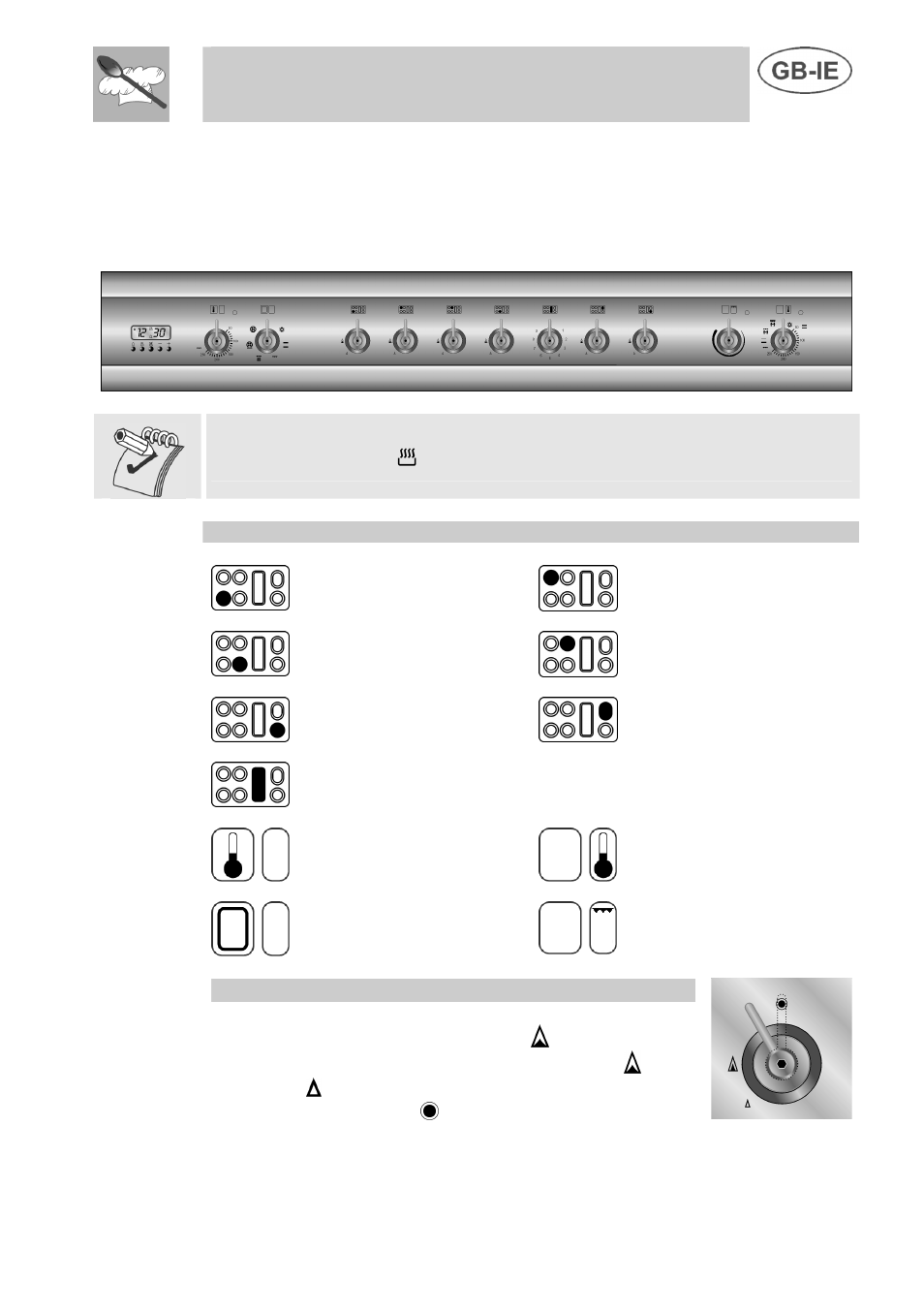

5. DESCRIPTION OF CONTROLS

5.1 Front control panel

All the cooker controls and commands are on the front panel.

Before using the main oven check that the electronic programmer is
showing the symbol

(see paragraph “5.2.1 Clock adjustment”).

DESCRIZIONE DEI SIMBOLI

FRONT LEFT BURNER

BACK LEFT BURNER

FRONT CENTRAL
BURNER

BACK CENTRAL
BURNER

FRONT RIGHT BURNER

BACK RIGHT BURNER

BARBECUE ELEMENT

MAIN OVEN
THERMOSTAT

AUXILIARY OVEN
THERMOSTAT

MAIN OVEN
FUNCTIONS

AUXILIARY OVEN
FUNCTIONS

COOKING HOB BURNER COMMAND KNOB

The flame is lit by pressing the knob and turning it
anticlockwise to maximum flame

. To adjust the

flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is
returned to the position

.
