C
ABLES
10

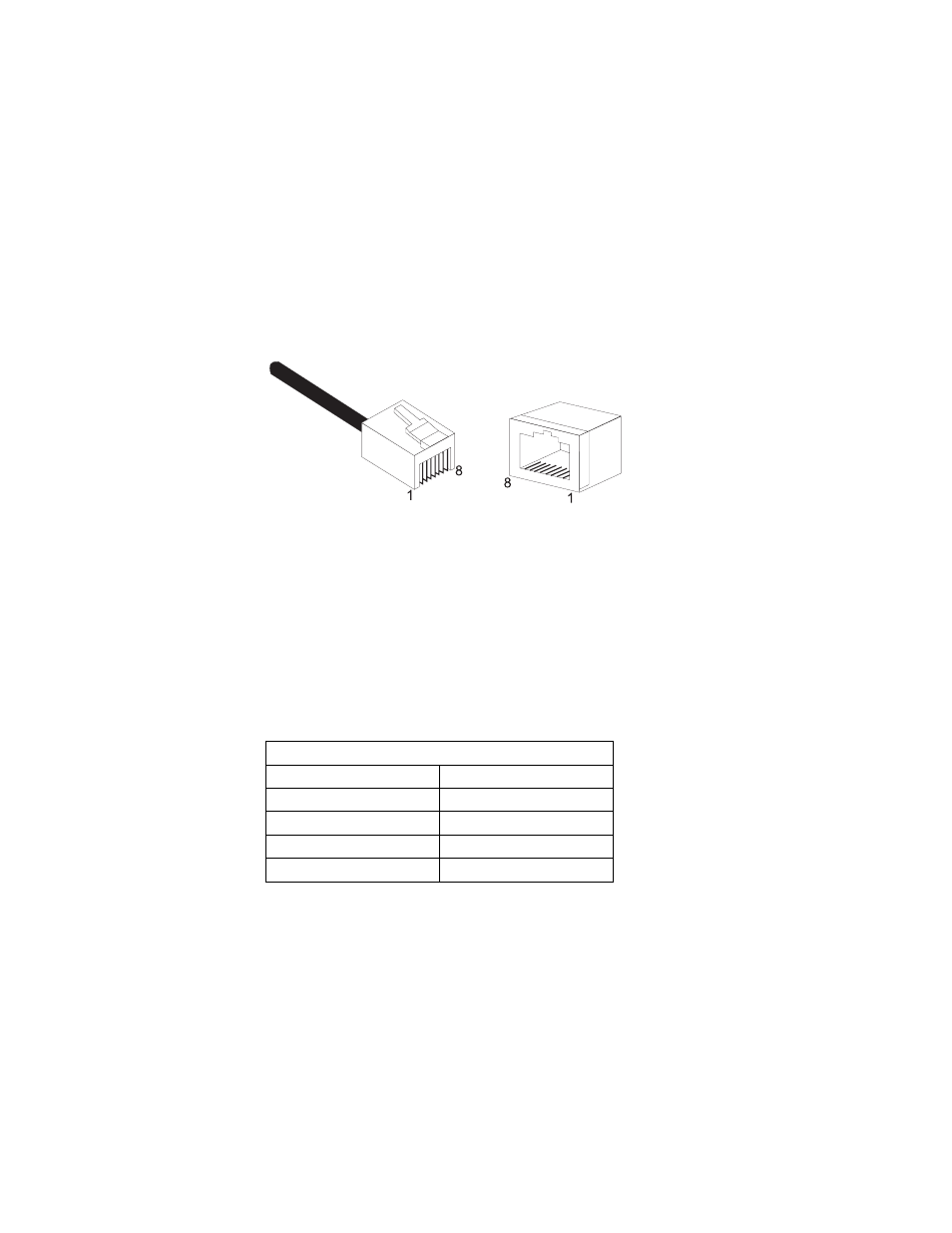

The figure below illustrates how the pins on the RJ-45 connector
are numbered. Be sure to hold the connectors in the same
orientation when attaching the wires to the pins.
10BASE-T/100BASE-TX Pin Assignments
With standard straight-through 10BASE-T/100BASE-TX cable, pins 1
and 2 are used for transmitting data, and pins 3 and 6 for receiving
data. The “+” and “-” signs in the table below are used to represent
the polarity of the wires that make up each wire pair.
Because all ports on this switch support automatic MDI/MDI-X
operation, you can use straight-through cables for all network
connections to PCs or servers, or to other switches or hubs..
Straight-Through RJ-45 Pin Assignments
End 1 End 2
1 (Tx+) 1 (Tx+)
2 (Tx-) 2 (Tx-)
3 (Rx+) 3 (Rx+)
6 (Rx-) 6 (Rx-)
