D
ESCRIPTION OF
H
ARDWARE
3
Side-Panel RJ-45 Ports
The side-panel ports are dual-speed RJ-45 ports that support
auto-configuration for MDI or MDI-X cable connection. PCs ,
switches or hubs can be connected to these ports with
straight-through cable. Each port supports auto-negotiation, so the
optimum communication mode (half or full duplex) and data rate
(10 Mbps or 100 Mbps) are selected automatically.
Rear and Bottom Panel Tracks
The tracks on the rear and bottom panels are designed to slide
into the switch stand for a variety of installation options. The
rear-panel track is used for wall-mounting or to lay the switch on a
flat surface. The bottom-panel track is used to stand the switch
upright.

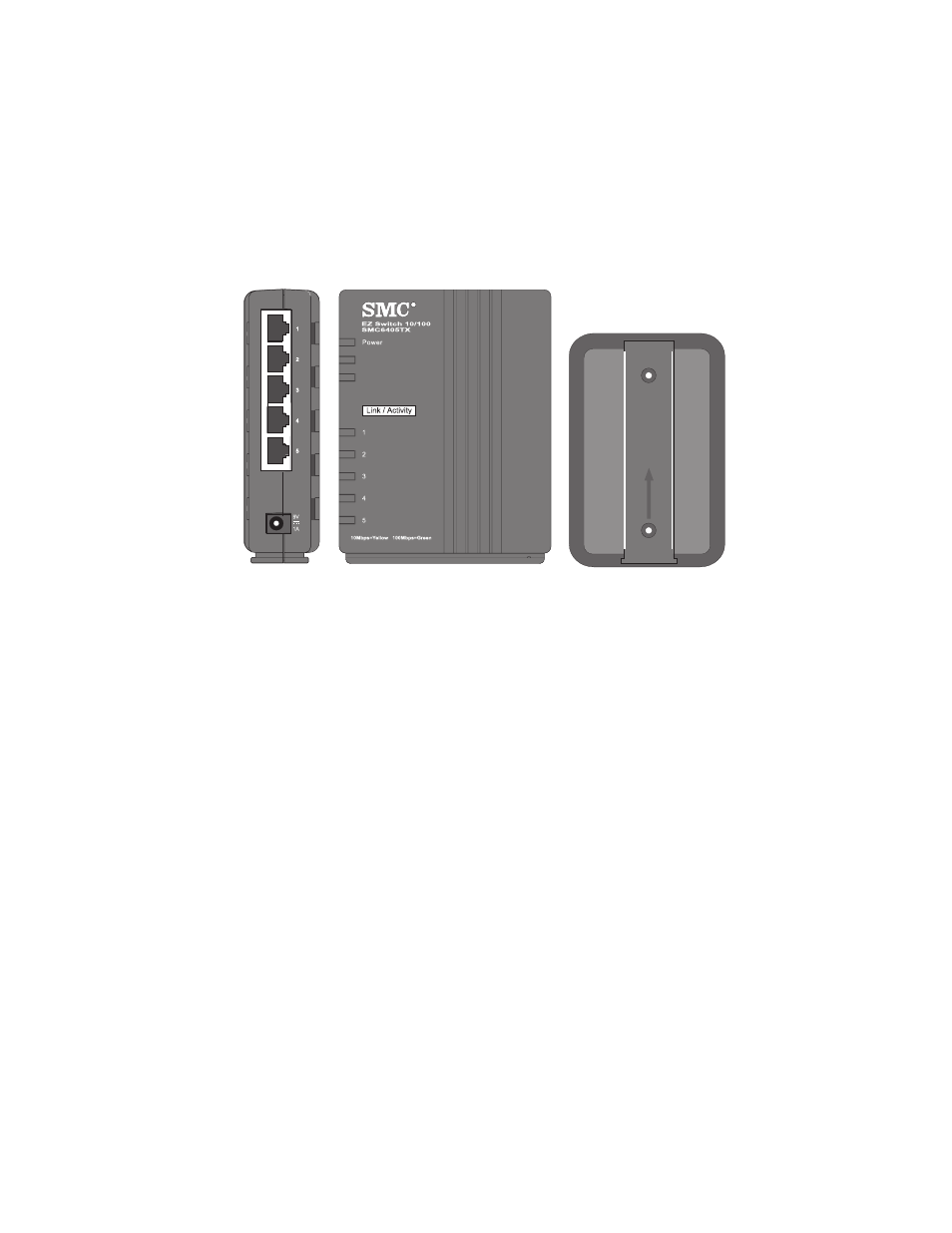

Side Panel
Connectors
Switch Stand EZ Switch 10/100 SMC6405TX Front Panel
