11

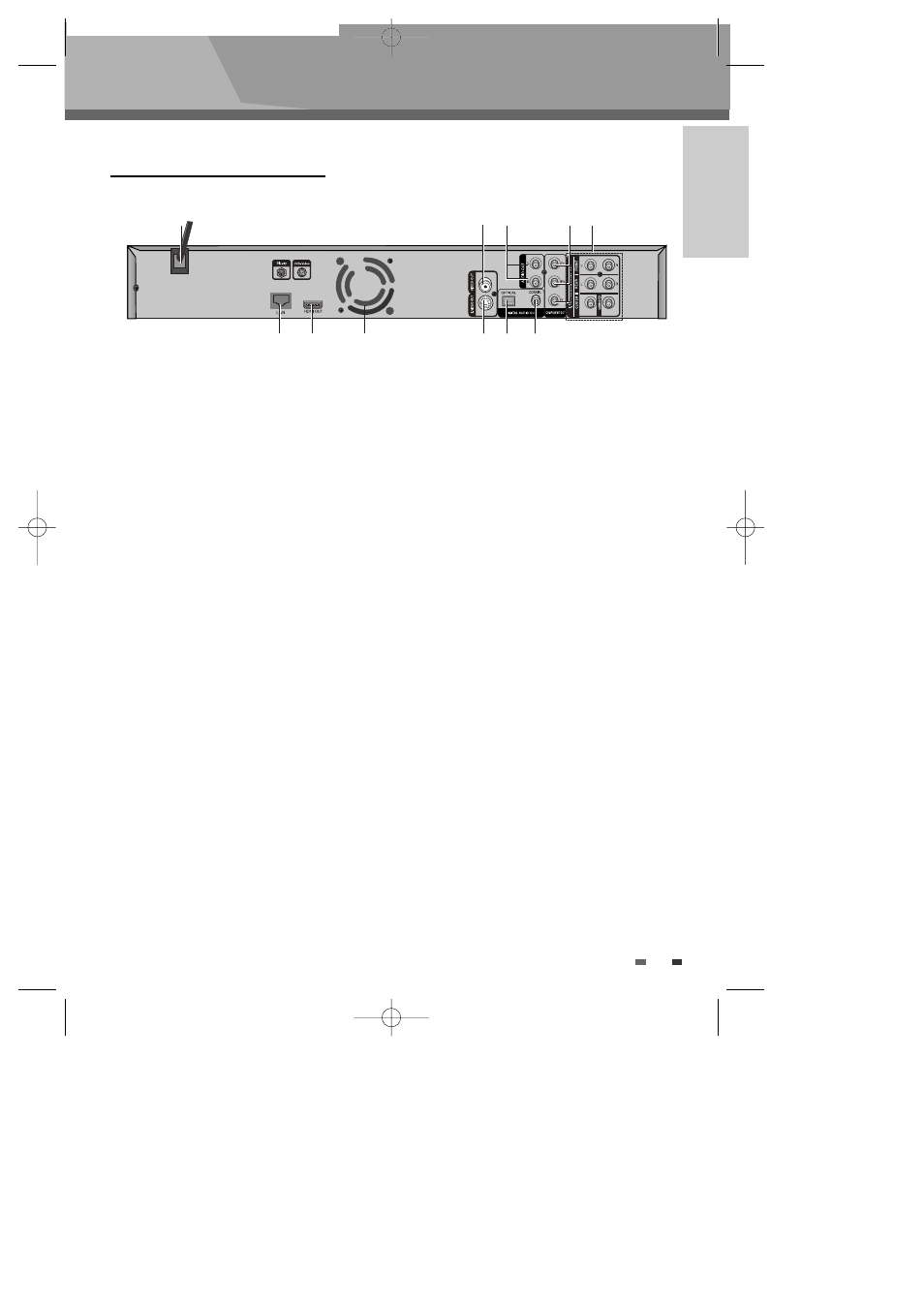

Identification of Controls
Main body (Rear Panel)
! POWER SUPPLY SOCKET WIRE
Supply unit power from the wall socket.
@ VIDEO OUT
Video output (composite) that you can
connect to your TV or AV receiver using the
supplied video cable.
# AUDIO OUT (2Ch)
Stereo analog outputs for connection to your
TV or AV receiver or stereo system.
$ COMPONENT VIDEO OUT
Connects to TV or monitor equipped with
Component input. This provides sharper &
cleaner picture than composite video.
% AUDIO OUT (5.1Ch)
Multi-channel (5.1Ch) analog audio outputs
for connection to an AV receiver with multi-
channel analog audio inputs.
^ DIGITAL AUDIO COAXIAL OUT
Connects digital audio under play mode into
an AV amplifier or a receiver equipped with
digital audio decoder for you to enjoy the
theatre-quality sound in your home.
& DIGITAL AUDIO OPTICAL OUT
Connects digital audio under play mode into
an AV amplifier or a receiver equipped with
digital audio decoder for you to enjoy the
theatre-quality sound in your home.
* S-VIDEO OUTPUT
Connects to TV or monitor equipped with S-
VIDEO input.
( Fan
The fan always runs when the power is on.
Ensure a minimum of 4 inches of clear space
on all sides of the fan when installing the
product.
) HDMI OUT
Audio/Video High definition multimedia digital
output terminal. Use the HDMI cable, connect
this HDMI output terminal to the HDMI input
terminal on your TV for the best quality
picture.
1 LAN
Connect this LAN terminal to the LAN terminal
on your modem for software upgrades.
!
( ) 1 ^ & *
@ % # $
