23
Connections
PC Connection
HDMI/DVI
IN
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
Y
Pb
Pr
L
R
COMPONENT IN
AUDIO
AV IN
AUDIO
L
VIDEO
R
DVI OUTPUT
AUDIO OUT

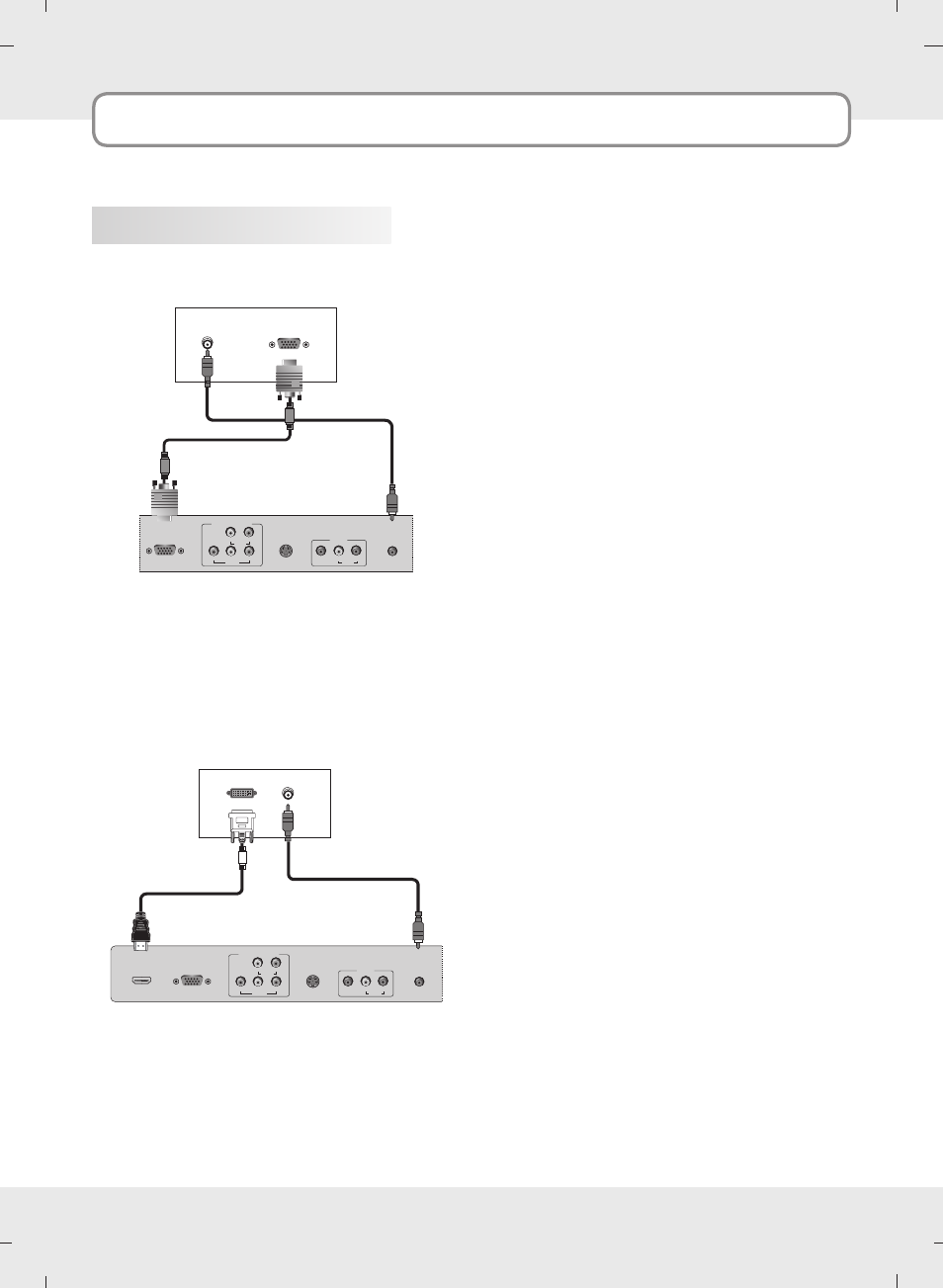

1. Connect the DVI output of the PC to the
HDMI/
DVI IN jack on the set.
2. Connect the PC audio outputs to the
AUDIO IN
(RGB/DVI) jack on the set.
3. Turn on the PC and the set.
4. Select
HDMI input source with using the
SOURCE button on the remote control.
A
When connecting with a HDMI to DVI cable
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
Y
Pb
Pr
L
R
COMPONENT IN
AUDIO
AV IN
AUDIO
L
VIDEO
R
AUDIO OUT
PC OUTPUT
1. Connect the
RGB output of the PC to the RGB
IN(PC) jack on the set.
2. Connect the PC audio outputs to the
AUDIO IN
(RGB/DVI) jack on the set.
3. Turn on the PC and the set.
4. Select
VGA input source with using the
SOURCE button on the remote control.
A
When connecting with a D-Sub 15 pin cable
PC
Back panel of the set
PC
Back panel of the set
