21
Connections
(L) AUDIO (R) Y Pb Pr
VIDEO
Y Pb Pr
COMPONENT IN
L R
AUDIO
VIDEO L R
AUDIO
AV IN
S-VIDEO
IN

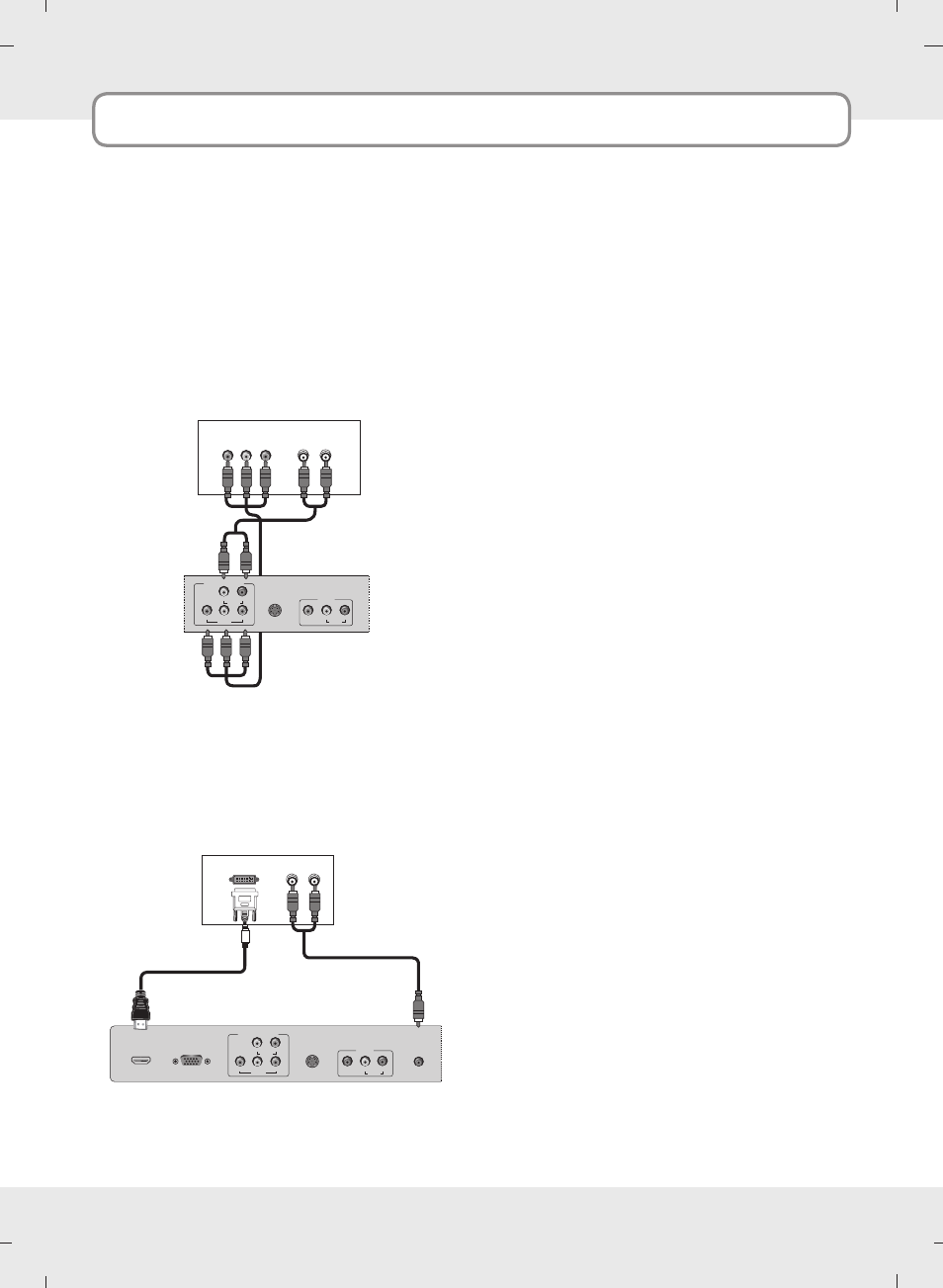

1. Connect the video outputs (Y, PB, PR) of the
digital set-top box to the COMPONENT
VIDEO(Y, Pb, Pr) jacks on the set.
2. Connect the audio outputs of the digital set-top
box to the COMPONENT AUDIO L, R jacks on
the set.
3. Turn on the digital set-top box.
4. Select YPbPr source with using the SOURCE
button on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
A
When connecting with a Component cable
HDMI/DVI
IN
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
Y Pb Pr
L R
COMPONENT IN
AUDIO
AV IN
AUDIO
L VIDEO R
DVI-DTV OUTPUT (R) AUDIO (L)
1. Connect the DVI output of the digital set-top
box to the HDMI/DVI IN jack on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (RGB/DVI) jack on the set.
3. Turn on the digital set-top box.
4. Select HDMI input source with using the
SOURCE button on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
A
When connecting with a HDMI to DVI cable
Digital Set-top Box
Back panel of the set
Digital Set-top Box
Back panel of the set
