20
Connections
HDSTB Connection
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
S-VIDEO
IN
VIDEO
Y Pb Pr
L R
COMPONENT IN
AUDIO
AV IN
AUDIO
L VIDEO R
(R) AUDIO (L) RGB-DTV OUTPUT

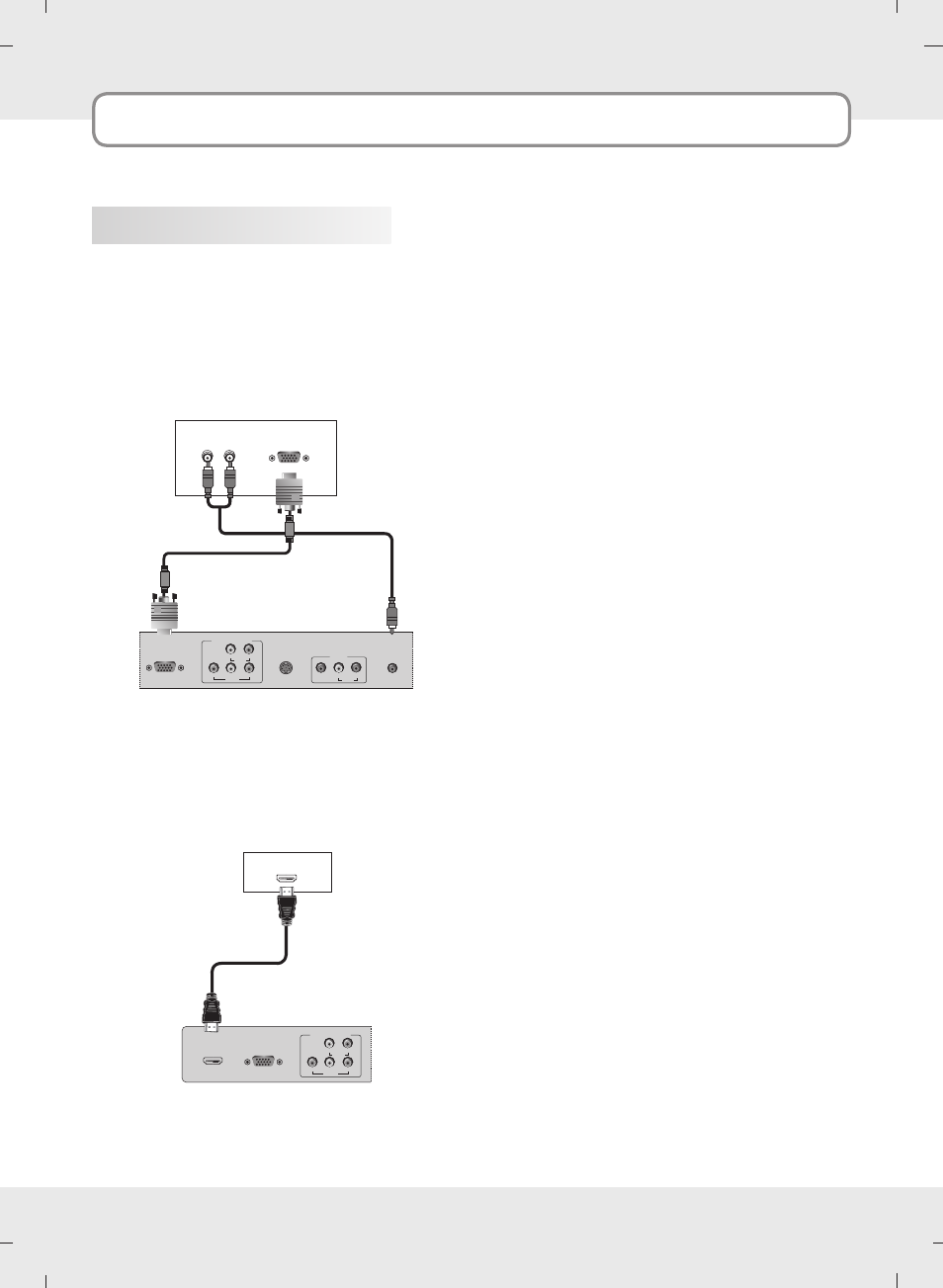

1. Connect the RGB output of the digital set-top
box to the RGB IN (PC) jack on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (RGB/DVI) jack on the set.
3. Turn on the digital set-top box.
4. Select VGA input source with using the
SOURCE button on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
A
When connecting with a D-Sub 15 pin cable
HDMI/DVI
IN
RGB IN
(PC)
VIDEO
Y Pb Pr
L R
COMPONENT IN
AUDIO
HDMI-DVD OUTPUT
1. Connect the HDMI output of the digital set-top
box to the HDMI/DVI IN jack on the set.
2. Turn on the digital set-top box.
3. Select HDMI input source with using the
SOURCE button on the remote control.
4. Refer to the digital set-top box manual for oper-
ating instructions.
A
When connecting with a HDMI cable
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box.
However, if you do receive Digital signals from a digital set-top box or other digital external device,
refer to the figure as shown below.
Digital Set-top Box
Digital Set-top Box
Back panel of the set
Back panel of the set
