-14-
W1764 Power Feeder
SE
TU
P

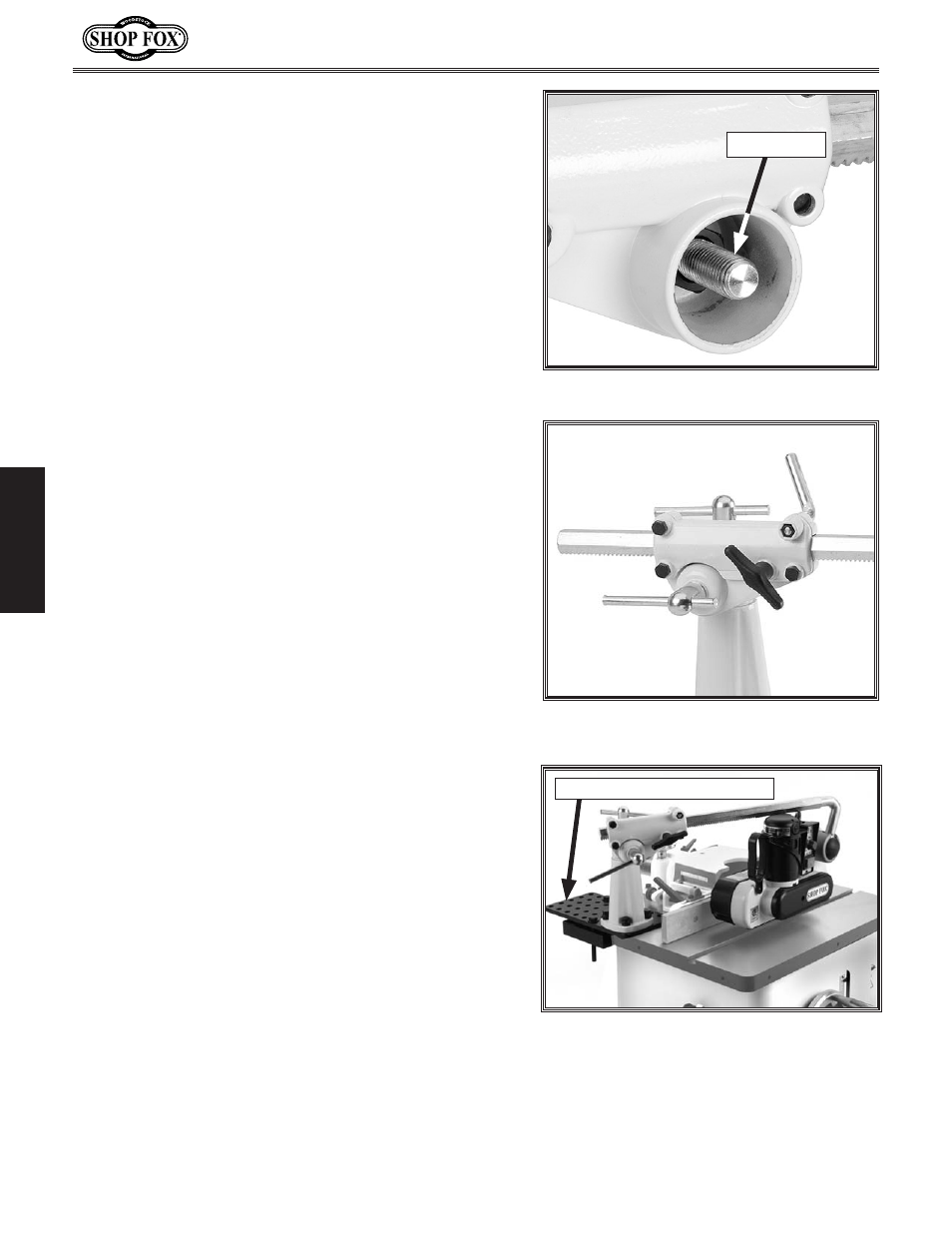

Figure 12. Arm bracket and elbow clamp
assembly.
15. Lightly oil the T-handle threads shown in Figure 11.
Note: No lubrication is required for the arm bracket
and the elbow clamp connection.
16. Position the arm bracket onto the elbow clamp as
shown in Figure 12.
17. Thread the T-handle into the elbow clamp so both
assemblies are secure as shown in Figure 12.
18. Use the levers to lock the power feeder into posi-
tion, such as the example shown in Figure 13.
Figure 11. Arm bracket handle threads.
Oil Threads
Figure 13. Typical power feed mounting
using an optional Model D3868 Quick
Holder.
Model D3868 Quick Holder
