CV0204DVR 4

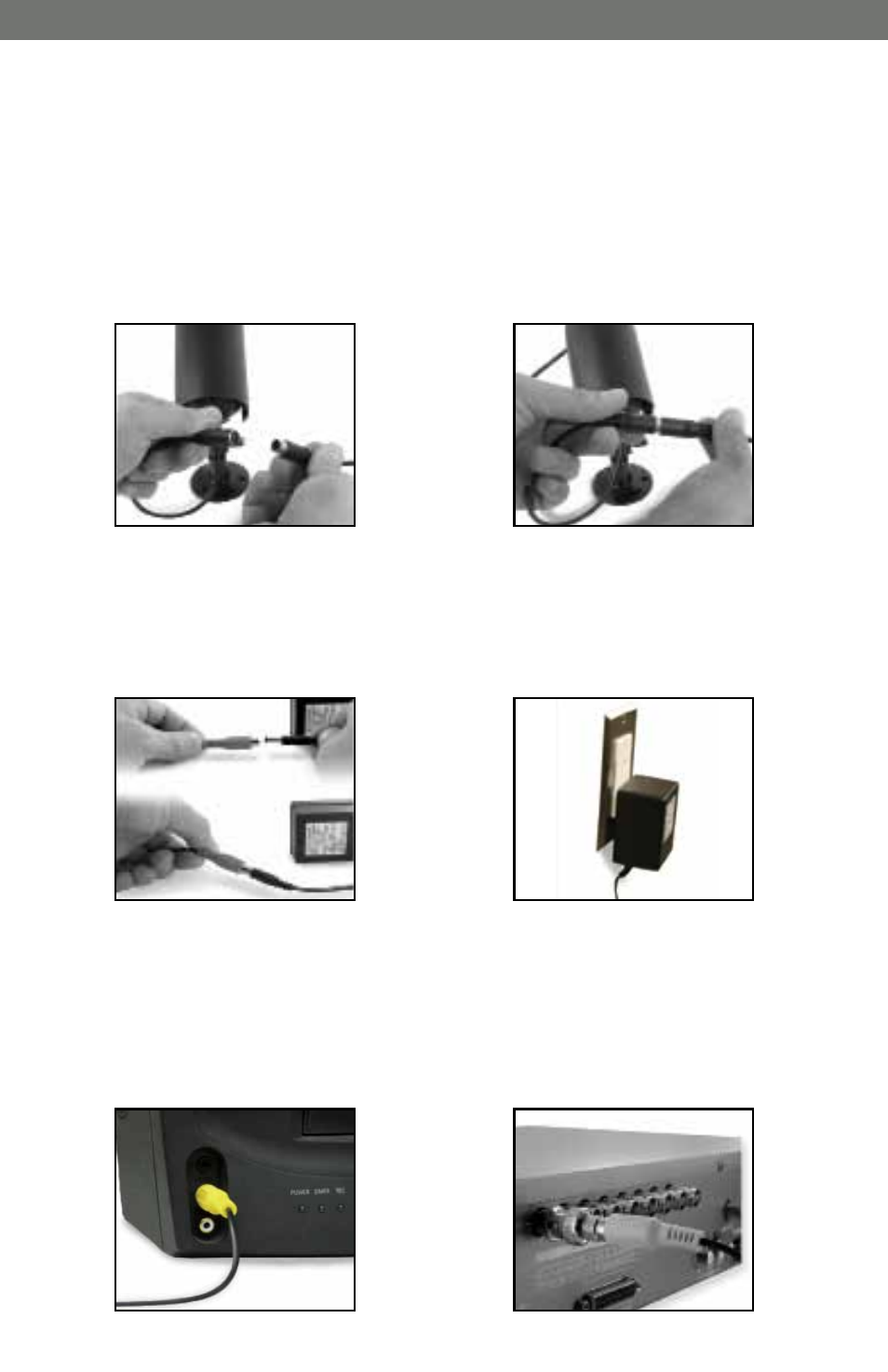

1. STEP BY STEP CAMERA SETUP
Follow these instructions for the installation of each camera.
The 60ft video/power wire has two connections: one for video out, and one for power.
SVAT ELECTRONICS
Now You Can See
1 2
3 4
5 6
1
. Plug the 4 pin DIN female connection
on the camera into the 4 PIN DIN male
connection on the 60ft video/power wire.
3
. Plug the camera’s power supply into
the power jack located on the 60ft
video/power wire.
5
. Connect the 60ft video/power wire’s
male RCA plug to the VIDEO IN port of
your TV/monitor/VCR/DVR.
2
. Match the two arrows on top of both
connectoring cables.
4
. Plug the camera’s power adapter into
an AC outlet.
6
. If your VIDEO IN port is a BNC
connection (common with DVR units),
you will need to attach the BNC to RCA
adapter before connecting the camera.
