CV0204DVR 8
*Note ~ CH1: No block figure next to CH1 indicates that it is not recording.
EACH: Record Type QUAD: Record Type
(M): MASTER HDD
(T): TIMER RECORD (A): MOTION RECORD (M): MIX RECORD
(
c
): Currently under recording.
VIDEO LOSS: Video input unable to be detected.
CAMERA1: Title for CH 1.
OFF: Channel is set to “OFF”.
4.4 PLAYBACK MODE

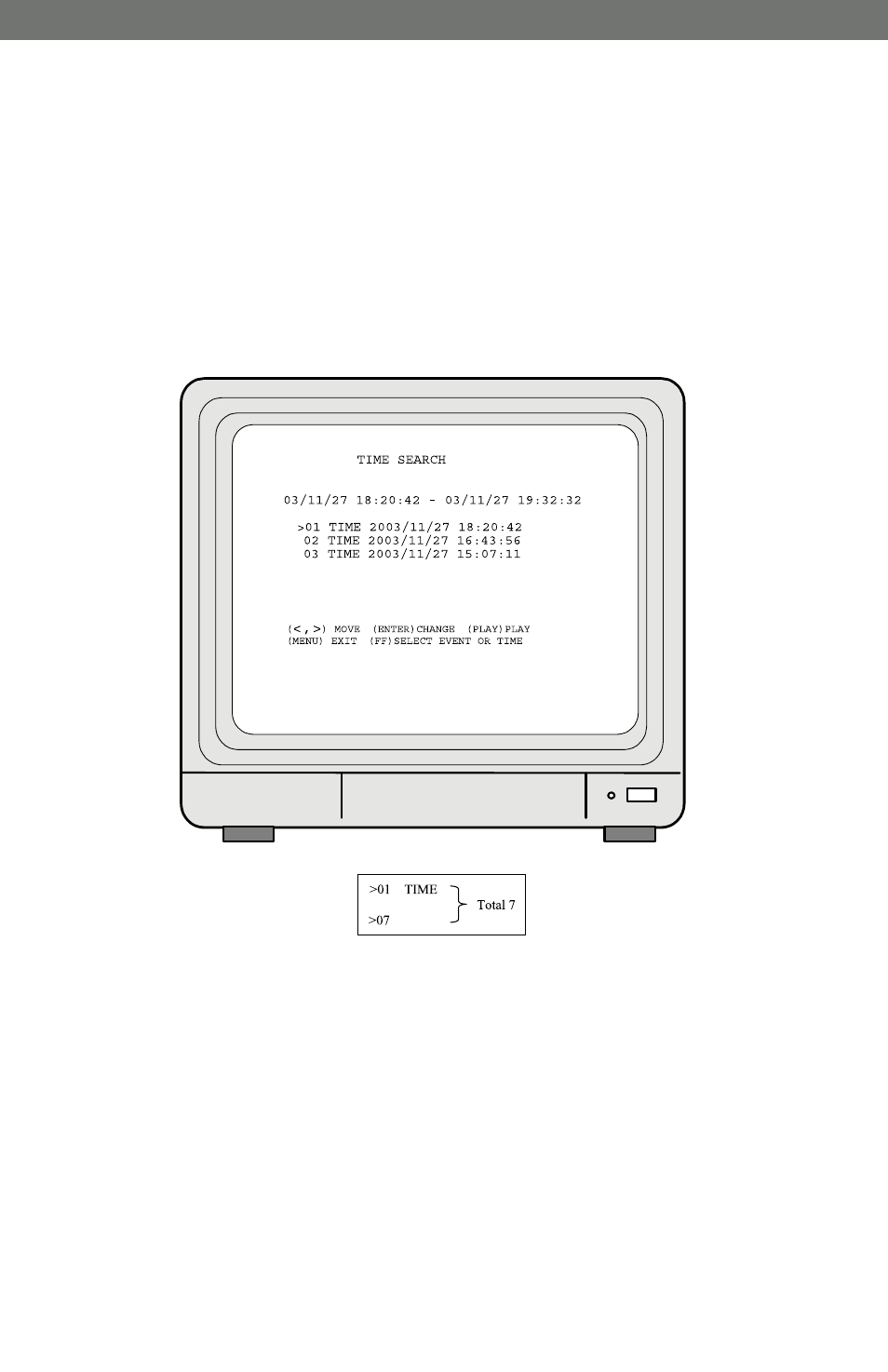

To play your recordings, press PLAY. A list of your recordings will appear after a slight delay.
Use the up and down arrows to find the date and time of your recording. The date format is
YY/MM/DD (Year, Month, Day). Press PLAY again to begin playback. In playback mode you can
also choose to view all 4 of your cameras or an individual camera, if you have recorded in EACH
mode. When the recording is done, press STOP to return to live mode.
During playback, press FF to change the playback speed (FF1, FF2, FF3), or press the REV
button to reverse playback.
