Swann DVR8-2500 - Manual (Page 5)

Front Panel
Back Panel
1. Power Indicator - Lights on
when DVR powered
2. Infra red sensor
3. Hard drive indicator - Lights
when hard drive is active (flashes
when recording, searching etc.)
4. Menu/ESC - Used to enter the
main menu or exit a sub menu.
5. PTZ - Press in live view to see
pop up menu.
6. Next Channel - Press to go to
next channel in live view or playback
7. Previous Channel - Press to go
to previous channel in live view or
playback
8. All - Press to view all channels in
split-screen mode.
9. Rewind - Press to rewind a
recording / press to move cursor left.
10. Pause - Press to pause a record-
ing. During single display mode
press to activate sequence mode.
(AUTOSEQ must be set).
11. Play - Press to begin playing
most recent recording.
12. Fast foward - Press to fast
forward a recording / press to move
cursor right.
13. Stop - Press to stop a recording. 14. Record - Press to begin record-
ing.
Note: will not function if the cameras
are not activated in CAMERA SETUP
AND RECORD SETUP.
15. Up arrow - Move cursor up in
menus.
16. Left arrow - Move cursor left
in menus.
17. Down - Press to move cursor
down.
18. Right arrow - Press to move
cursor right in menus.
19. Select - Press to select an op-
tion/enter a sub menu.
1.Channel Inputs 1 to 8
2. Video Output
3. Audio Input
4. Audio Output 5. USB Mouse Ports
6. USB Port
7. LAN Port
8. VGA port 9. Alarm/Sensor Connections
10. Power Connector

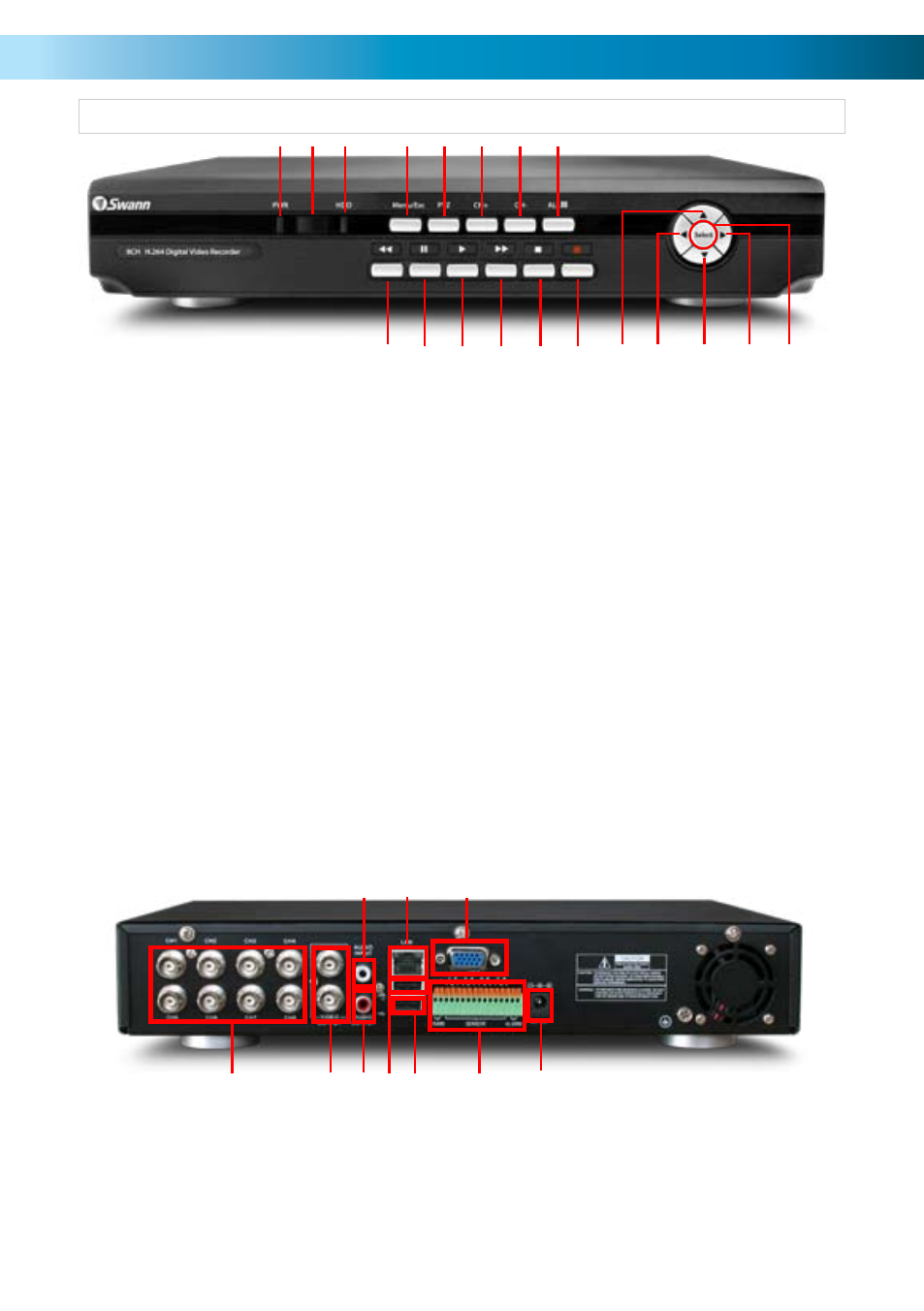

DVR Layout
1 2 3 4 6 7 8
9
5
10 11 12 13 15 16 17 18 19 14
1 2
3
4 5
7
9 6
8
5
10
