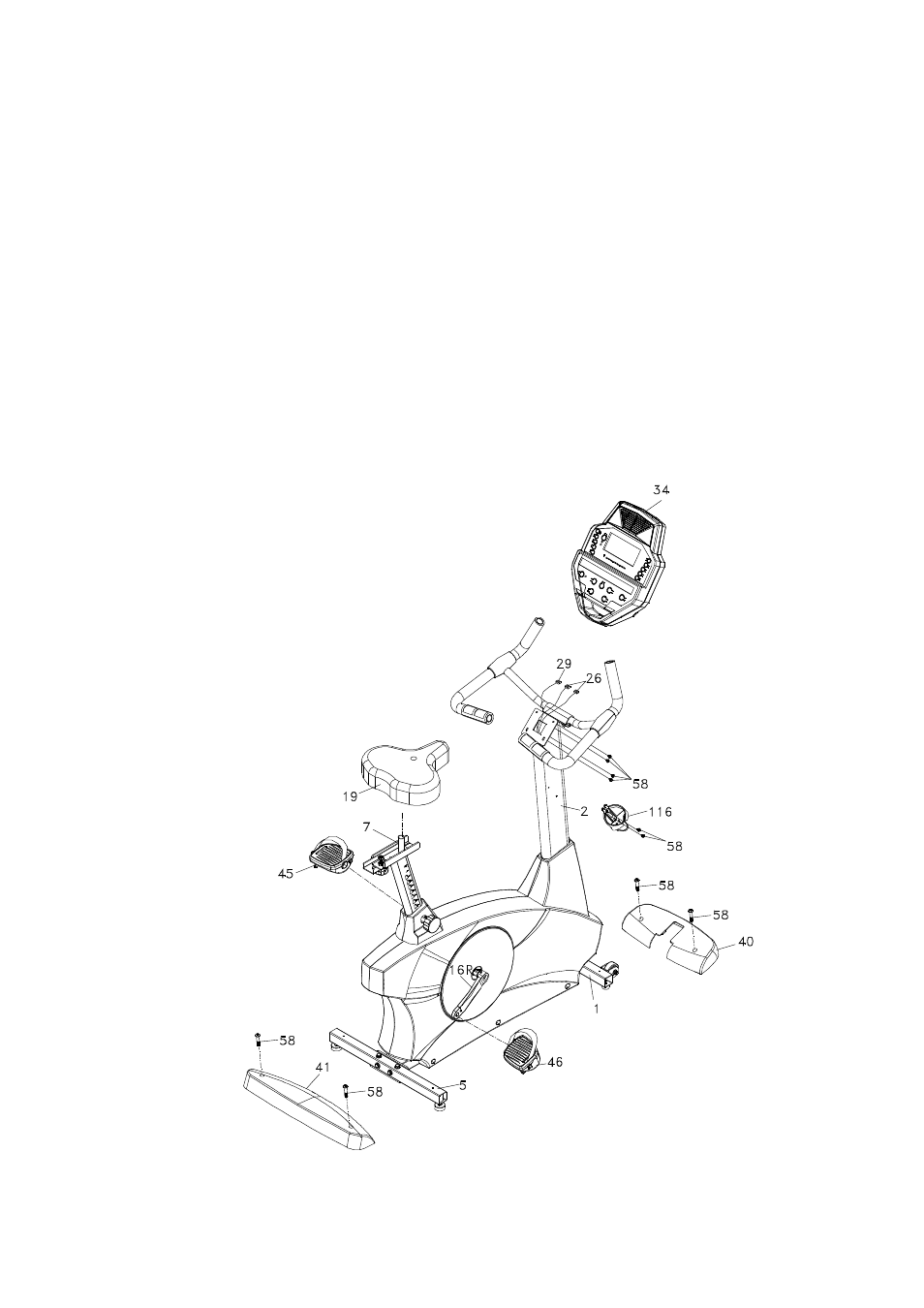

STEP 4: CONSOLE, SEAT, PEDALS AND BEAUTY COVERS ASSEMBLY
1. Insert the Computer Cable (29) and two Hand pulse cables (26) into the connectors in the back
of the Console (34). Install the Console (34) onto the Console Mast (2) with four M5x12mm
Phillips Head Screws (58).
2. Install the Front Stabilizer Cover (40) and the Rear Stabilizer Cover (41) onto the Main Frame (1)
with four M5x12mm Phillips Head Screws (58).
3. Install the Pedals (45 L, 46R) onto the Crank arms (16L, 16R). Remember that the left pedal
has a reverse thread and will be screwed into the crank in the opposite rotation from normal
threads. There is an stamped into the end of the threaded post of the left pedal and an
in the right. Make sure to tighten the pedals as much as you possibly can. It may be necessary
to re-tighten the pedals if you feel a thumping during pedaling the bike. A noise or feeling such
as a thumping or clicking is usually caused by the pedals being too loose.
4. Install the Seat mount slide (7) onto the track on top of the seat tube with the seat post facing
forward. Install the seat (19) onto the seat post.
