STEP 3: CONSOLE MAST ASSEMBLY

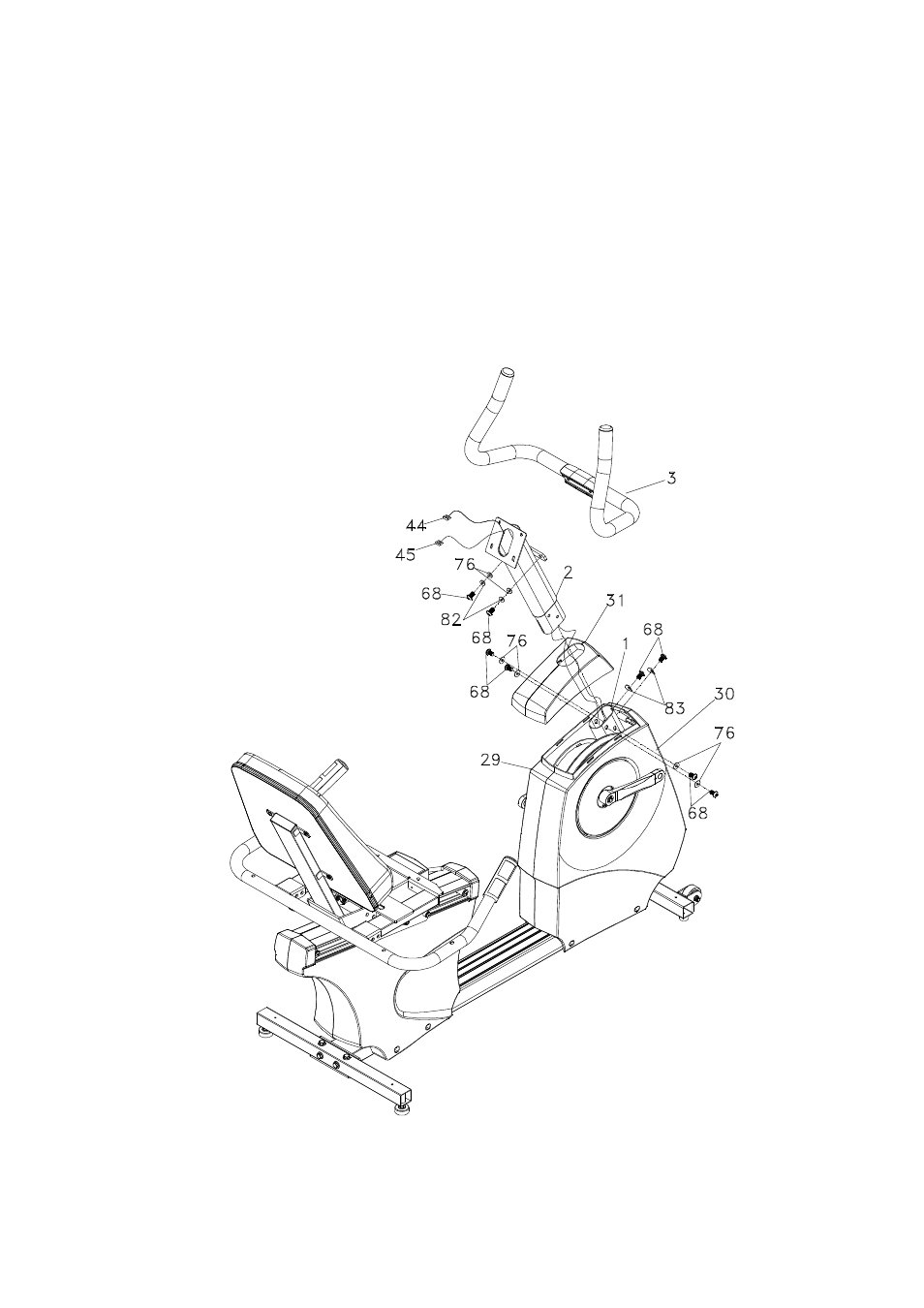

1. Install the console mast cover (31) onto the console mast (2), making sure it is facing the correct
direction as in the picture below. Run the two wire harnesses through the bottom of the console
mast tube and out the top opening.
2. Slide the console mast into the receiving tube (1) being careful to not pinch the wires. Fasten the
console mast with six 3/8 x 5/8 bolts (68) and four 3/8 flat washers (76) on the side bolts and two
3/8 curved washers (83) on the front bolts. Snap the console mast cover in place.
3. Install the front handlebars (3) onto the console mast with two 3/8 x 5/8 bolts (68), 3/8 split
washers (82) and 3/8 flat washers (76).
