Schematic diagram- main section (3/4), Reset, Batt (l) – Sony Ericsson CDX-M620 User Manual

Page 46: Check, Bus on, Cont, Data, Flash w, Close sw, Ina1

CDX-M620/M670

IC B/D

• Refer to page 37 for Waveforms.

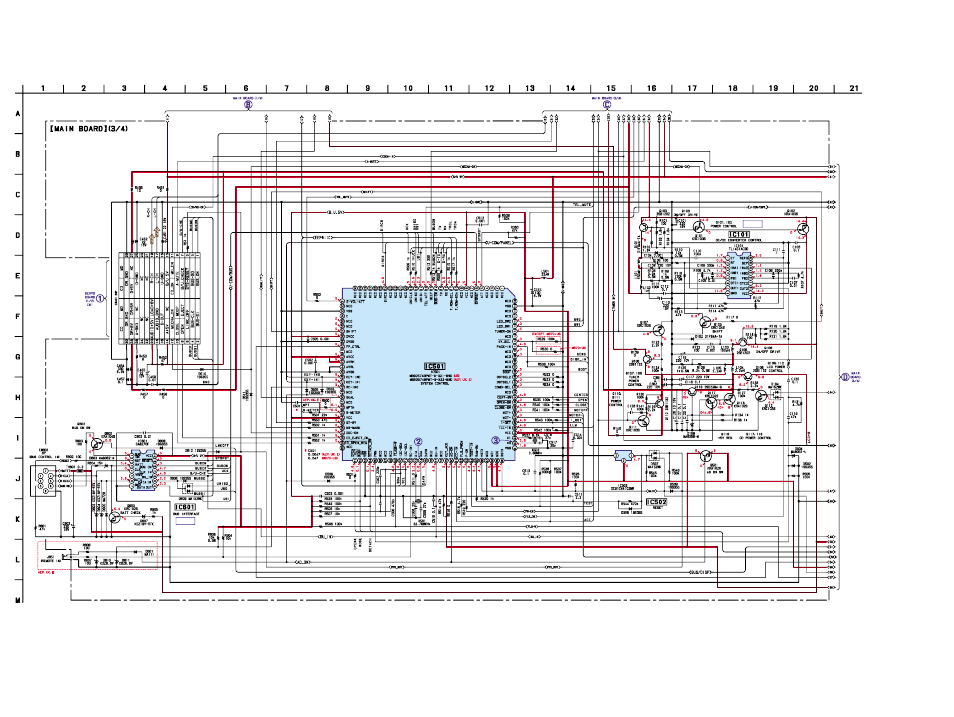

4-12. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — • Refer to page 54 for IC Block Diagrams.

Note:

• Voltage is dc with respect to ground under

no-signal (detuned) condition.
no mark : FM
(

) : AM/MW/LW

> : CD PLAY

(Page 40)

(Page 44)

(Page 45)

(Page 47)
