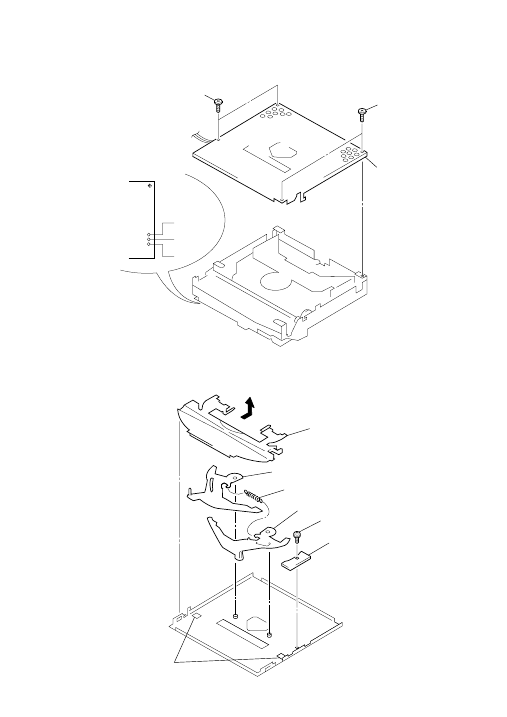

Chassis (t) sub assy, Lever section – Sony Ericsson CDX-M620 User Manual

Page 19

background image

19

CDX-M620/M670

4

claws

2

DISC IN SW board

7

lever (L)

3

tension spring (LR)

6

lever (R)

5

guide (disc)

1

special screw

4

chassis (T) sub assy

3

P 2x3

2

P 2x3

1

Unsolder the

lead wires.

black

red

white

2-9. LEVER SECTION

2-8. CHASSIS (T) SUB ASSY
