9
“
A
SSEMBLY
I
NSTRUCTIONS
”
S

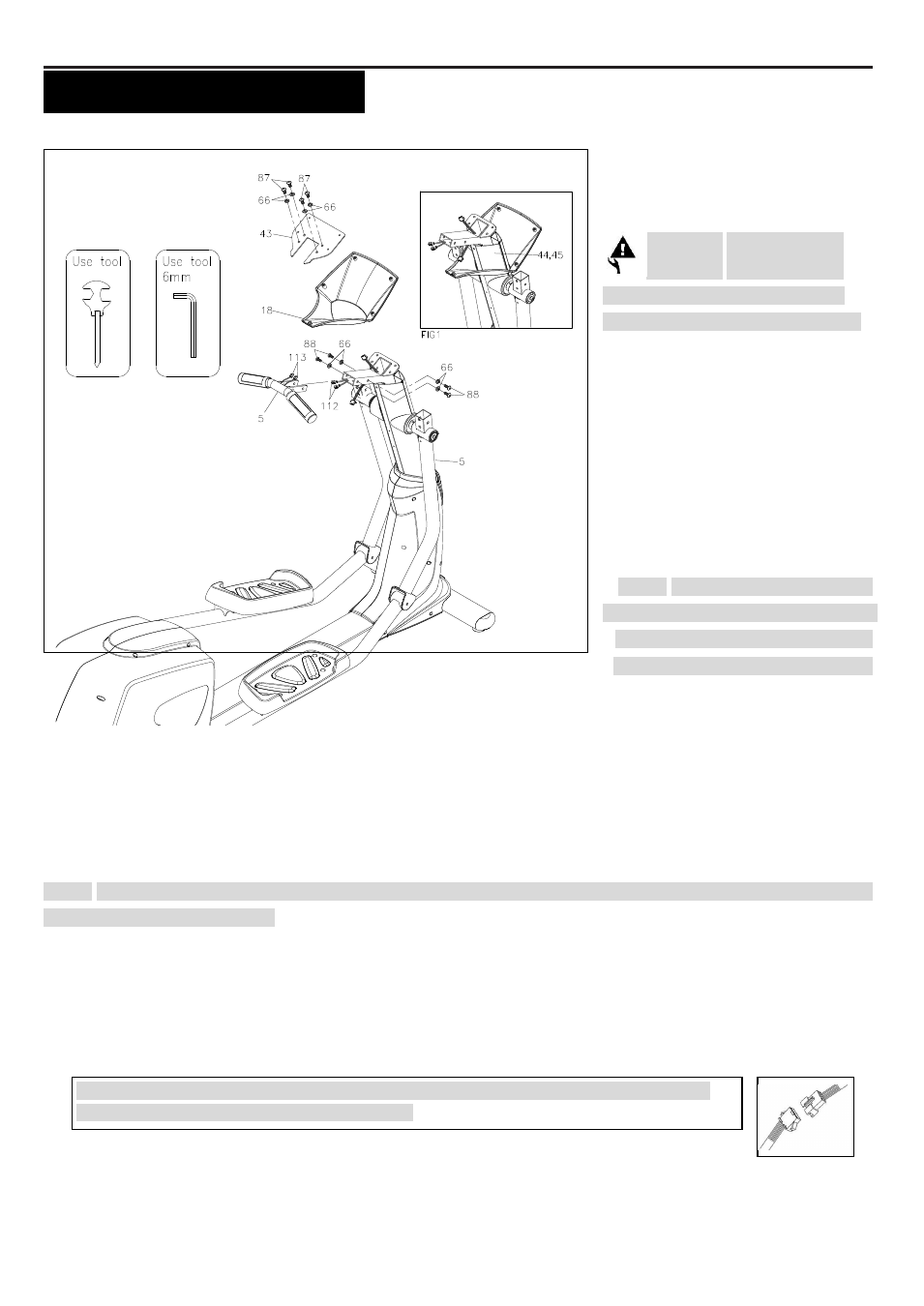

TEP 10
–
Console
Bracket Assembly
CAUTION: Be careful not to
damage the Middle Pulse Sensor
Wire (112) while assembling STEP 9.
Slide the Console Bracket (18) onto
the Upright Post (4) as the FIG1
illustration shows on the top right
corner.
S TEP 11 – Console Fixed
Bracket Assembly
NOTE: For shipping purpose, the 4 x
Button Head Bolts (M8xp1.25x12mm)
(87) and 4 x Lock Washers (M8)(66)
are attached on the Upright Post (4).
a. Remove the 4 x Button Head Bolts (M8xp1.25x12mm)(87) and 4 x Lock Washers (M8)(66) from the Upright Post
(4).
b. Attach the Console Fixed Bracket (43) onto the Upright Post (4) and secure with the 4 x Button Head Bolts
(M8xp1.25x12mm)(87) and 4 x Lock Washers (M8)(66)
S
TEP 12
–
Stationary Handlebar & Wire Assembly
NOTE: For shipping purpose, the Button Head Bolts (M8xp1.25x16mm)(88) and Lock Washers (M8)(66) are attached
on the Stationary Handlebar (5).
a. Remove the 4 x Button Head Bolts (M8xp1.25x16mm)(88) and 4 x Lock Washers (M8)(66) from the Stationary
Handlebar (5).
b. Connect the Middle Pulse Sensor Wire (112) and the Lower Pulse Sensor Wire (113) to the Stationary
Handlebar (5).
c. Insert the Stationary Handlebar (5) into the Upright Post (4) and secure with the 4 x Button
Head Bolts (M8xp1.25x16mm)(88) and 4 x Lock Washers (M8)(66).
NOTE: After connecting the wires ’ pins, slightly and gently pull two sides of wires to test and
make sure whether the wires are fully connected.
