The Victory VSPH boiler installs anyplace with
access to an outside wall or roof for venting --
basement, utility closet or even a garage.
Since it does not require a chimney, it’s ideal for
replacements when an old chimney is
inadequate or in need of repair. It’s engineered
with installer friendly features to speed
installation and service:
Horizontal flue discharge components are factory
installed to save field assembly.
3-inch flue connector with integral adapter for easy
connection to stainless steel venting. Integral self-seal
when used with EZ Seal components.
Condensate drain is built into the flue discharge
assembly.
Drain tube for condensate is factory installed and
pre-configured with water trap.
Quick connect wiring speeds service, prevents
miswiring.
Integrated boiler control with built-in diagnostics
engineered by Slant/Fin to optimize VSPH boiler
operation. Diagnostic indicator lights speed trouble-
shooting.
Intermittent pilot spark ignition saves energy.
Field convertible gas valve for natural-to-propane gas.
Junction box for line voltage facilitates wiring of
shut-off switch.
Pressure switch functions at all altitudes.
Controls, circulator pump, inducer and other “trim” are
top quality brand names that are widely available to
heating professionals and easy to service.
Pressure-temperature gauge located for easy viewing.
Circulator harness is long enough for supply or return
mounting.
3-inch combustion air intake connector for PVC
or galvanized pipe.

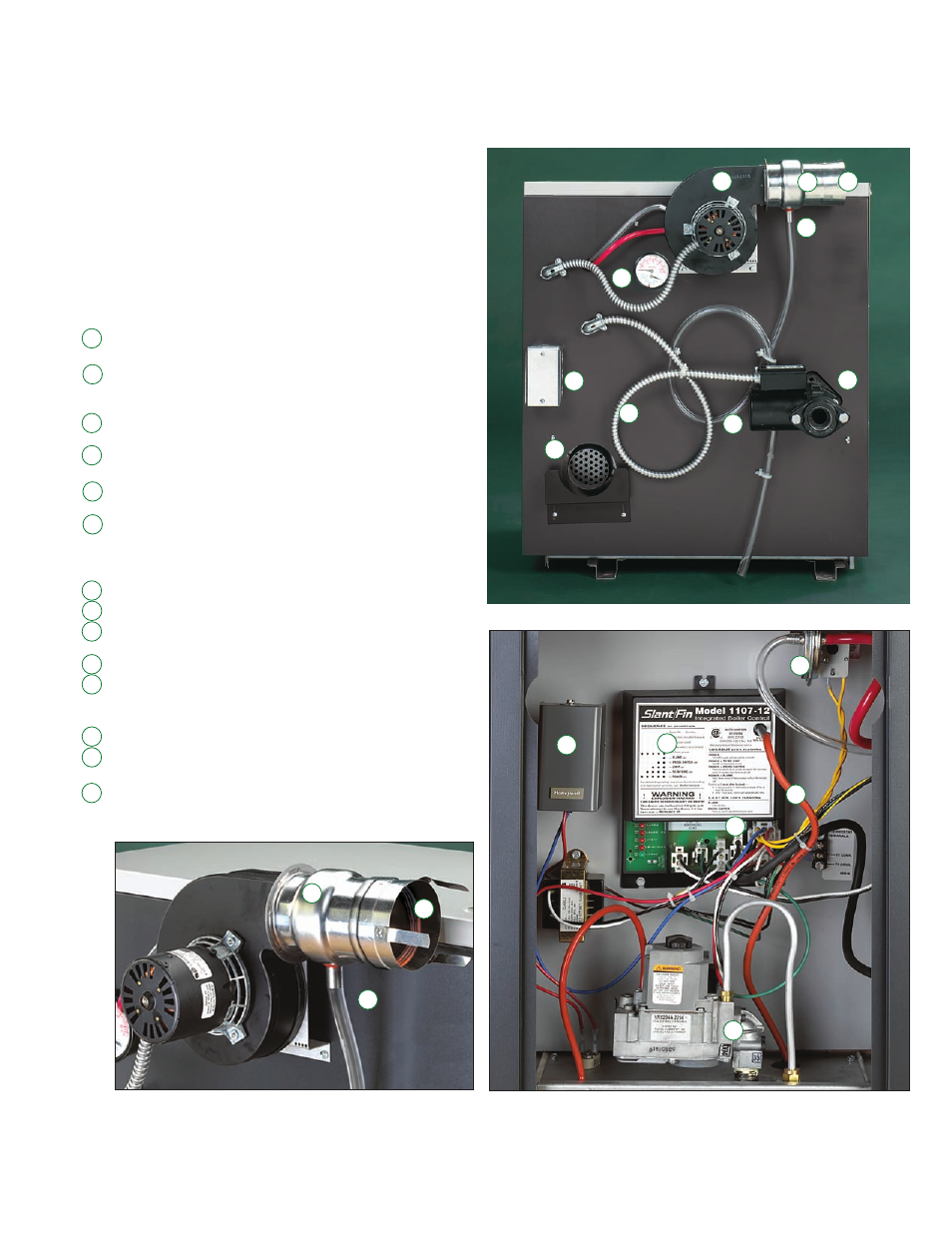

Installer-friendly features
speed installation and service
Condensate drain is built into flue
discharge assembly.
Easy to access up-front controls.
Lift-off front cover.
