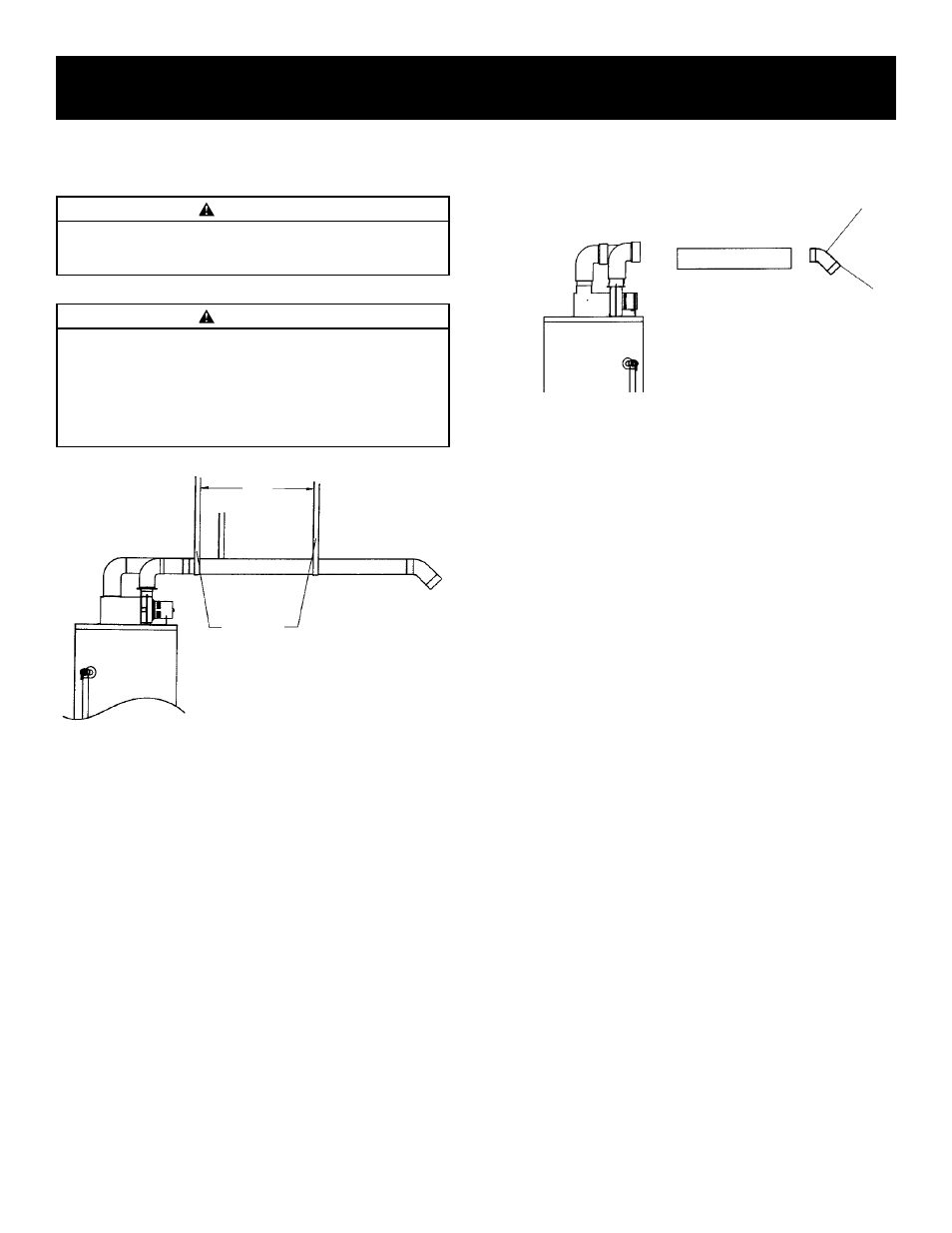

Installing the New Water Heater (cont’d)

14

Horizontal runs must be securely supported at 3

1

2

foot

intervals and vertical runs supported at 5 foot intervals.

Venting (cont’d)

WARNING

Be sure vent pipe is properly connected to prevent

escape of dangerous flue gases which could cause dead-

ly asphyxiation.

WARNING

Chemical vapor corrosion of the flue and vent system

may occur if air for combustion contains certain chem-

ical vapors. Spray can propellants, cleaning solvents,

refrigerator and air conditioner refrigerants, swimming

pool chemicals, calcium and sodium chloride, waxes,

bleach and process chemicals are typical compounds

which are potentially corrosive.

VENTING THROUGH AN OUTSIDE WALL

In the carton is supplied:

1. Two 3

″ inlet and outlet PVC Schedule 40 - 45° vent caps.

2. A 3

″ ABS Schedule 40 - 90 street ell; used to connect the out-

let vent pipe to the water heater when the outlet vent pipe is

to be turned horizontally directly off the blower.

3. A 5‘ section of 3

″ ABS Schedule 40 outlet vent pipe (more may

be required and must be supplied locally).

1. The water heater requires its own (separate) venting

system.

2. Only 3

″ ABS Schedule 40 piping and fittings are acceptable

materials on the first five feet of the outlet vent system.

3. 3

″ PCV, ABS, or CPVC Schedule 40 piping and fittings are

acceptable materials for the inlet vent system and for the out-

let vent system after the first five feet.

4. It cannot be connected to existing vent piping or

chimney.

5. When venting through an outside wall, the vents must termi-

nate horizontally to the outdoors.

3

″ PVC SCHEDULE

40 90° STREET

INLET ELBOW

REQUIRED

5' SCHEDULE

40 ABS OUTLET

PIPE SUPPLIED

SCHEDULE

40 PVC INLET PIPE

REQUIRED

ONE 3

″ SCHEDULE

40 PVC 45° OUTLET

ELBOW SUPPLIED

ONE 3

″ SCHEDULE

40 PVC 45° INLET

ELBOW SUPPLIED

3

″ ABS SCHEDULE 40

90° STREET

OUTLET ELBOW

SUPPLIED
