3

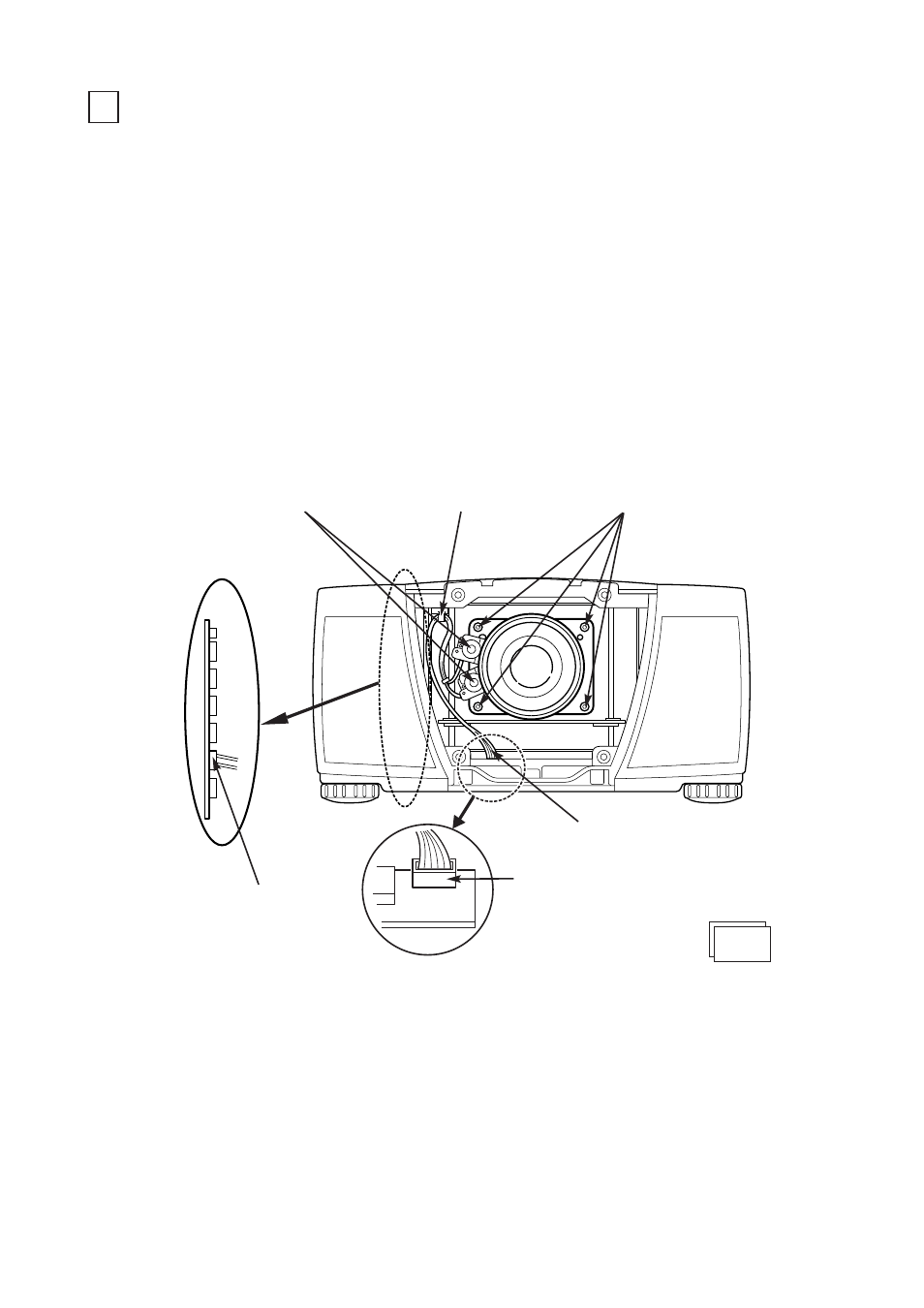

REMOVE THE LENS (See Figure-5 and 6)
Disconnect the Lens Shift connector "K16L" from
the circuit board on cabinet left side.
Disconnect the Zoom and Focus connector "K16J"
from the circuit board.
Remove the lens motor lead from lead holder.
Remove screws-C (4 screws) which fastens the
lens and remove the lens. Use the driver (3 mm,
Green) included with the lens to remove the
screws.
1 .
2.
Be careful not to drop the lens when removing the
screws.
-3-
3.
CONNECTOR "K16L"
LENS
MOTOR LEAD
HOLDER
CONNECTOR "K16J"
LENS MOTOR LEAD
SCREW "C"
CIRCUIT BOARD ON
CABINET LEFT SIDE
Fig-5
