Getting Started
Step 1: Hooking up the system

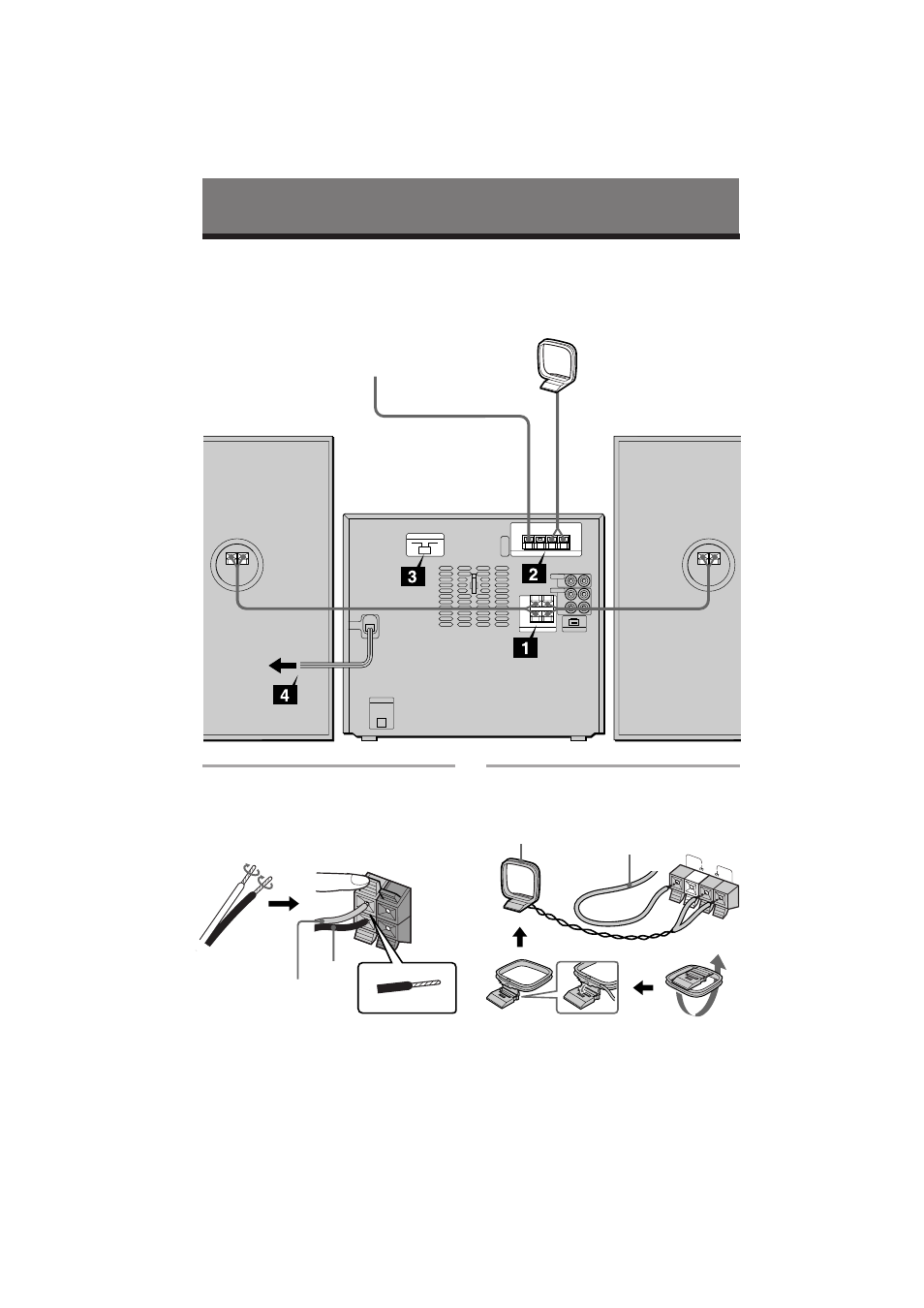

Do the following procedures 1 and 2 to hook up your system using the supplied cords and
accessories. To complete the setup, do steps 3 and 4 also.
Left speaker Right speaker
DHC-MD5
rear panel
FM aerial
AM loop aerial
Connect the speakers.
Connect the speaker cords to the
SPEAKER jacks of the same colour .
Keep the speaker cords away from the
aerials to prevent noise.
1
R L
Red (‘)
Black (’)
Connect the FM/AM aerials.
Set up the AM loop aerial, then connect
it.
FM 75 Ω
AM
2
AM loop aerial
Extend the FM lead
aerial horizontally.
