4.9 OPTIONAL CMP25 RAM+ MIC INSTALLATION
1. Connect the RAM+ MIC Cable to the RAM MIC CONNECTOR on the
rear panel, then tighten the Cable Nut (See Figure 3).
2. Referring to Figure 3, make a 1.2” (30 mm) hole in the wall, then insert
the RAM+ MIC Cable into this hole. Connect the Gasket and Mount Base
to the RAM+ MIC Cable Connector using the Nut.
3. Drill the four Screw holes (approx. 2 mm) on the wall, then install the
Mounting Base to the wall using four screws.
4. Put the Rubber Cap on to the Nut. The installation is now completed.

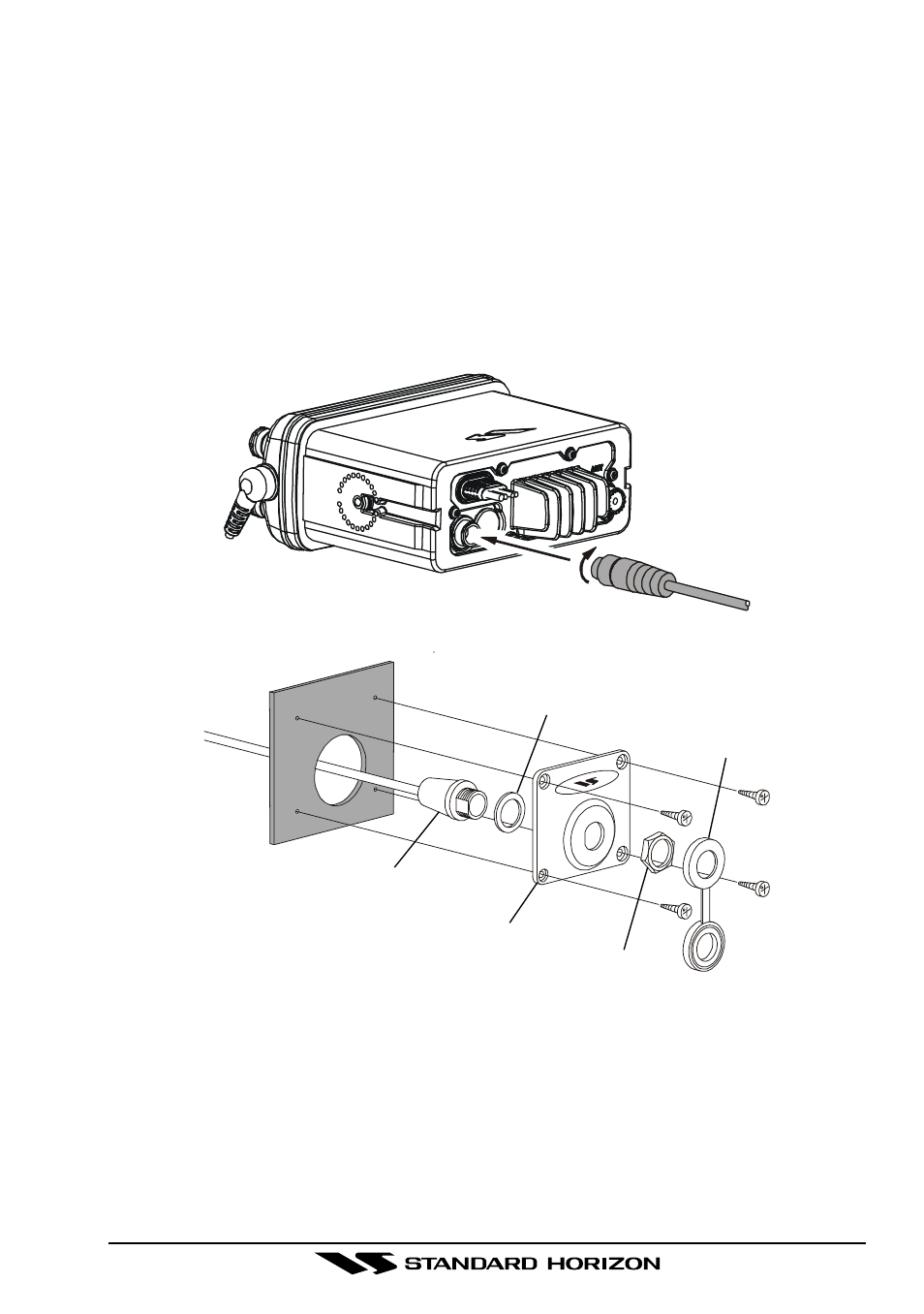

Figure 3. CMP25 RAM+ MIC Instllation
Wall
Gasket
Mounting Bracket
RAM MIC Cable
Cap
Nut
