4.8 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION
1. Make a rectangular template for the flush mount measuring 2-5/8” H x
6-5/8” W.
2. Use the template to mark the location where the rectangular hole is to be
cut. Confirm the space behind the dash or panel is deep enough to ac-
commodate the transceiver (at least 6 inches deep).
There should be at least 1/2 inch between the transceiver’s heatsink and
any wiring, cables or structures.
3. Cut out the rectangular hole and insert the transceiver.
4. Fasten the brackets to the sides of the transceiver with the lock washer
nut combination; so that the mounting screw base faces the mounting
surface (see Figure 2).
5. Turn the adjusting screw to adjust the tension so that the transceiver is
tight against the mounting surface.

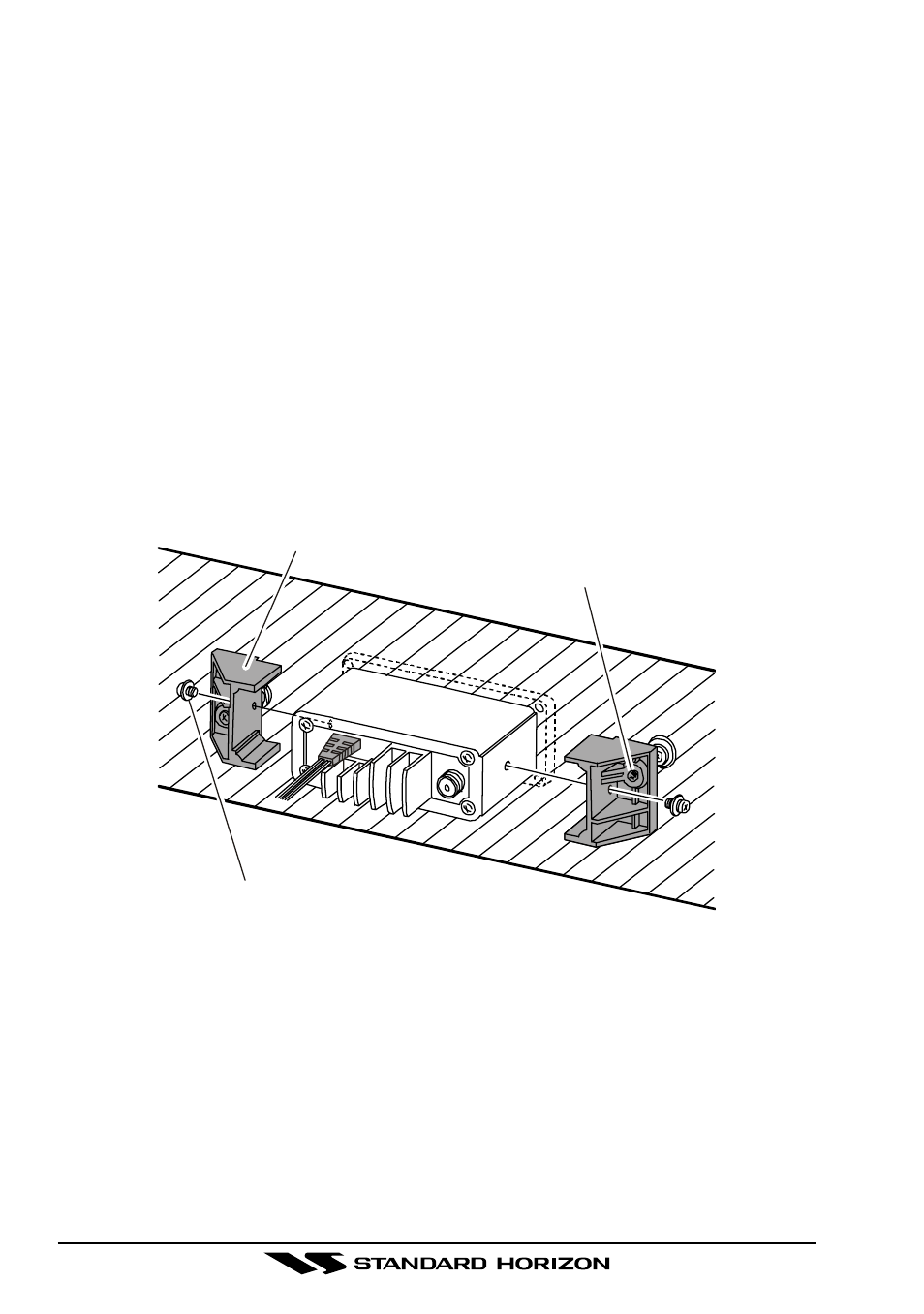

Figure 2. MMB-84 Flush Mount Instllation
Bracket
Adjusting Screw
Lock-washer nut combination
