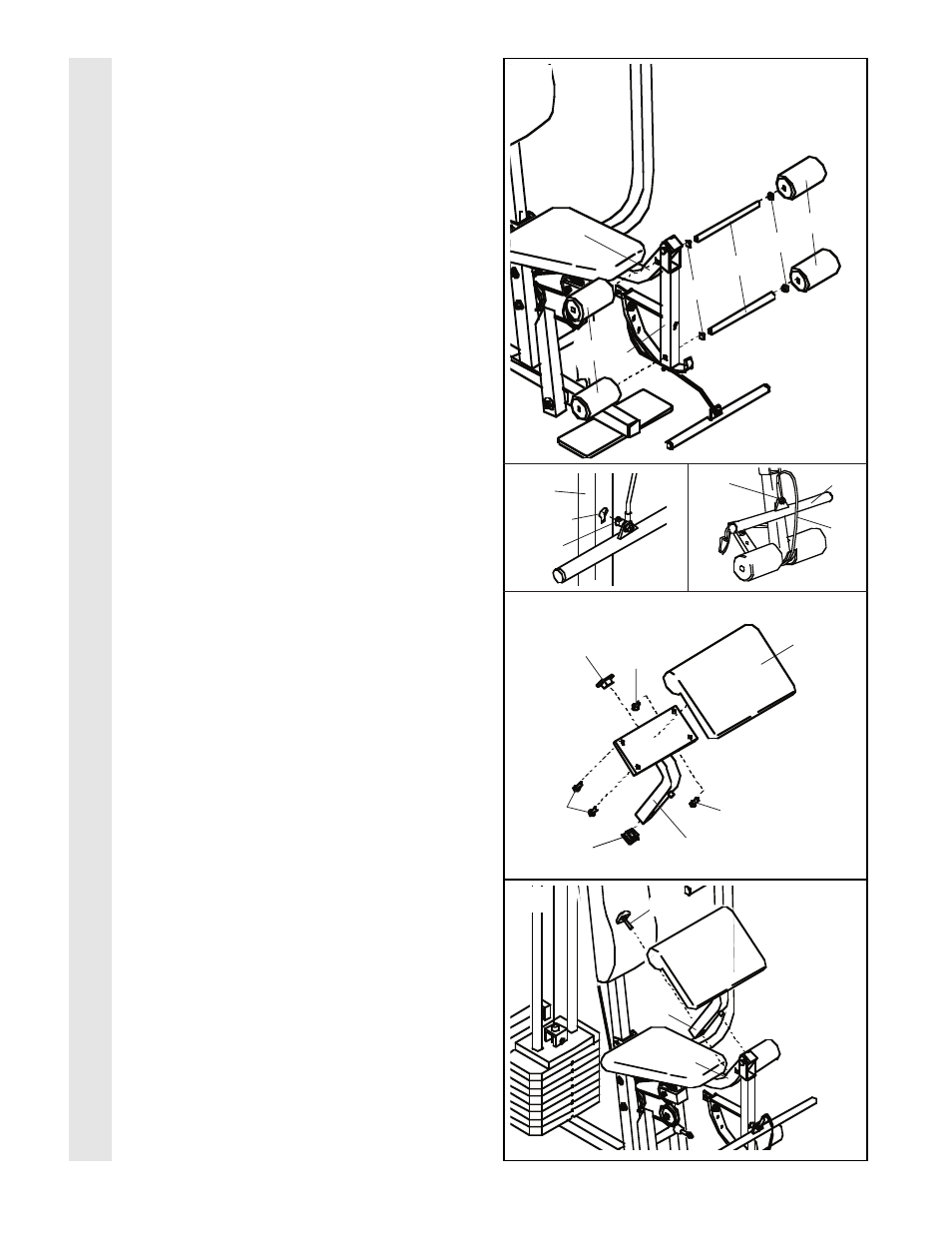

33. Press 3/4” Round Inner Caps (34) into the

ends of both 12 1/2” Pad Tubes (28).

Insert one 12 1/2” Pad Tube (28) into the Seat
Frame (36). Slide a 5 1/2” Pad (30) onto each
end of the Pad Tube.

Insert the other 12 1/2” Pad Tube (28) into the
Leg Lever (29). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.

See the left inset drawing. Insert the head of
the 5/16” x 1 1/4” Carriage Bolt (90) into the
keyhole in the Leg Lever (29).

Be sure that

the shoulder of the Carriage Bolt is firmly
seated in the square part of the keyhole.
See the right inset drawing.

Orient the Short

Cable (35) and the Curl Bar (86) as shown.
Tighten the indicated 5/16” Nylon Locknut (3).
Do not overtighten the Nylon Locknut. This
is the storage position for the Curl Bar.

34. Attach the Curl Pad (82) to the Curl Frame

(84) with four 1/4” x 1/2” Screws (18).

Insert a 1 1/2” Square Inner Cap (32) into
each end of the Curl Frame (84).

Note: These

Square Inner Caps may come pre-assem-
bled.

35. Attach the Curl Frame (84) to the Seat Frame

(36) by inserting the pin on the Curl Frame
into the upper hole in the Seat Frame. Secure
the Curl Frame with the Curl Knob (85).

SEA

T ASSEMBL

Keyhole
