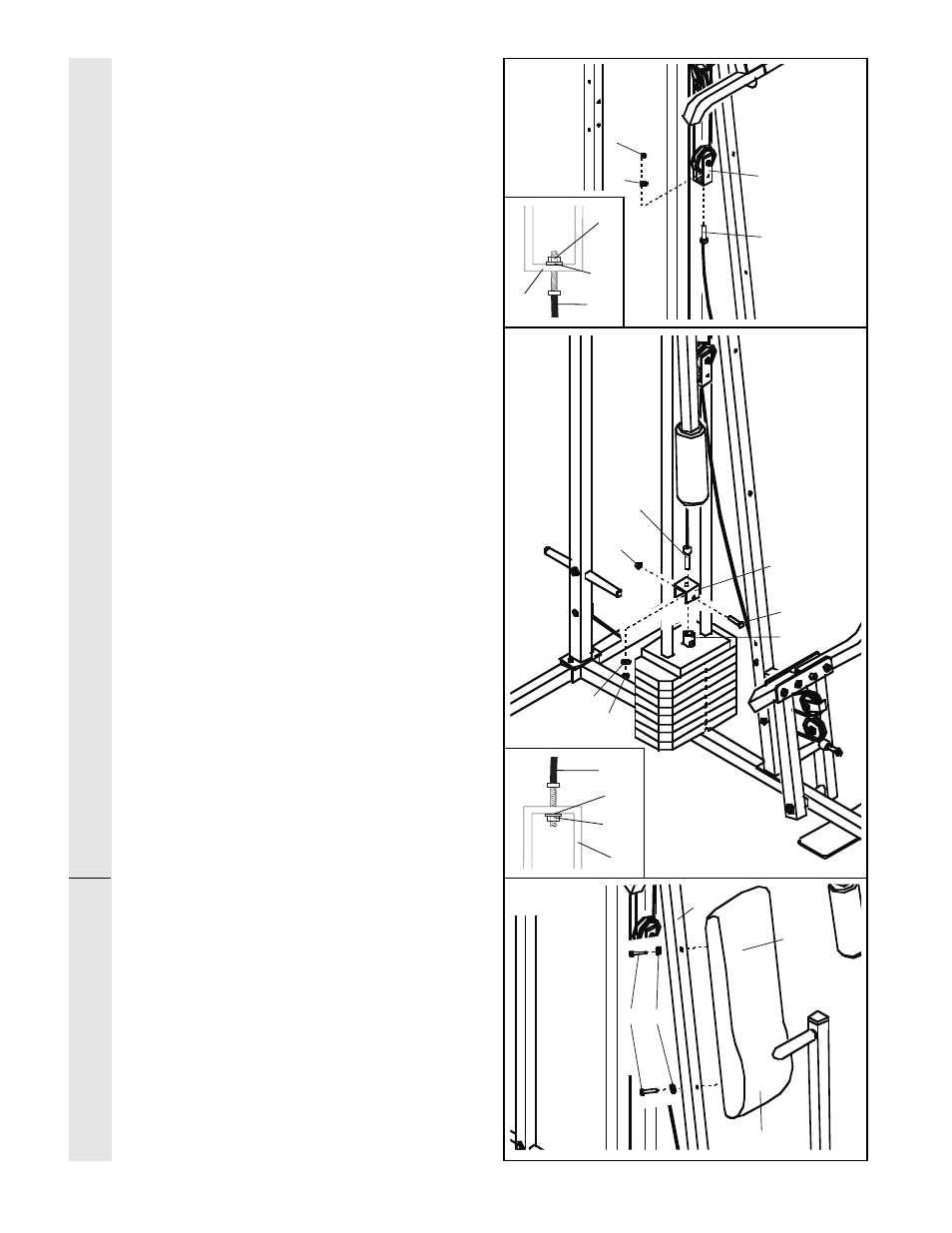

26. Attach the end of the Medium Cable (58) to
the Long “U”-Bracket (57) with a 1/4” Nylon
Locknut (2) and a 1/4” Flat Washer (10).
Do
not completely tighten the Nylon Locknut.
It should be threaded onto the end of the
Cable so only a couple of threads are
showing above the Locknut, as shown in
the inset drawing.
27. Attach the Long Cable (23) to the Small “U”-
Bracket (67) with a 1/4” Nylon Locknut (2) and
a 1/4” Flat Washer (10).
Do not completely
tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a
couple of turns, as shown in the inset
drawing.
Attach the Small “U”-Bracket (67) to the
Weight Tube (63) with the 5/16” x 1 3/4” Bolt
(72) and a 5/16” Nylon Locknut (3).
28. Attach the Backrest (41) to the Front Upright
(42) with two 1/4” x 2 1/2” Screws (43) and
two 1/4” Flat Washers (10).
The Backrest
must be turned so the thickest end is at
the bottom.
13
SEA
T ASSEMBL
Y
26
10
57
58
2
27
72
63
10
2
67
23
3
41
Thickest End
42
28
10 43
CABLE ASSEMBL
Y
58 57
2
10
23
67
2
10
