19
Front Panel
Cha
p
te
r 2
Name
s
an
d F
unc
tions
of
P
a
rts

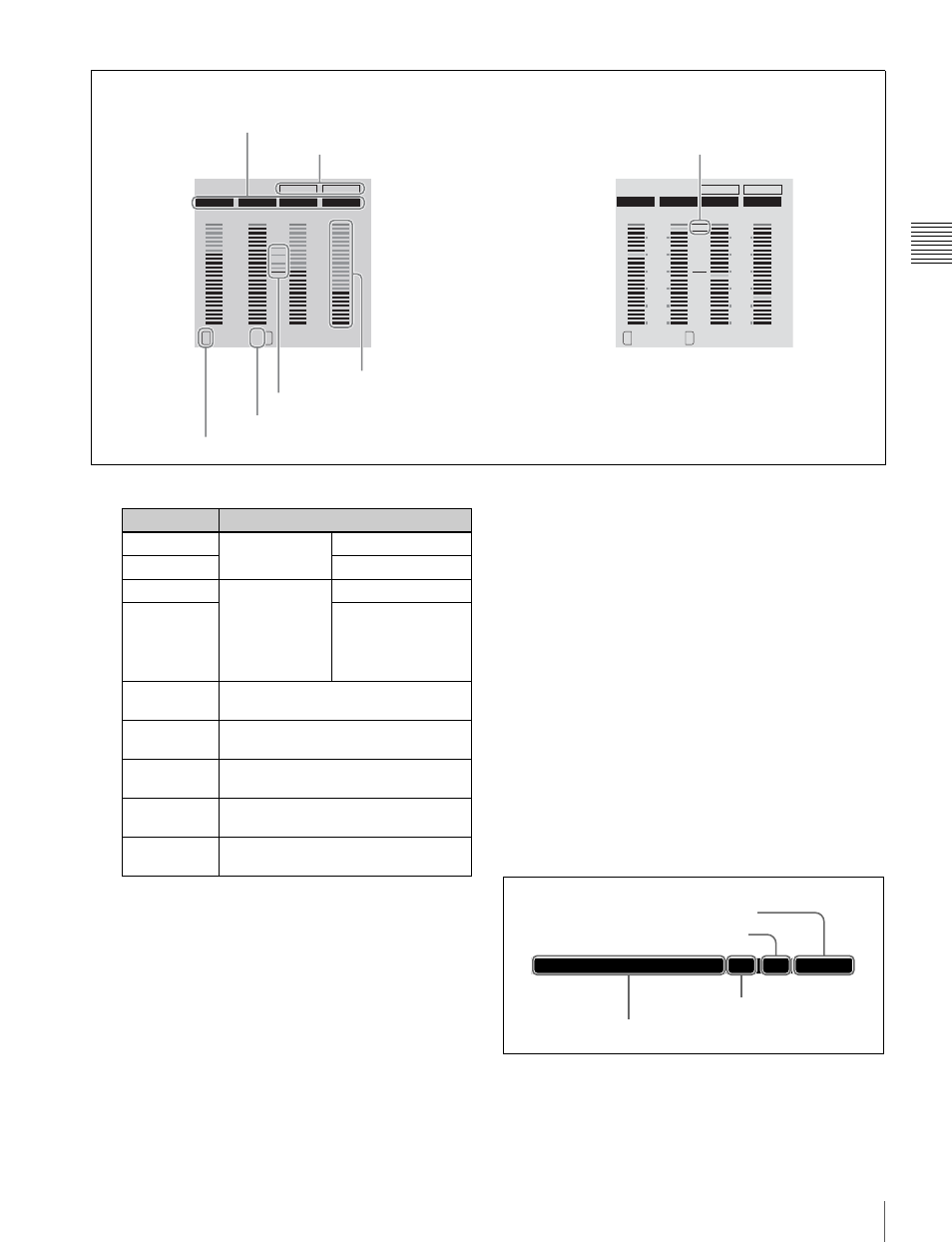

A Input signal display: Displays the audio input signal.
.
B Data indication: Appears when the input signals are
non-audio signals.
C Monitor channel: Displays the audio monitoring
channels set with MONITR L and MONITR R on
page P2 AUDIO of the function menu (see page 43).
D Audio channel: Displays the audio channels.
Also indicates preset or variable mode by its color
(see page 14).
White: Preset mode
Green: Variable mode
E Reference level: Displays the reference level for
recording as set in the maintenance menu.
F Level bars: Display the audio recording or playback
levels of channels 1 to 8. The OVER indicators light
when the audio level exceeds 0 dB.
G Meter display mode: Displays the audio level meter
display mode selected with AU METER on page P4
AUDIO of the function menu (see page 44).
b Function menu
Use the PAGE/HOME button to display this menu, and to
switch between the pages (HOME, P1 to P7, (P8)
1)
,
(HOME2)
1)
) of the menu. Each page has three to six
setting items. Press the corresponding button to change a
setting.
1) If a menu item is assigned using maintenance menu item M38: F-KEY
CONFIG
For details, see page 42 “Basic Operations of the
Function Menu” in Chapter 3.
c Clip information
Displays clip information.
0
-10
-20
-30
-60
-40
1 2
0
-10
-20
-30
-60
-40
3 4 L R
AES/EBU AES/EBU HD-SDI HD-SDI
DATA DATA
2
1
0
-1
-2
2
1
0
-1
-2
1 2 3 4 L R
AES/EBU AES/EBU HD-SDI HD-SDI
DATA DATA
FINE
A Input signal display
B Data indication
D Audio channel
E Reference level
F Level bar
C Monitor channel
G Meter display mode
Meter display mode: FULL Meter display mode: FINE
Display Input signal
ANA-1 Analog audio
signal Channel 1, 3
ANA-2 Channel 2, 4
MIC-1 Input signal from
the microphone
connected to
ANALOG
AUDIO INPUT
connector Channel 1, 3
MIC-2 Channel 2, 4
AES/EBU AES/EBU format digital audio signal
(flashes when there is no input signal)
HD-SDI HDSDI audio signal (flashes when
there is no input signal)
SD-SDI SDSDI audio signal (flashes when
there is no input signal)
SG Test signal from the internal signal
generator
No indication Undefined audio signal, or no audio
input
PDW-HD1500 001/001 000:00
All remaining clips or clip list playback time
Total number of clips recorded on disc
Clip name
Number of current clip
