Specifications
FCB-EX48C/EX48CP
Image sensor
1
/
4
type IT CCD (EXview HAD)
Picture elements FCB-EX48C: Approx. 380K pixels
(768 (H)
× 494 (V))
FCB-EX48CP: Approx. 440K pixels
(752 (H)
× 582 (V))
Horizontal resolution
NTSC: 470 TV lines (WIDE end)
PAL: 460 TV lines (WIDE end)
Lens
18
× zoom
F= 4.1 mm (WIDE) to 73.8 mm
(TELE), F1.4 to F3.0
Zoom movement speed
Optical WIDE/Optical TELE 2.1 s
Optical WIDE/Digital TELE
3.7 s
Digital WIDE/Digital TELE
1.7 s
∞ to Near
0.5 s
Digital zoom
12
Ч (216Ч with optical zoom)
Angle of view (H)
48 degree (WIDE end) to 2.8 degree
(TELE end)
Min. working distance
290 mm (WIDE end), 800 mm
(TELE end)
Sync system
Internal/External (V-Lock)
Min. illumination
0.7 lx (F1.4,
1
/
60
s (NTSC) or
1
/
50
s
(PAL))
0.1 lx (F1.4,
1
/
4
s (NTSC) or
1
/
3
s
(PAL))
Recommended illumination
100 to 100,000 lx
S/N ratio
50 dB or more
Back light compensation
ON/OFF
Electronic shutter speed
FCB-EX48C:
1
/
1
to
1
/
10,000
s
(22 steps)
FCB-EX48CP:
1
/
1
to
1
/
10,000
s
(22 steps)
White balance
AUTO, ATW, Indoor, Outdoor,
One Push WB, Manual WB
Gain
Auto/Manual (–3 to 28 dB, 2 dB
steps)
Aperture control 16 steps
Preset
6-POSITIONS
Serial interface
VISCA protocol (TTL/CMOS)
9.6 Kbps, 19.2 Kbps, 38.4 Kbps,
Stop bit, 1/2 bit
Video Output
VBS: 1.0 Vp-p (Sync negative),
Y/C Output
Storage temperature/Humidity
–20 to 60 °C (–4 to 140 °F)/20 to 95 %
Operating temperature/Humidity
0 to 50 °C (32 to 122 °F)/20 to 80 %
Power requirements/Power consumption
6 to 12 V DC/1.5 W (2.5 W)
Weight
230 g (8.1 oz.)
Dimensions
50.0
Ч 57.5 Ч 88.5 mm
(2
Ч 2
3
/
8
Ч 3
1
/
2
in.) (w/h/d)
Design and specifications are subject to change
without notice.

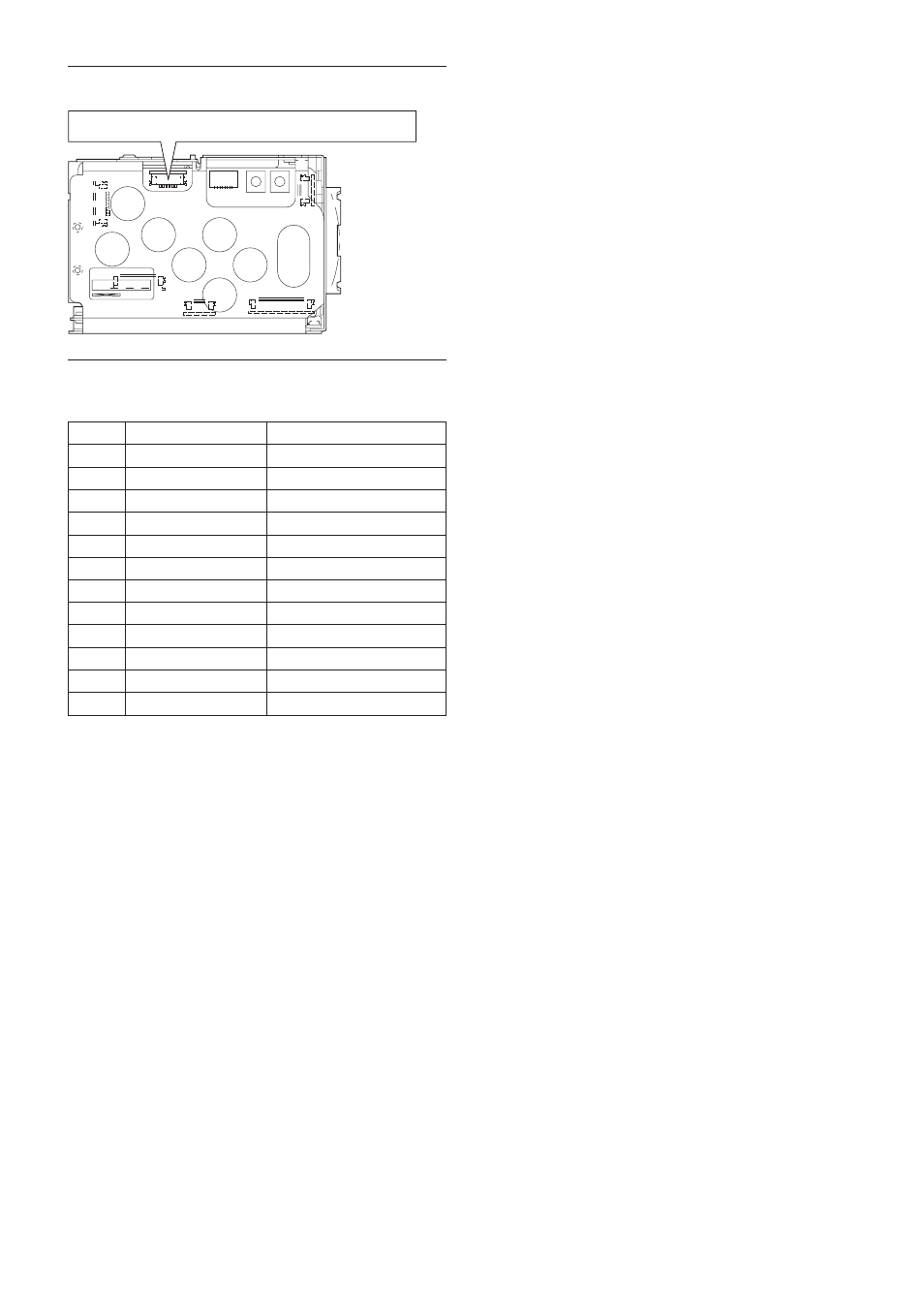

CN601
MOLEX 52689-1293
Pin No.
Name
Level
1
GND
2
GND
3
KEY AD0
4
KEY AD1
5
KEY AD2
6
KEY AD3
7
KEY AD4
8
KEY AD5
9
KEY AD6
10
KEY AD7
11
NC
12
STROBE
qx qz 0 9 8 7 6 5 4 3 2 1
CN601
