43
Transmitters
Microphones

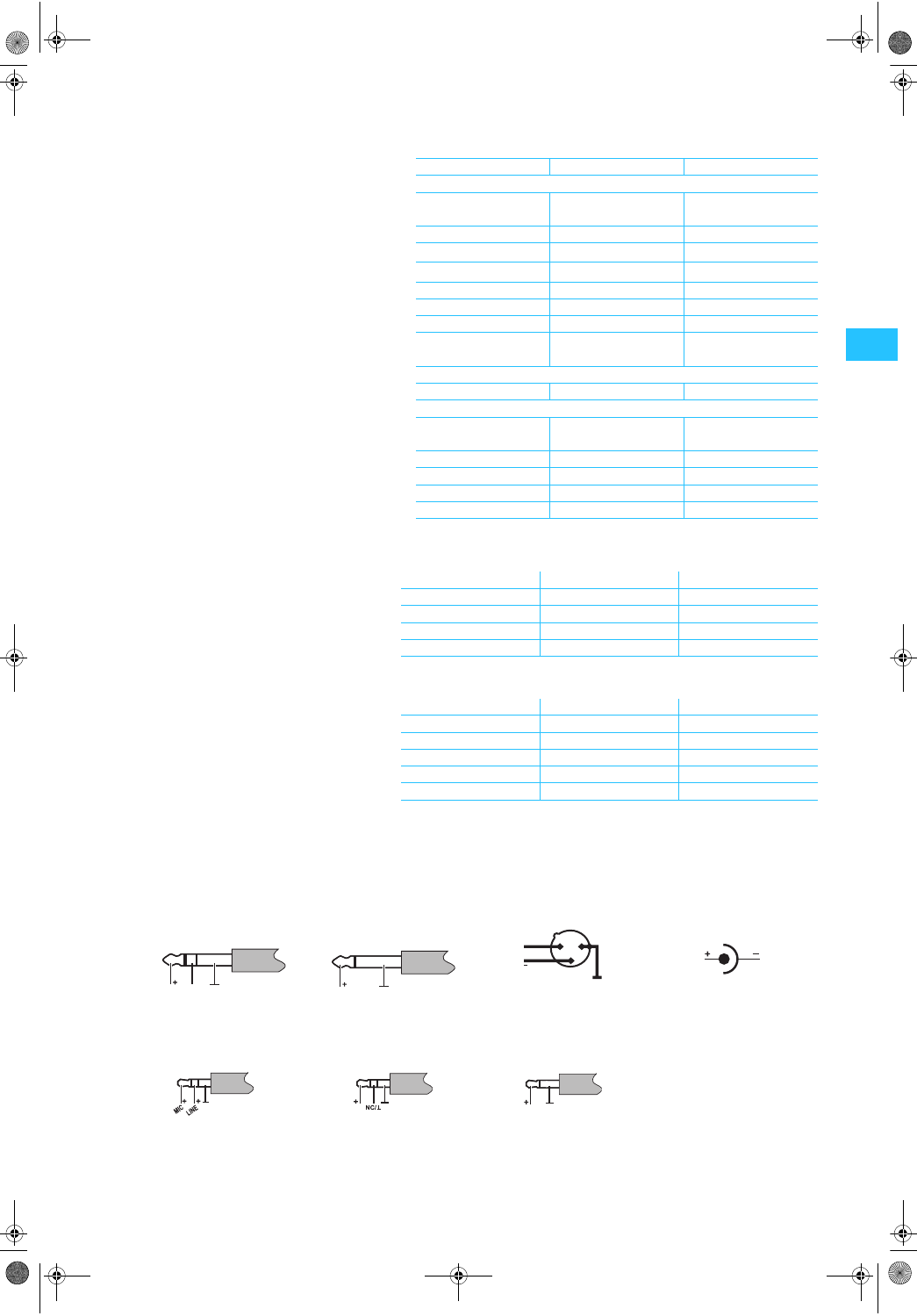

Connector assignment
RF characteristics SK 100 G2 SKP 100 G2 SKM 100 G2
RF output power at 50
Ω
typ. 30 mW
AF characteristics
Max. input voltage (at peak deviation)
Microphone 1.8 V
rms
, unbalanced 1.2 V
eff
, unbalanced –
Line 2.4 V
rms
– –
Input impedance
Microphone 10 k
Ω
, unbalanced 10 k
Ω
, unbalanced –
Line 1 M
Ω
– –
Overall device
Power supply
2 AA size batteries, 1.5 V
Nominal voltage 2.4 V 2.4 V 2.4 V
Max. power consumption at nominal voltage
≤
170 mA
Power consumption with
switched-off transmitter
≤
250 μA
≤
250 μA
≤
250 μA
Operating time (with batteries) > 8 h > 8 h > 8 h
Operating time (with BA 2015 accupack) > 8 h > 8 h > 8 h
Dimensions [mm] 82 x 64 x 24 105 x 43 x 43
∅
50 x 225
Weight (incl. batteries) approx. 158 g approx. 195 g approx. 450g
ME 2 ME 3 ME 4
Transducer principle condenser condenser condenser
Sensitivity 20 mV/Pa 1.6 mV/Pa 40 mV/Pa
Pick-up pattern omni-driectional super-cardioid cardioid
Max. SPL 130 dB SPL 150 dB SPL 120 dB SPL
Microphone heads
MD 835 MD 845 ME 865
Transducer principle dynamic dynamic condenser
Sensitivity 1.5 mV/Pa 1 mV/Pa 3 mV/Pa
Pick-up pattern cardioid super-cardioid super-cardioid
Max. SPL 150 dB SPL 154 dB SPL 144 dB SPL
Color of identification ring green blue red
EM 100 G2:
¼ ’’ (6.3 mm) stereo jack
plug, unbalanced
EM 100 G2:
¼ ’’ (6.3 mm) mono jack
plug, unbalanced
EM 100 G2:
XLR-3F connector, balanced
EM 100 G2:
DC connector for
power supply
SK 100 G2:
3.5 mm jack plug
EK 100 G2:
3.5 mm stereo jack plug,
unbalanced
EK 100 G2:
3.5 mm mono jack plug,
unbalanced
NC/GN D
2 1
3
+
