Sennheiser EW100 G2 - Manual (Page 21)

21
Changing the microphone head
̈
First remove the batteries/accupack as described above and leave the
radiomicrophone open.
̈
Unscrew the sound inlet basket.
̈

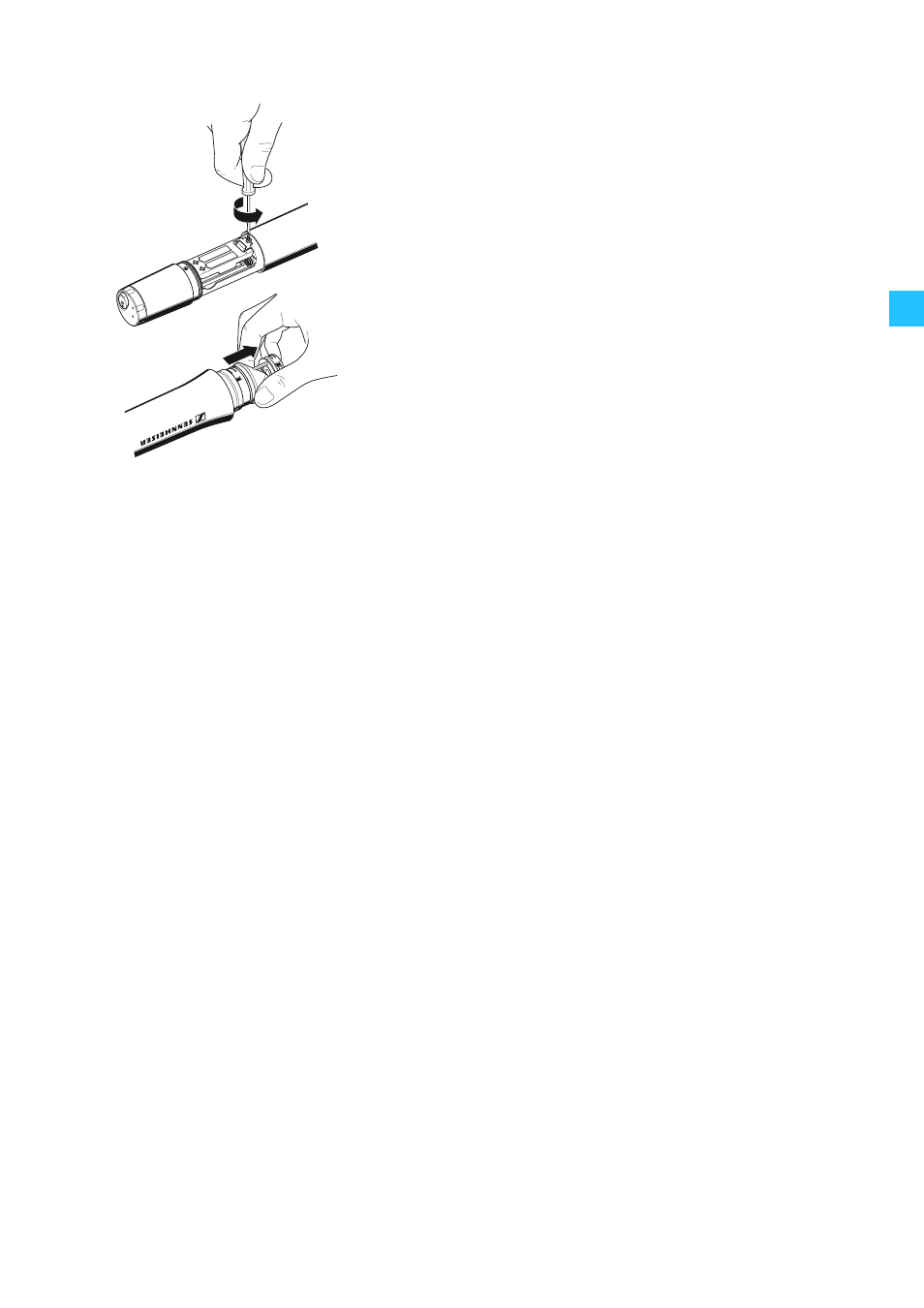

Loosen the screw and put it to one side.
̈ Gently ease the capsule out of the contacts and then pull it out of the hou-
sing as shown. Do not touch the contacts and the diaphragm!
̈
Insert the new capsule.
̈ Secure the capsule by tightening the screw.
Note:
The screw mechanically secures the microphone capsule. If the screw is
missing, malfunctions may occur during tough use.
̈
Put on the sound inlet basket and identification ring supplied with the
new microphone head (NB: do NOT use the old basket, as the different
heads use slightly differing internal foam) and screw it tight.
̈ Insert the batteries/accupack.
̈
Close the radiomicrophone and put it into operation.
Note:
Microphone capsule, sound inlet basket and foam insert form an acoustic
unit and must therefore always be exchanged all together. Each micro-
phone head comes with a color-coded identification ring to distinguish
different microphone heads from each other (green = MD 835, blue = MD
845, red = ME 865).
