MENU SETUP CONTINUED
DATE/TIME
(1) Date Format: Y/M/D, M/D/Y, D/M/Y
(2) Date/Time Adjustment:
Year settings are from 2000 to 2099
MOTION DETECTION

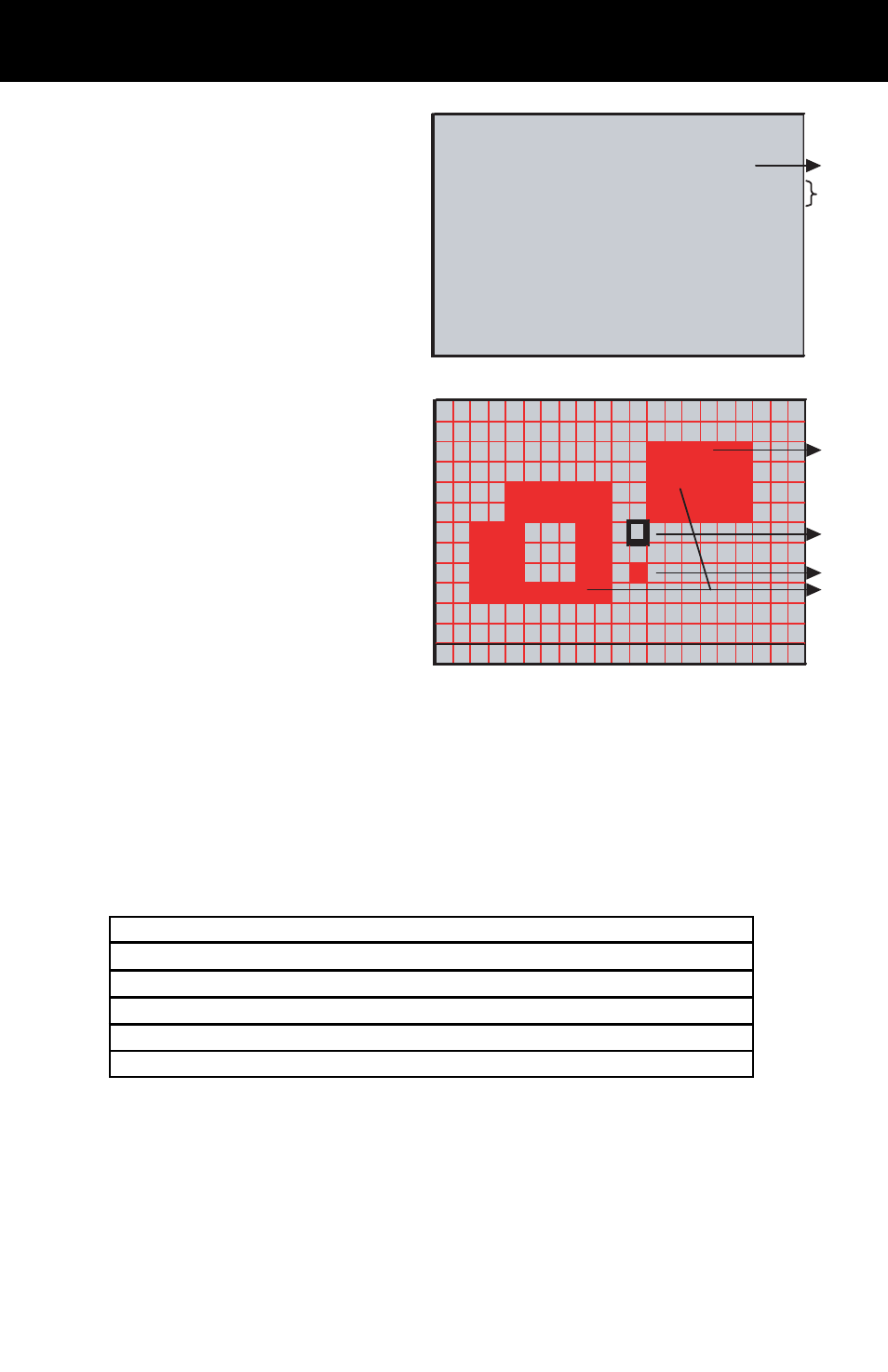

1. Window Setup:
(1)
Detection Cell: Whole screen is divided into 22x15 square cells.
(2)
Detection Block: Two or more cells form a block.
(3)
Cursor: Press PLAY button to switch to Select/Edit mode.
(4)
Detection Block.
2. Cursor Movement: Press PLAY button, switch cursor to setup mode (cursor color is black).
Press / buttons to move the cursor freely.
3. Detection Area Setup:
(1)
Press PLAY button to select edit detection block function.
FUNCTION
DESCRIPTION
CELL EDIT
Single detection cell setup (detection/non-detection)
DEL BLOCK
Disable a block
DEL ALL
Disable all cells
ADD BLOCK
Enable a block
ADD ALL
Enable all cells
(2)
Press PLAY button, switch cursor to edit mode (cursor color is pink). Press /
buttons, follow step (1) to change the size of the detection block.
(3)
Detection area is displayed by the colour red and non-detection area is
represented by the colour blue. Press ENTER to enable/disable the detection area.
(4)
When a detected object is moving in the detection area, detection area turns
from red to transparent (this indicates moving status).
