AVOID SERIOUS INJURY OR DEATH
• READ OPERATOR'S MANUAL(S).
• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.
• KEEP SAFETY DEVICES (GUARDS, SHIELDS, &
SWITCHES) IN PLACE AND WORKING.
• REMOVE OBJECTS THAT COULD BE THROWN BY
THE BLADE.
• DO NOT MOW WHEN CHILDREN OR OTHERS
ARE AROUND.
• NEVER CARRY CHILDREN.
• LOOK DOWN AND BEHIND—BEFORE AND WHILE
BACKING.
• AVOID SUDDEN TURNS.
• IF YOU CANNOT BACK UP A HILL
— DO NOT OPERATE ON IT.
• GO UP AND DOWN SLOPES, NOT ACROSS.
• IF MACHINE STOPS GOING UPHILL, STOP BLADE
AND BACK DOWN SLOWLY.
• BE SURE BLADE(S) AND ENGINE ARE STOPPED
BEFORE PLACING HANDS OR FEET NEAR BLADE(S).
• WHEN LEAVING MACHINE, SHUT OFF ENGINE,
REMOVE KEY, AND SET PARKING BRAKE.
WARNING
DO NOT TOW UNIT!
Damage may result to
drive mechanism.
OPERATION
To Start Engine
• Seat must be occupied.
• Clutch/Brake pedal must
be depressed.
• PTO switch must be off.
Ignition Switch
OFF
RUN
START
Clutch/Brake
Pedal
Parking
Brake
Knob
Parking Brake
To Set Parking Brake
• Pull knob up while Clutch/Brake
pedal is depressed.
• Release Clutch/Brake pedal
while holding knob.
To Release Parking Brake
• Depress Clutch/Brake pedal.
• Push knob down while
Clutch/Brake pedal is depressed.
To Adjust Top Speed of Wheels
COLUMN KNOBS INDEPENDENTLY
CONTROL TOP SPEED OF
EACH WHEEL
• Turn knob clockwise to lower
top speed of a wheel.
• Turn knob counter-clockwise to
raise top speed of a wheel.
Lower speed of faster wheel until
vehicle travels in straight line when
both levers are in the MAXIMUM
forward position.
When Operator Leaves Seat
• Engine will shut off if Parking Brake is
not engaged.
• Engine will shut off if PTO switch is on.
PTO Switch To Operate PTO clutch
• The operator must be in seat.
• To engage PTO, pull switch up.
• To disengage PTO, push switch down.
ROTATING BLADES
CUT OFF ARMS
AND LEGS
STOP MOWER WHEN
CHILDREN ARE NEAR.
NO RIDERS
— THEY FALL OFF.
DANGER
DANGER
OPERATING ON
SLOPES CAN BE
DANGEROUS
SEE OPERATOR'S
MANUAL.
IF YOU CANNOT
BACK-UP A HILL
—DO NOT DRIVE ON IT.
1715993
DANGER
ROTATING CUTTING BLADE
Do not operate mower
without deflector or entire
grass catcher in place.
1704277
DANGER
ROTATING CUTTING BLADE
Do not put hands or feet
under mower deck while
blade is rotating.
1704276
LAWN TRACTORS
DRIVE BELTS & MOWER BLADES
Transmission Belt
38" Mower
44" Mower
38" / 44" Snowthrower Drive Belt 1678241
Gear 1657044
Hydro 1672135
Drive Belt 1716854
Mower Blade - Left 1704856
Mower Blade - Right 1704101
Deck Drive Belt 167031
Drive Belt 1601672
Mower Belt 1704100
For safety and reliability, insist on genuine Simplicity
Manufacturing, Inc. belts and blades...our name
stamped on the part is your assurance of quality.
RIGHT WHEEL
(Run Position Shown)
LEFT WHEEL
(Release Position Shown)
1715996
LEFT RESERVOIR
JUDT L KJHFKJDSH LKJHFK
JH FS
FLDSHKJL SDFIUDSF IUDSF
SFDOIU DIFSUO
RIGHT RESERVOIR
KJHL ASHFKJDSH LKJHFKJH FSD
FLDSHKJL SDFIUDSF IUDSF
SFDOIU DIFSUO
1
3
4
5
6
8
9
7
1
3
4
5
6
7
8
2
2
10
22 TP 400-2169-01-ZT-SMA © Copyright 1999 Simplicity Manufacturing, Inc. All Rights Reserved.

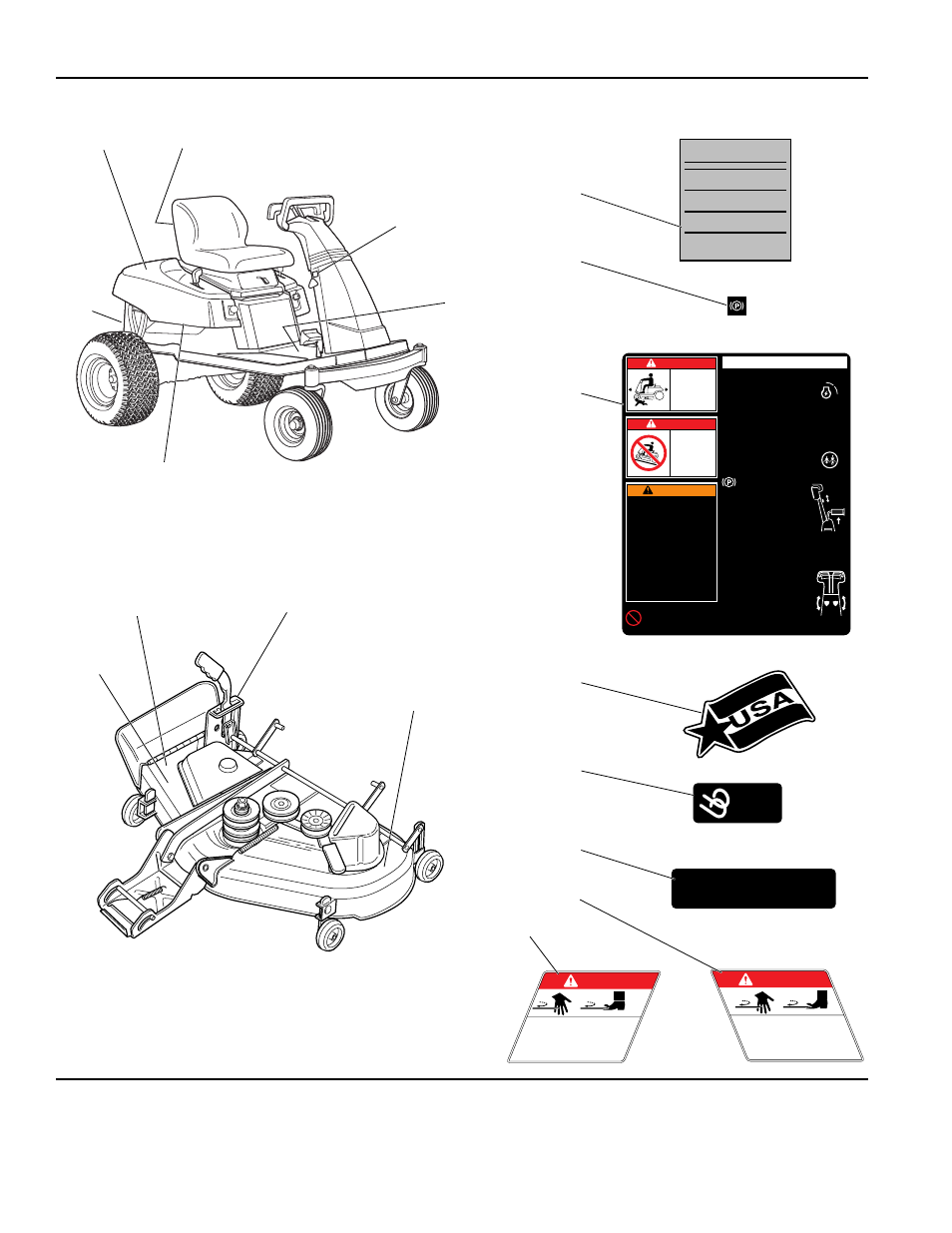

Decals - Safety & Common
A-ZT42510A
The above parts group applies to the following Mfg. Nos.:
1692905 14HP, ZT Rider
1692906 16HP, ZT Rider
1692907 14HP, ZT Rider
1692908 16HP, ZT Rider
1692910 14HP, ZT Rider
1692911 16HP, ZT Rider
1693140 14HP, ZT Rider (Export)
1693143 16HP, ZT Rider (Export)
1693286 14HP, ZT Rider
1693288 16HP, ZT Rider
1693290 14HP, ZT Rider (Export)
1693292 16HP, ZT Rider (Export)
1693296 14HP, ZT Rider
1693298 16HP, ZT Rider
1693300 14HP, ZT Rider
1693302 16HP, ZT Rider
1692912 38” Mower Deck
1692913 38” Mower Deck
1692914 44” Mower Deck
1692915 44” Mower Deck
