6 6
❶
B Ba acckk o off T TV V
S Stte erre eo o A Am mp plliiffiie err

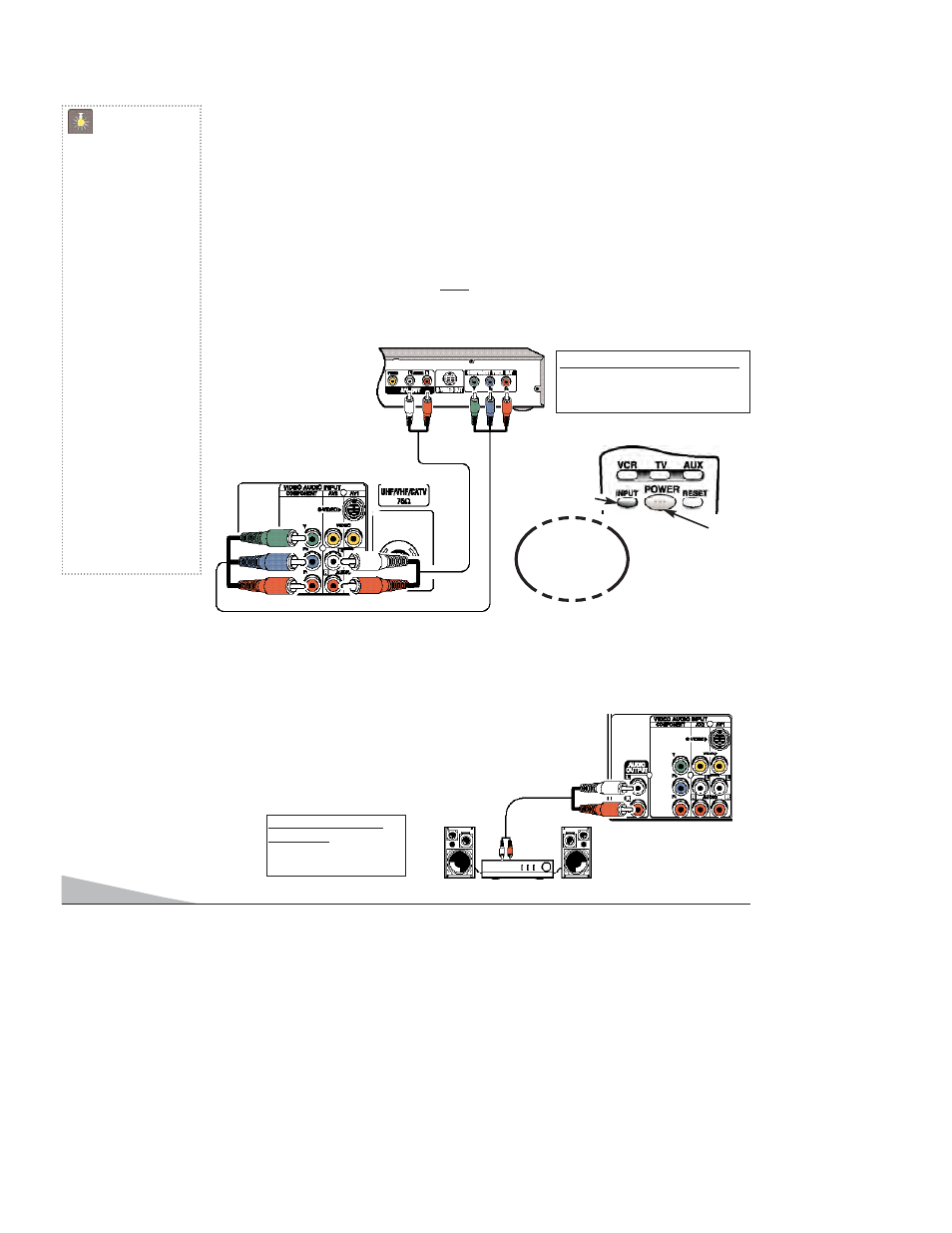

CONNECTING A DVD PLAYER OR OTHER DIGITAL EQUIPMENT
Switch off TV and external equipment before connecting cables. (Cables are not supplied.)
❶
Connect a DVD Player or other digital equipment’s interlaced Component Video Out to
the TV Component Video In (Y-Pb-Pr) Jacks.
❷
Connect the DVD Player’s Audio Out to the TV A/V2 Audio In (L/R) Jacks.
❸
Press POWER to turn on the TV. Turn on external equipment also.
❹
Press the INPUT key to select COMPONENT2.
Notes: DVD Player component output must be set to Interlaced (480i).
Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input jacks.
Connect equipment to the component inputs or A/V2 inputs, but not both sets at the
same time.
D DV VD D P Plla ayye err
❶
T TV V B BA AC CK K
❷
USING THE COMPONENT VIDEO AND AUDIO
IN JACKS
❹
❸
Press
INPUT key after
connecting
cables.
R Re em mo otte e C Co on nttrro oll
QuickTips
■ You may be able
to use the TV remote
control to operate
your DVD Player.
(See
pages 8 ~10.)
■ A solid Blue screen
with COMPONENT2
displayed means that
the Video mode is
selected, but no signal
is being detected at
the Component jacks.
Check connection,
and turn on external
equipment.
■ Position your TV at
least 2 feet from
stereo speakers. The
magnets in the speak-
ers may affect the
picture quality.
N Neeeed d h heellp p? ?
V Viissiitt o ou urr W We eb b ssiitte e a att
USING THE AUDIO OUTPUT JACKS
CONNECTING AUDIO OUT JACKS TO A STEREO AMPLIFIER
Switch off TV and external equipment before connecting cables. (Cables are not supplied.)
❶
Connect the TV Audio Out (R/L) to the Stereo Amplifier In (R/L).
❷
Press POWER to turn on the TV. Turn on external equipment also.
Note: DO NOT connect external speakers directly to the TV.
W Wh ha att yyo ou u w wiillll n ne ee ed d ffo orr cco on nn ne eccttiio on nss::
❶
C Co om mp po on ne en ntt vviid de eo o cca ab blle e – – 1 1
❷
A Au ud diio o C Ca ab blle e – – 1 1
W Wh ha att yyo ou u w wiillll n ne ee ed d ffo orr
cco on nn ne eccttiio on nss::
❶
A Au ud diio o C Ca ab blle e – – 1 1
