Connecting the Cigarette Lighter Adapter
Connect the provided cigarette lighter adapter to the 5VDC connector on the back of the
Vehicle Dock. (See Figure 16.)
Note: Do not power the Vehicle Dock directly from your vehicle’s 12VDC power
system without using the Cigarette Lighter Adapter. This could damage the Vehicle
Dock, your SIRIUS radio or both.
Docking Your SIRIUS Radio
To place your SIRIUS SP5 into
the Vehicle Dock, align the ra-
dio against the rear of the Dock
so that the rails on the Dock fit
into the mounting slots in the
back of the radio (Figure 17).
Slide the radio all the way down
onto the Dock so that it fits firmly.
Mounting
Slots
Figure 17
AUDIO 5VDC
Vehicle
Dock
(Left Side)
5V DC
Connection
12V
Power
Outlet
Cigarette Lighter
Adapter

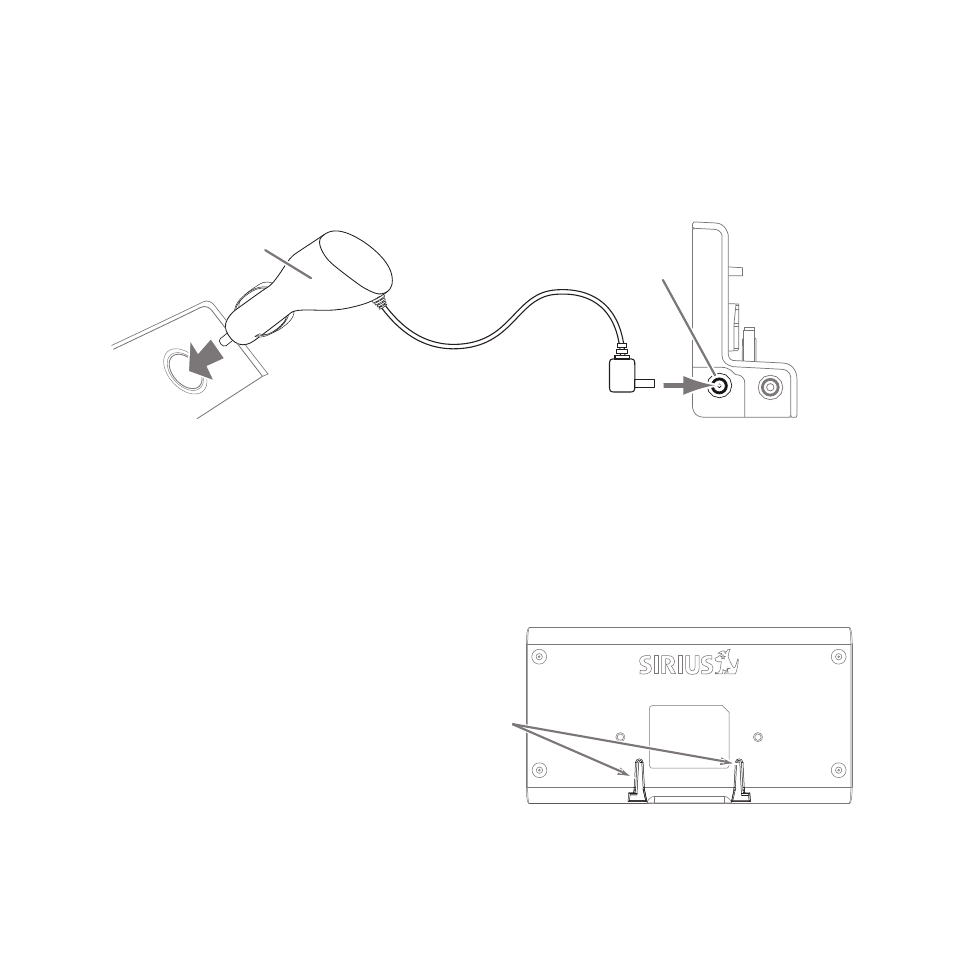

Figure 16
