99-00496-00 REV A0

Projector Replacement Guide for the 2000i

9

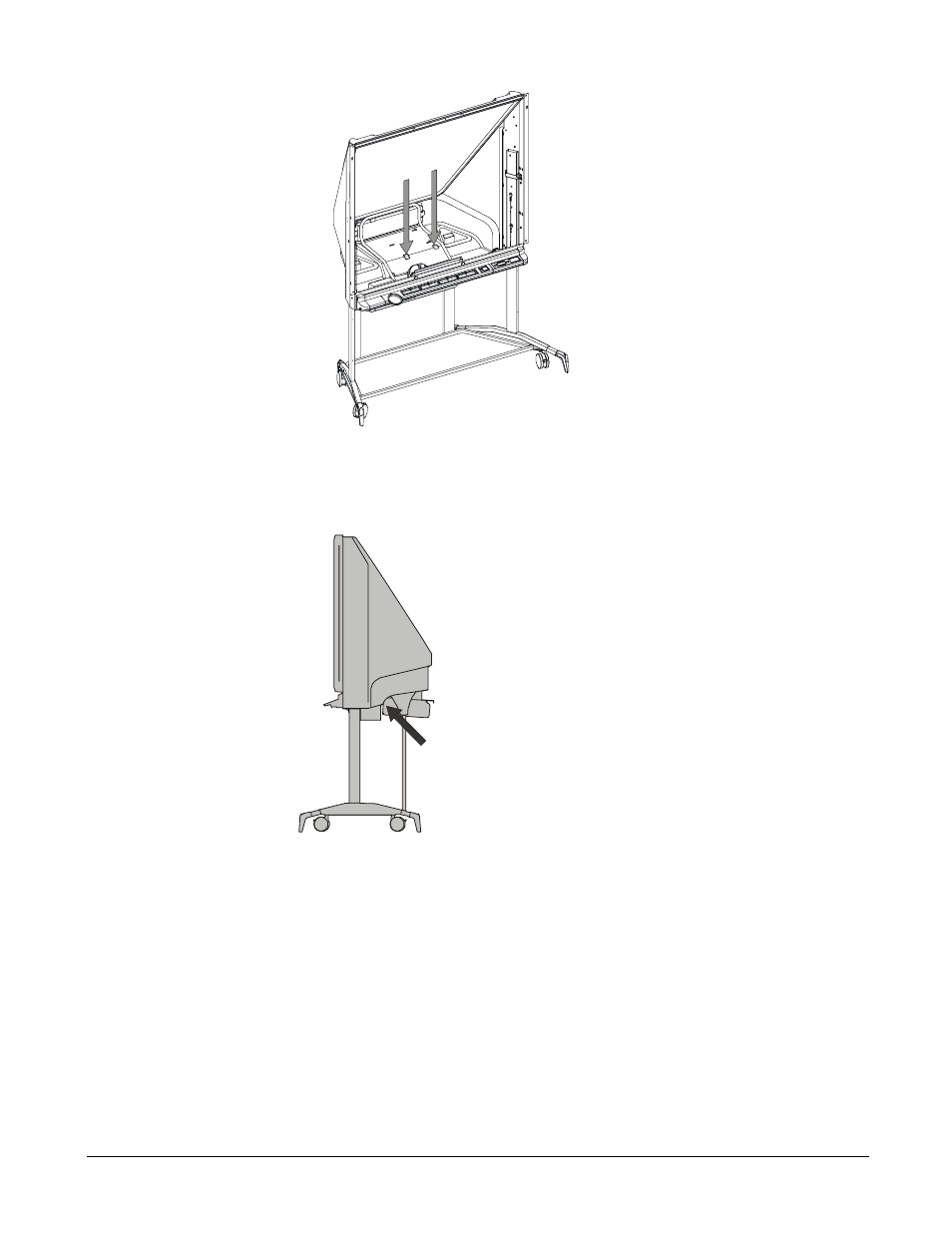

Screen Removed for Clarity

As you maneuver the hex key through the access holes, watch it from the side to see
when it engages with the hex screw.

Look here to see when

the hex key engages

with the screw

4. Slide the projector backward or forward to alter the image size.

5. When the image is a good size, tighten all four hex screws that you previously loosened.
