4

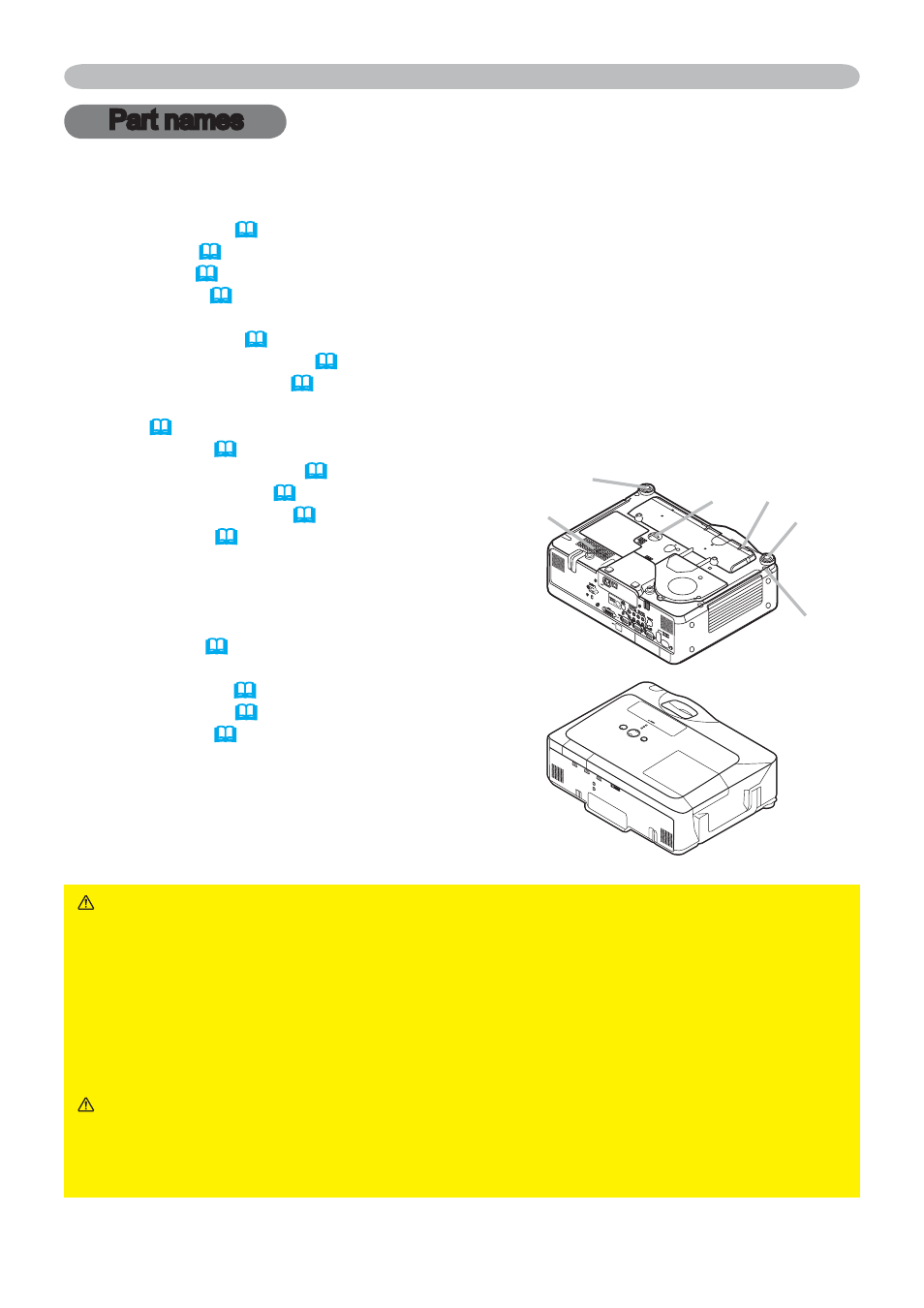

Part names
Part names
Projector
(1) Speakers (x 4) (
37).
(2) Focus ring (
19)
(3) Zoom ring (
19)
(4) Lamp cover (
56)
The lamp unit is inside.
(5) Lens shift cover (
19)
(6) Horizontal lens shift dial (
19)
(7) Vertical lens shift dial (
19)
(8) Front cover
(9) Lens (
61)
(10) Lens cover (
3)
(11) Remote sensors (x 3) (
14)
(12) Elevator feet (x 2) (
9)
(13) Elevator knobs (x 2) (
9)
(14) Filter cover (
58)
7KHDLU¿OWHUDQGLQWDNHYHQWDUH
inside.
(15) Exhaust vents
(16) Intake vents
(17) Rivet hole (
3)
(18) Handle
(19) Battery cover (
60)
(20) Control panel (
5)
(21) Rear panel (
5)
WARNING ŹHOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
Ź'RQRWORRNLQWRWKHOHQVRUYHQWVZKLOHWKHODPSLVRQVLQFHWKHVWURQJOLJKW
is not good for your eyes.
Ź'RQRWJUDEWKHIURQWFRYHUWRKROGWKHSURMHFWRUXSVLQFHWKHSURMHFWRUPD\
drop down.
Ź'RQRWKDQGOHWKHHOHYDWRUNQREVZLWKRXWKROGLQJWKHSURMHFWRUVLQFHWKH
projector may drop down.
CAUTION Ź0DLQWDLQQRUPDOYHQWLODWLRQWRSUHYHQWWKHSURMHFWRUIURP
heating up. Do not cover, block or plug up the vents. Do not place anything that
FDQVWLFNRUEHVXFNHGWRWKHYHQWVDURXQGWKHLQWDNHYHQWV&OHDQWKHDLU¿OWHU
periodically.
(12)
(12)
(13)
(17)
(19)
(16)
