27

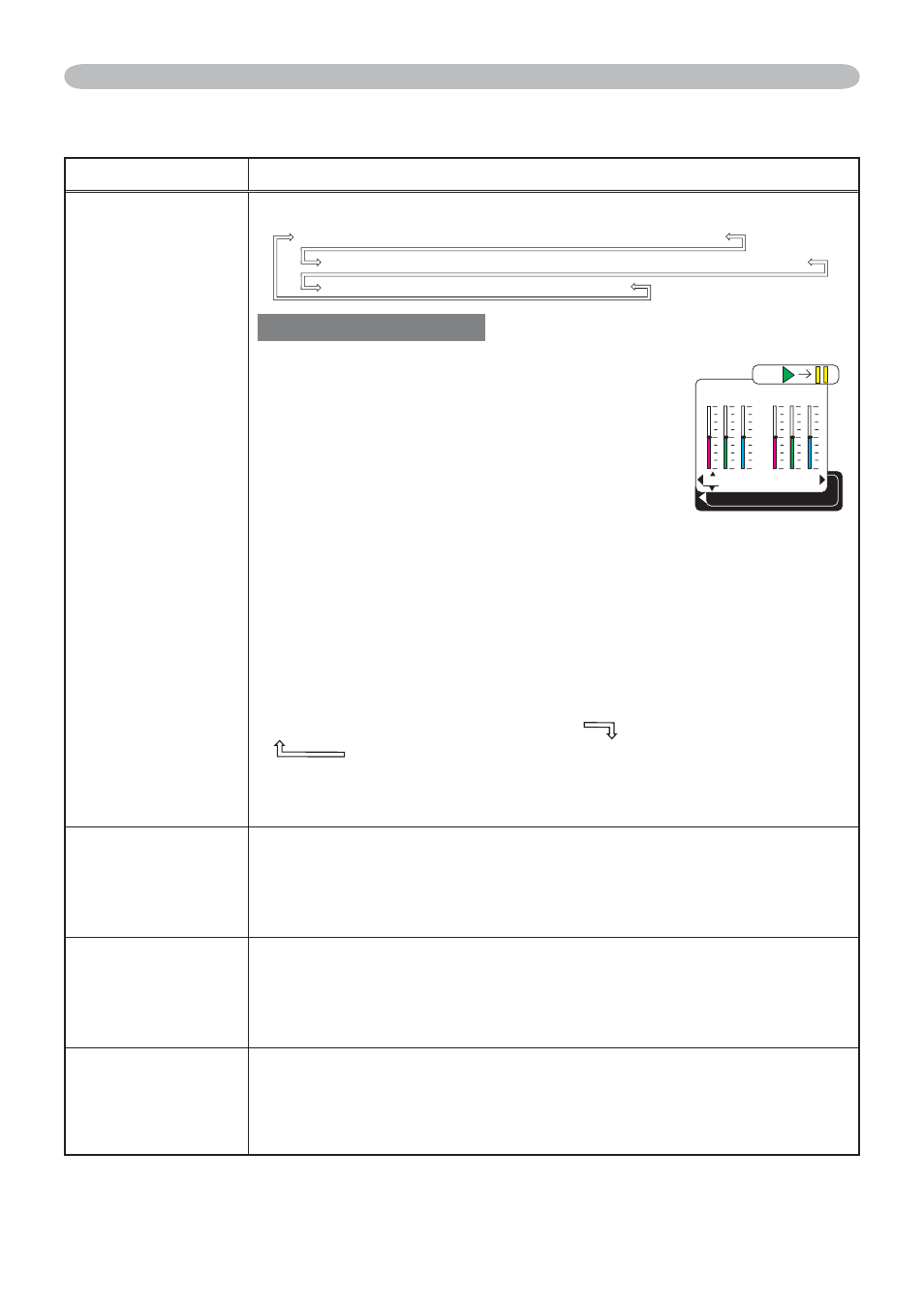

Item Description
COLOR TEMP
8VLQJWKHŸźEXWWRQVVZLWFKHVWKHFRORUWHPSHUDWXUHPRGH
To adjust CUSTOM
Selecting a mode whose name includes
&86720DQGWKHQSUHVVLQJWKHŹEXWWRQRUWKH
ENTER button displays a dialog to aid you in
adjusting the OFFSET and GAIN of the selected
mode.
OFFSET adjustments change the color intensity
on the whole tones of the test pattern.
GAIN adjustments mainly affect color intensity
on the brighter tones of the test pattern.
&KRRVHDQLWHPXVLQJWKHŻŹEXWWRQVDQGDGMXVWWKHOHYHOXVLQJ
WKHŸźEXWWRQV
You can display a test pattern for checking the effect of your
adjustment by pressing the ENTER button.
Each time you press the ENTER button, the pattern changes as
below.
No pattern Ö Gray scale of 9 steps
Ramp Õ Gray scale of 15 steps
• When this function is performed, lines or other distortion may
appear.
COLOR
8VLQJWKHŸźEXWWRQVDGMXVWVWKHVWUHQJWKRIZKROHFRORU
Strong Ù Weak
• This item can be selected only for a video signal, s-video or
component video signal.
TINT
8VLQJWKHŸźEXWWRQVDGMXVWVWKHWLQW
Greenish Ù Reddish
• This item can be selected only for a video signal, s-video or
component video signal.
SHARPNESS
8VLQJWKHŸźEXWWRQVDGMXVWVWKHVKDUSQHVV
Strong Ù Weak
• 7KHUHPD\EHVRPHQRLVHDQGRUWKHVFUHHQPD\ÀLFNHUIRUD
moment when an adjustment is made. This is not a malfunction.
PICTURE Menu
PICTURE Menu (continued)
R
+0
G
+0
B
+0
COLOR TEMP [CUSTOM-1]
ENTER :
OFFSET
R
+0
G
+0
B
+0
GAIN
HIGH DEFAULT HIGH CUSTOM MID DEFAULT MID CUSTOM
LOW DEFAULT LOW CUSTOM Hi-BRIGHT-1 DEFAULT Hi-BRIGHT-1 CUSTOM
Hi-BRIGHT-2 DEFAULT Hi-BRIGHT-2 CUSTOM
(continued on next page)
