Dimensional data, 1. unit, 1-1. indoor unit – Sanyo CH1852 User Manual
Page 18
14
31-11/16 (805)
10-5/8 (270)
6-31/32 (177)
3-29/32
(99.5)
2-5/16
(58.5)
1-5/8 (41.0)
1-5/8 (41.0)
Drain hose ø23/32 (18)
Narrow tube ø1/4 (6.35)
Wide tube
*
Center of tubing
hole (2 places)
Unit: inch (mm)
6-7/32
(172.5)
Remote control unit
2-2/5
(61)
25/32
(18.5)
KHS0951
KHS1251
ш3/8 (9.52)
ш1/2 (12.7)
*

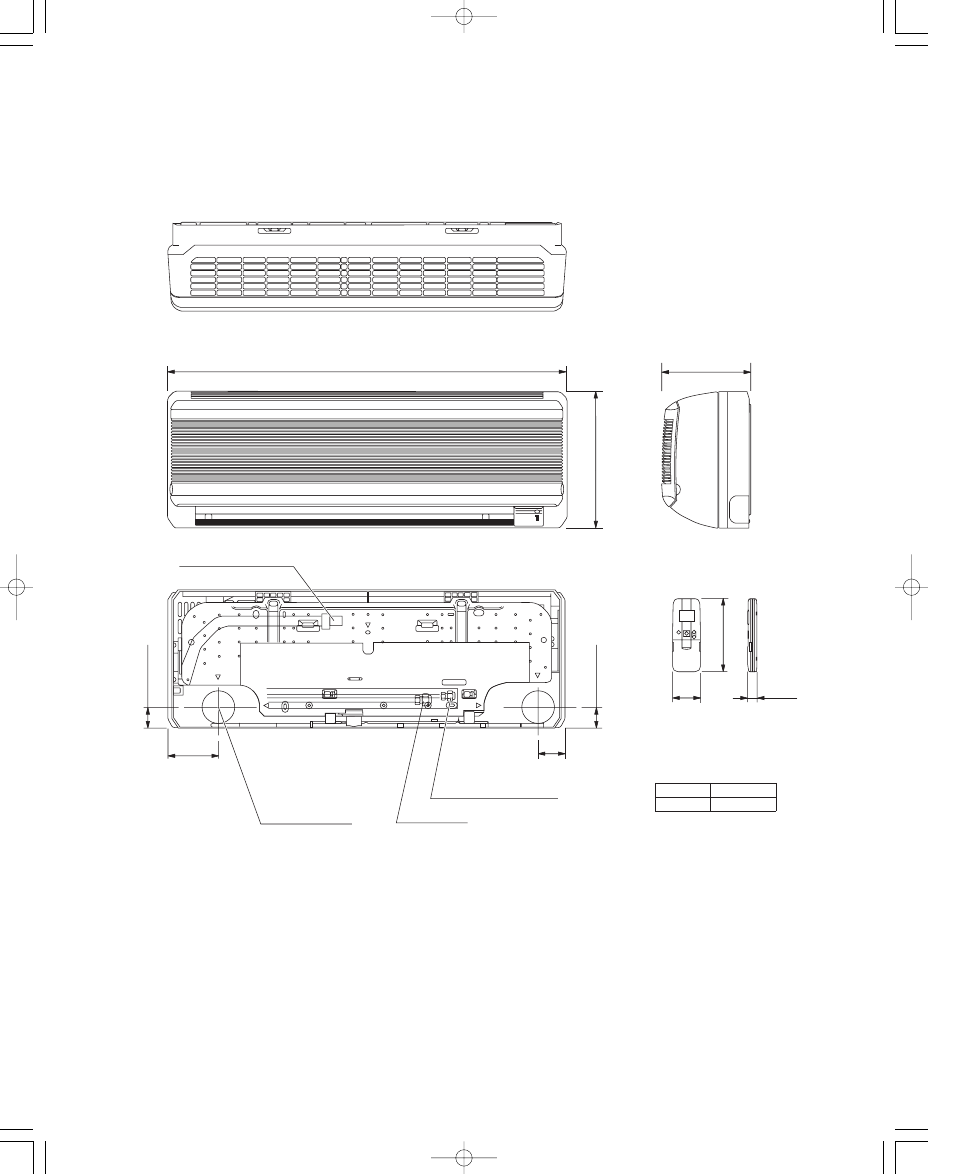

3. DIMENSIONAL DATA
3-1. Unit
3-1-1. Indoor Unit
(1) Indoor unit
KHS0951 / KHS1251
000-111
SM
(1-17)
00.3.17
11:44
AM
