CS4000 Mini Controller with Ethernet
Page 4-12 T-38324-A 39-30-38324

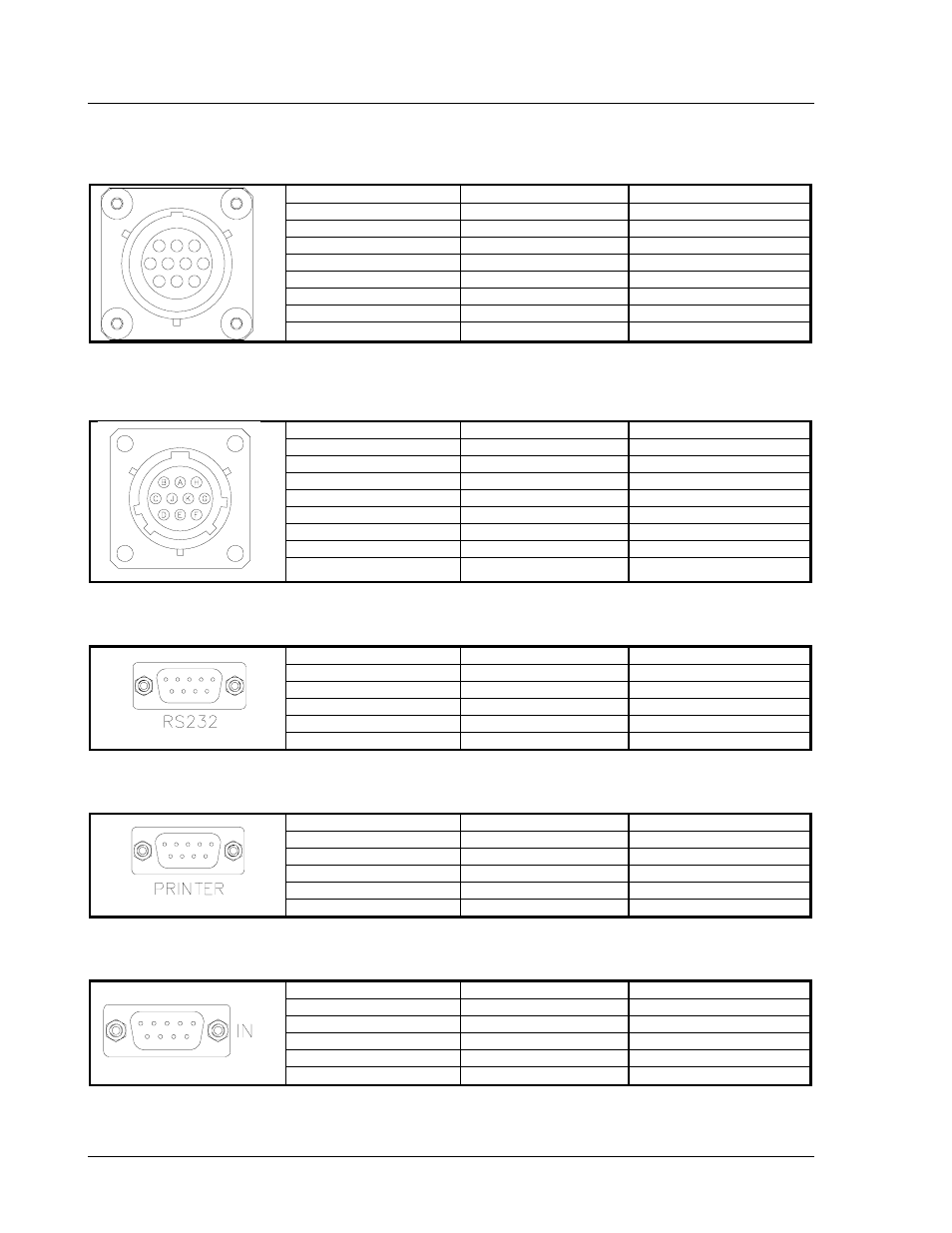

RS-422 Connector
Pin Designation Wire Color (Ref) Function
A BRN/WHT TXD+ OUT
B WHT/BRN TXD- OUT
C ORN/WHT RXD+ IN
D WHT/ORN RXD- OUT
E GRN/WHT Not used
F WHT/GRN Not used
G BLU/WHT SHIELD COMMON
D E F
G K J C
H A B
H GRN SHIELD
Tool Control Module (TCM) Network Connector
Pin Designation Wire Color (Ref) Function
A BRN/WHT TXD+ OUT
B WHT/BRN TXD- OUT
C ORN/WHT RXD+ IN
D WHT/ORN RXD- OUT
E GRN/WHT CLK+ OUT
F WHT/GRN CLK- OUT
G BLU/WHT SHIELD COMMON
H GRN SHIELD
RS-232 Connector
Pin Designation Wire Color (Ref) Function
2 BLU RXD
3 GRN TXD
5 BLK GND
7 RED RTS
8 YEL CTS
Printer/Barcode Connector
Pin Designation Wire Color (Ref) Function
2 BLU RXD
3 GRN TXD
5 BLK GND
7 RED RTS
8 YEL CTS
Interbus-S “IN” Connector
Pin Designation Wire Color (Ref) Function
1 YL DO1
2 GY DI1
3 BRN GND1
6 GRN Not DO1
7 PK Not DI1
