Chapter 3. Identifying the Components
May 2002
T-38324-A
Page 3-11
Backplane
The backplane (part number 420890-35327) is a printed circuit board into which many of the internal
component cables plug. It also contains address switch SW-1, and the DCM fuse, F4. See Figure 3-8.

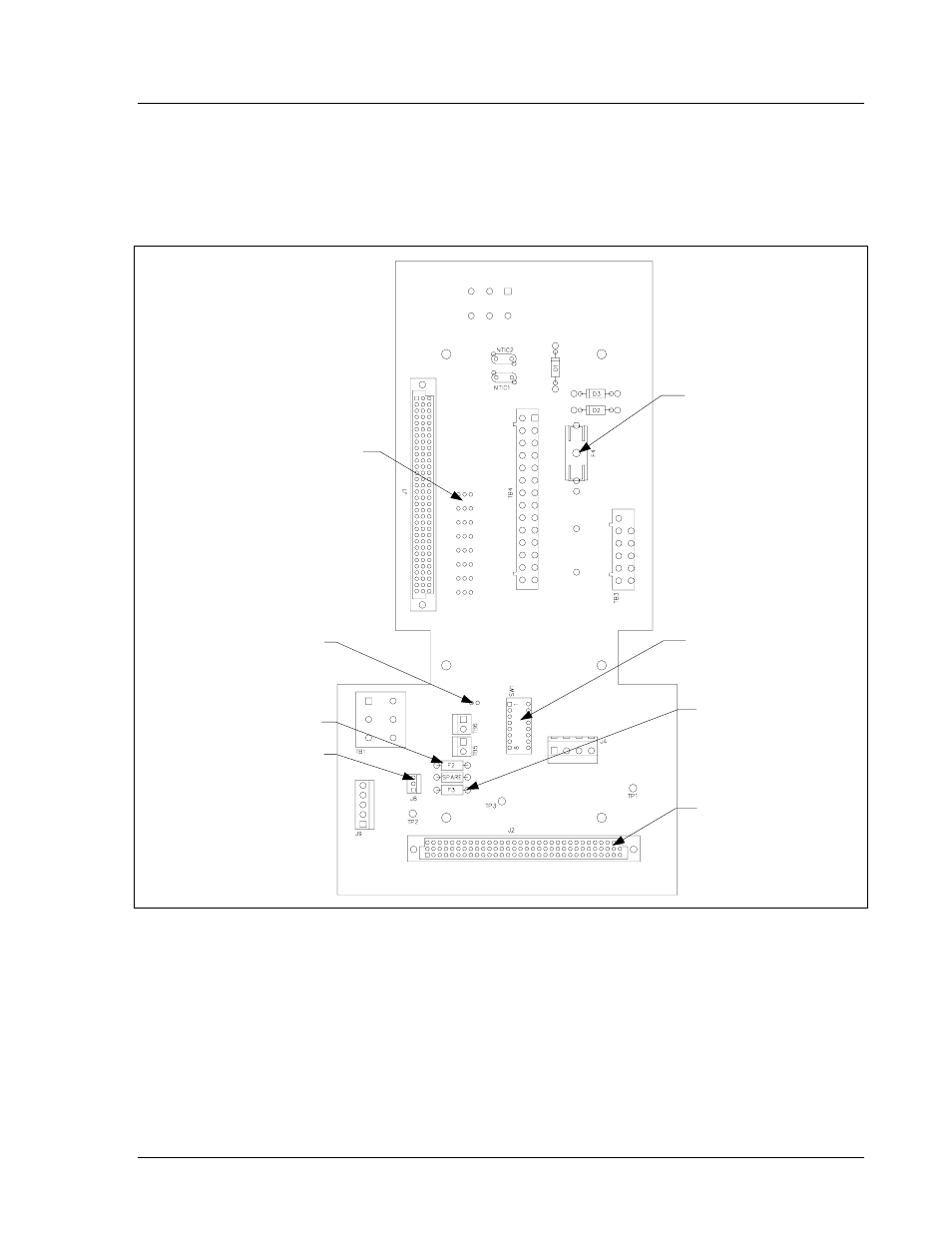

Figure 3-8. CS4000 Mini Controller with Ethernet Backplane
Device Control Module
(DCM) Fuse, F4
Address Switch,
SW-1
I/O Board, J2
+24VDC Fuse to Tool, F2
+24V Input, J8
+24VDC Input Fuse, F3
Jumper, JP9
Jumpers, JP1 to JP8
