1-6
DVS-9000/9000SF

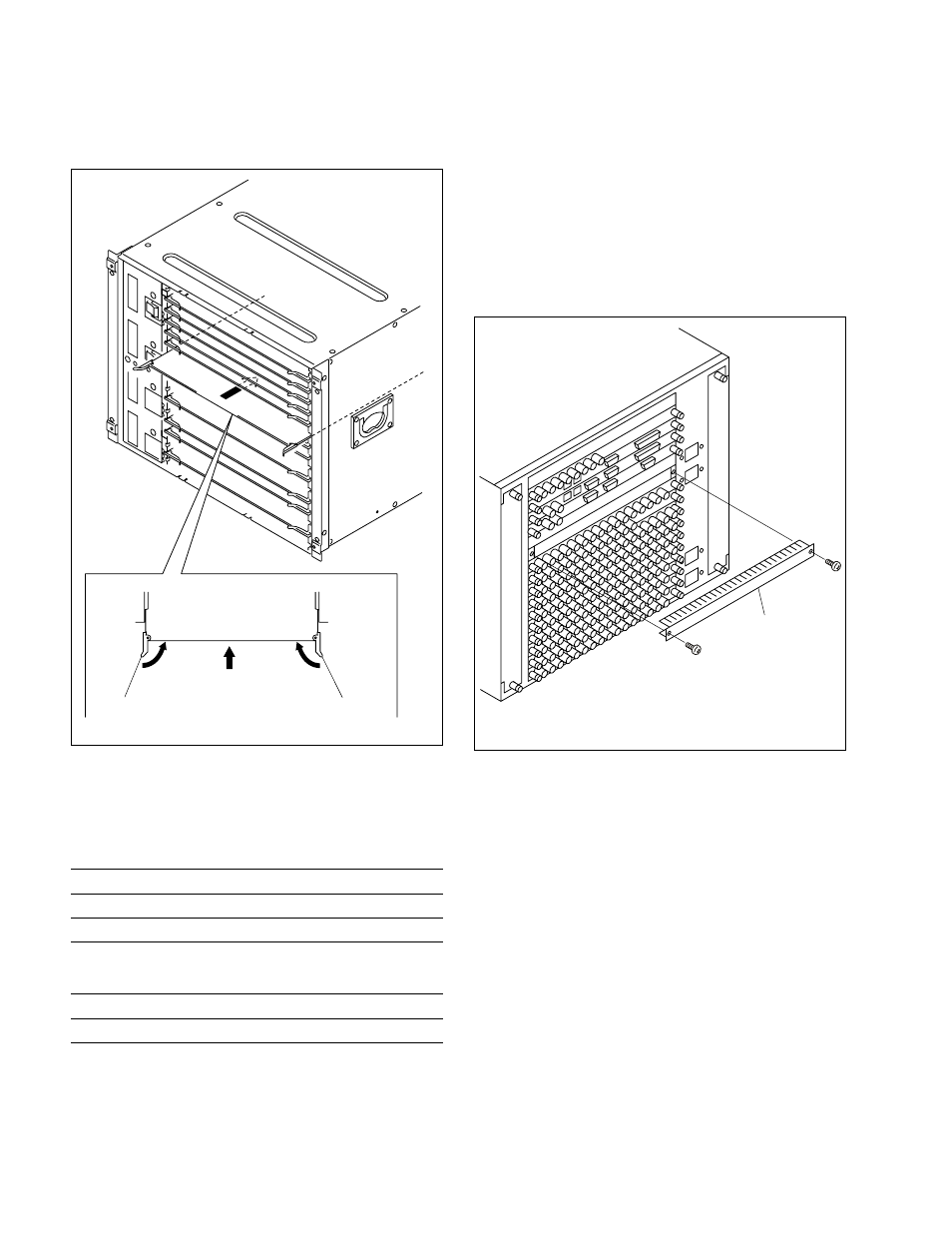

1-4-2. Installing the Connector Board
1. Remove the two screws and remove the blank panel.
m
. To install the connector board into the slot in which
the other board is installed already, loosen the two
fixing screws and remove the connector board that is
installed already.
. Store the removed blank panel in a safe place.
Blank panel
B3 x 5
B3 x 5
5. While closing the eject levers in the direction of arrow
1, push in the plug-in board.
6. Attach the plug-in board loose-proof assembly and the
front panel by reversing the installation steps of 2, 3.
DVS-9000 option
Name of option Name of board Slot on the front side
BKDS-9160 OUT-26 board 16
BKDS-9210 MIX-46 board 6, 7
DVS-9000SF option
Name of option Name of board Slot on the front side
BKDS-9210 MIX-46 board 6
Eject lever Eject lever
1 1
1-4. Installing the Options
(The illustration shows the DVS-9000.) (The illustration shows the DVS-9000.)
