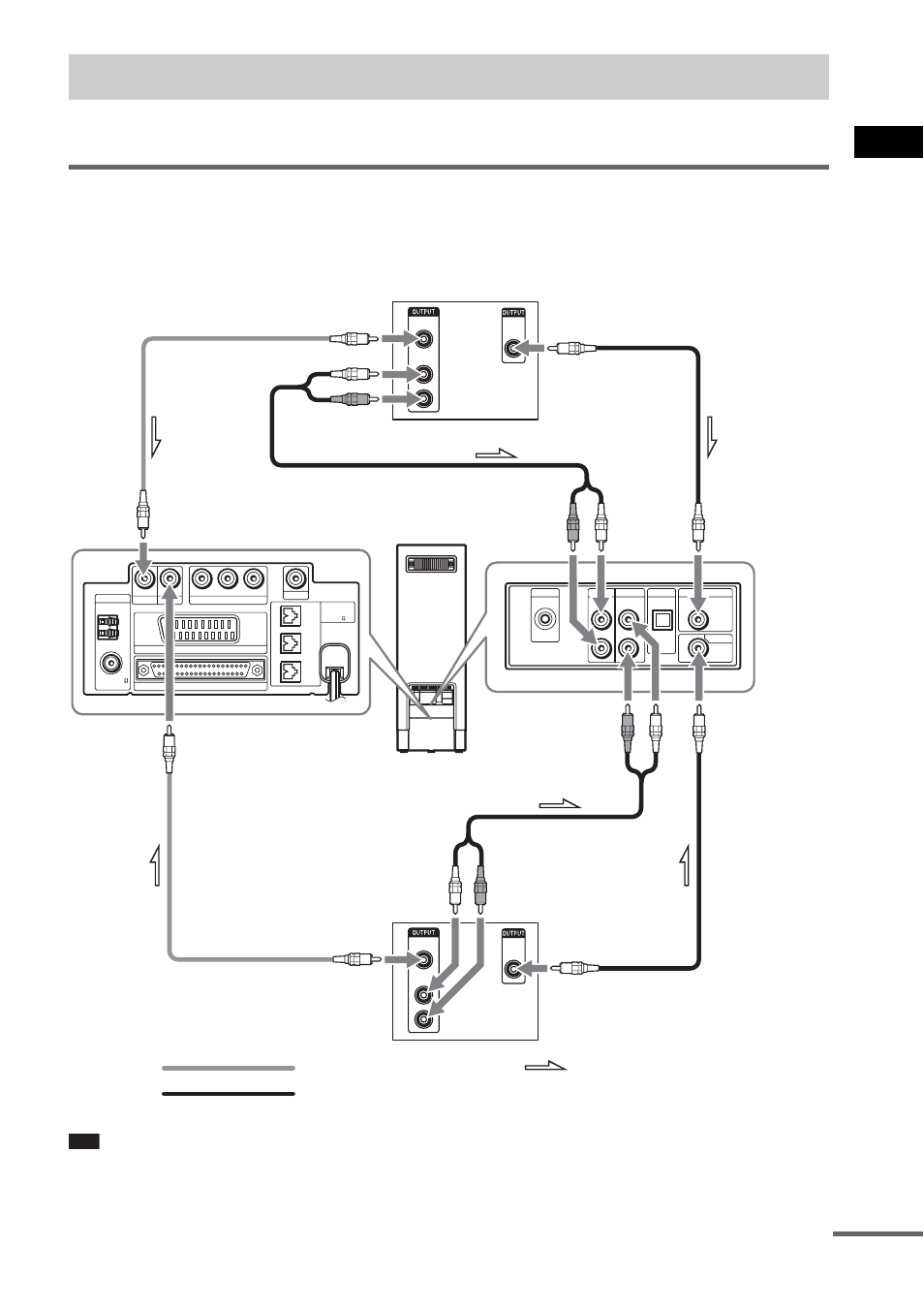

You can enjoy other component by connecting the VIDEO/AUDIO OUT jacks of another component.
Connecting the system and the other component
Outputs the other component through the speakers of this system.
Note
• Make sure that the connected jack combinations are correct; if you connect the audio cords to VIDEO 1 (AUDIO
IN), you should connect the video cord to VIDEO 1 (VIDEO IN).
Other Component Hookup
R
AUDIO
OUT
L
VIDEO
OUT
COAXIAL
DIGITAL
OUT
R
AUDIO
OUT
L
VIDEO
OUT
COAXIAL
DIGITAL
OUT
VIDEO 1
VIDEO 2
VIDEO 2
TV
VIDEO 1
AUDIO IN
AUDIO IN
DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN
Y
P
B
/C
B
P
R
/C
R
VIDEO IN
VIDEO 1
COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
EURO AV
OUTPUT (TO TV)
SYSTEM CONTROL
VCR, digital satellite receiver
or PlayStation 2, etc.
To the digital coaxial
output jack
Subwoofer
To the audio
output jacks
VCR, digital satellite receiver
or PlayStation 2, etc.
Video signal
Audio signal
To the video
output jack
To the audio
output jacks
To the digital coaxial
output jack
To the video
output jack
: Signal flow
Rear of the
subwoofer
Bottom of the subwoofer
