22 GB
G
e
tting
Star
te
d –
B
A
SIC –

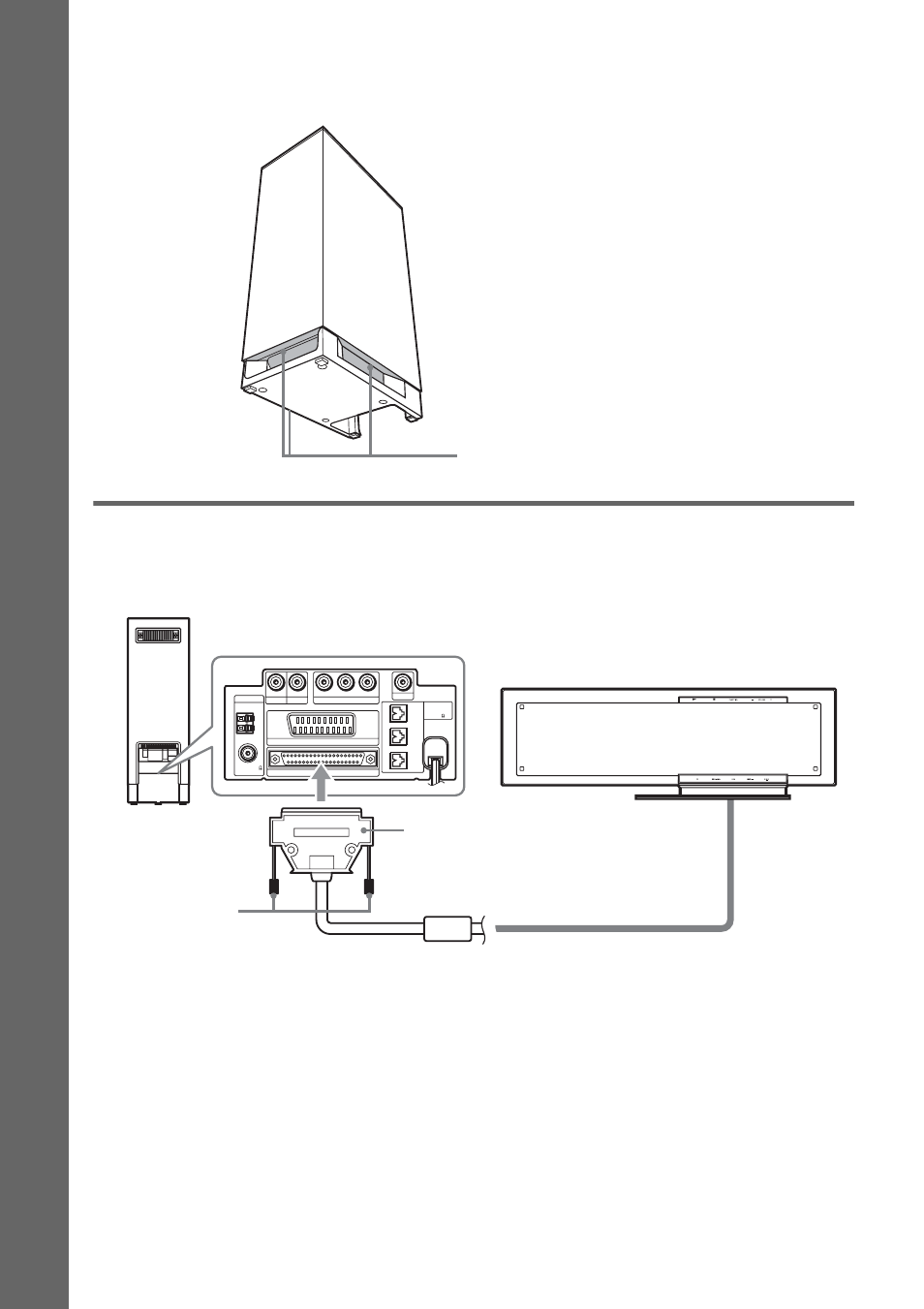

Note on handling the subwoofer
• Do not place your hand into the slit of the subwoofer when lifting it. The speaker driver may be damaged. When
lifting, hold the bottom of the subwoofer.
1 Connecting the Control unit
Connect the system connector of the control unit to the SYSTEM CONTROL jack of the subwoofer.
Insert the plug of the SYSTEM CONTROL cord, then secure the screws of the plug.
Slits
Subwoofer
CENTER INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P B /C B P R /C R VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
EURO AV
OUTPUT (TO TV)
SYSTEM CONTROL
Subwoofer
SYSTEM CONTROL cord
Control unit
Bottom of the subwoofer
Screws
Plug
