15 GB
Ge
tting
Star
te
d –
B
A
SIC –

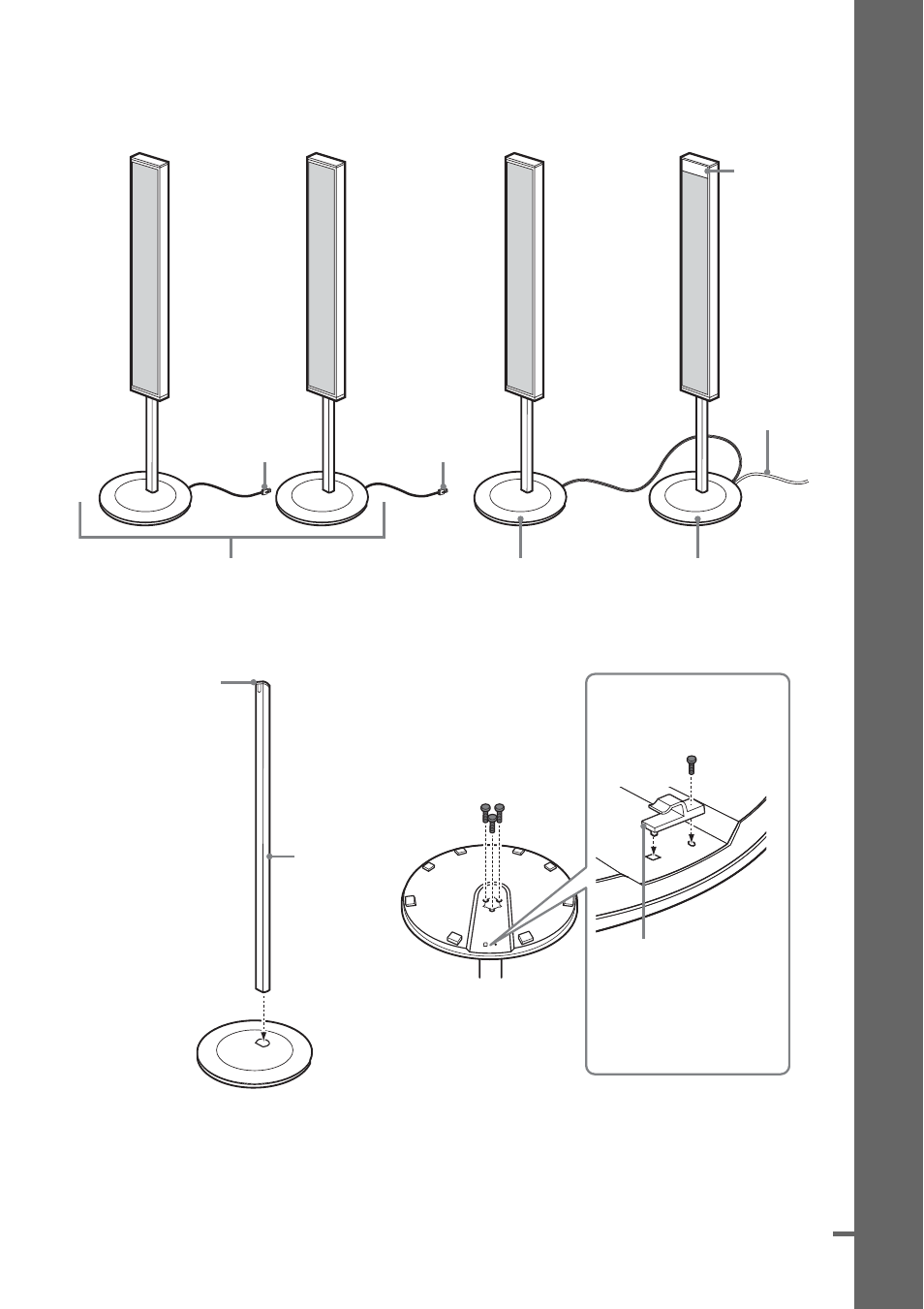

Fully-assembled illustration
The speaker that has the IR receiver is the surround speaker (L) (left surround speaker), the speaker
that is connected to the surround speaker (L) is the surround speaker (R) (right surround speaker),
and others are the front speakers.
1
Insert the post into the base, and secure the base with screws. (for all speakers)
* Do not remove the screw that is attached to the post. The screw is to prevent the speaker from slipping.
IR receiver
Front speaker (L): White label
Front speaker (R): Red label Surround speaker (R):
Gray label
Speaker
system cord
White Red
Surround speaker (L):
Blue label
Base
Post
Post cover
(upper part)
,
Screws (black, large) (3)
Bottom of the base
Cord clamp
For the surround
speaker (L)
Screw (black, medium)
Screw *
Secure the cord clamp
with the screw.
continued
