117 GB

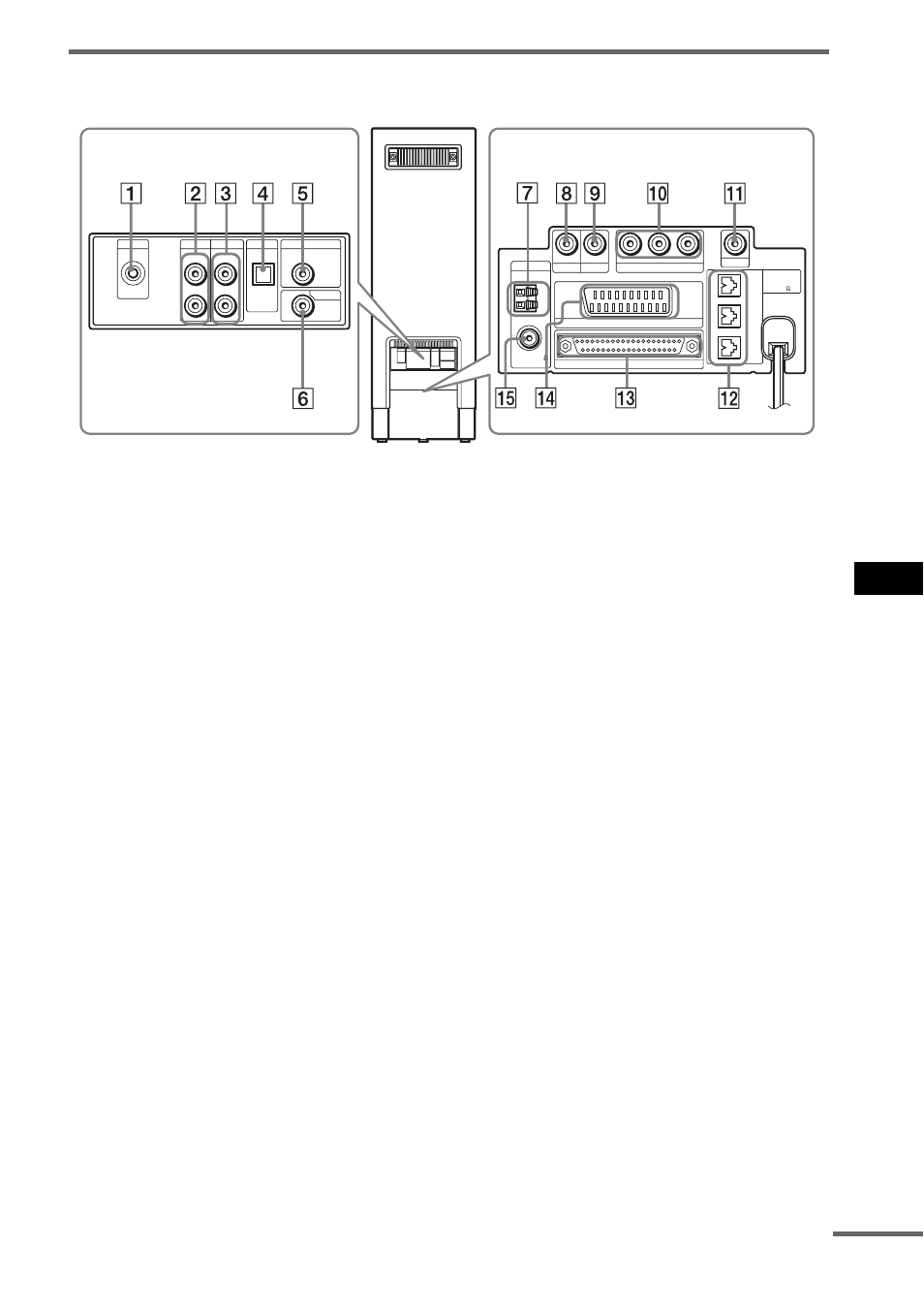

Subwoofer
A ECM-AC1 jack (29, 88)
B VIDEO 1 (AUDIO IN L/R) jacks (39)
C VIDEO 2 (AUDIO IN L/R) jacks (39)
D
TV (DIGITAL IN OPTICAL) jack (38)
E VIDEO 1 (DIGITAL IN COAXIAL) jack
(39)
F VIDEO 2 (DIGITAL IN COAXIAL) jack
(39)
G
AM terminal (21)
H VIDEO 1 (VIDEO IN) jack (39)
I VIDEO 2 (VIDEO IN) jack (39)
J COMPONENT VIDEO OUT jacks (35)
K DIR-T1 jack (21)
L
SPEAKER jacks (21)
M SYSTEM CONTROL jack (21)
N EURO AV T OUTPUT (TO TV) jack
(35)
O FM 75
Ω
COAXIAL jack (21)
VIDEO 1 VIDEO 2
VIDEO 2
TV VIDEO 1
AUDIO IN AUDIO IN DIGITAL IN
OPTOCAL
L
R
DIGITAL IN
DIGITAL
IN
COAXIAL
COAXIAL
ECM-AC1
CENTER
INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P B /C B P R /C R VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
EURO AV
OUTPUT (TO TV)
SYSTEM CONTROL
Rear of the subwoofer Bottom of the subwoofer
continued
