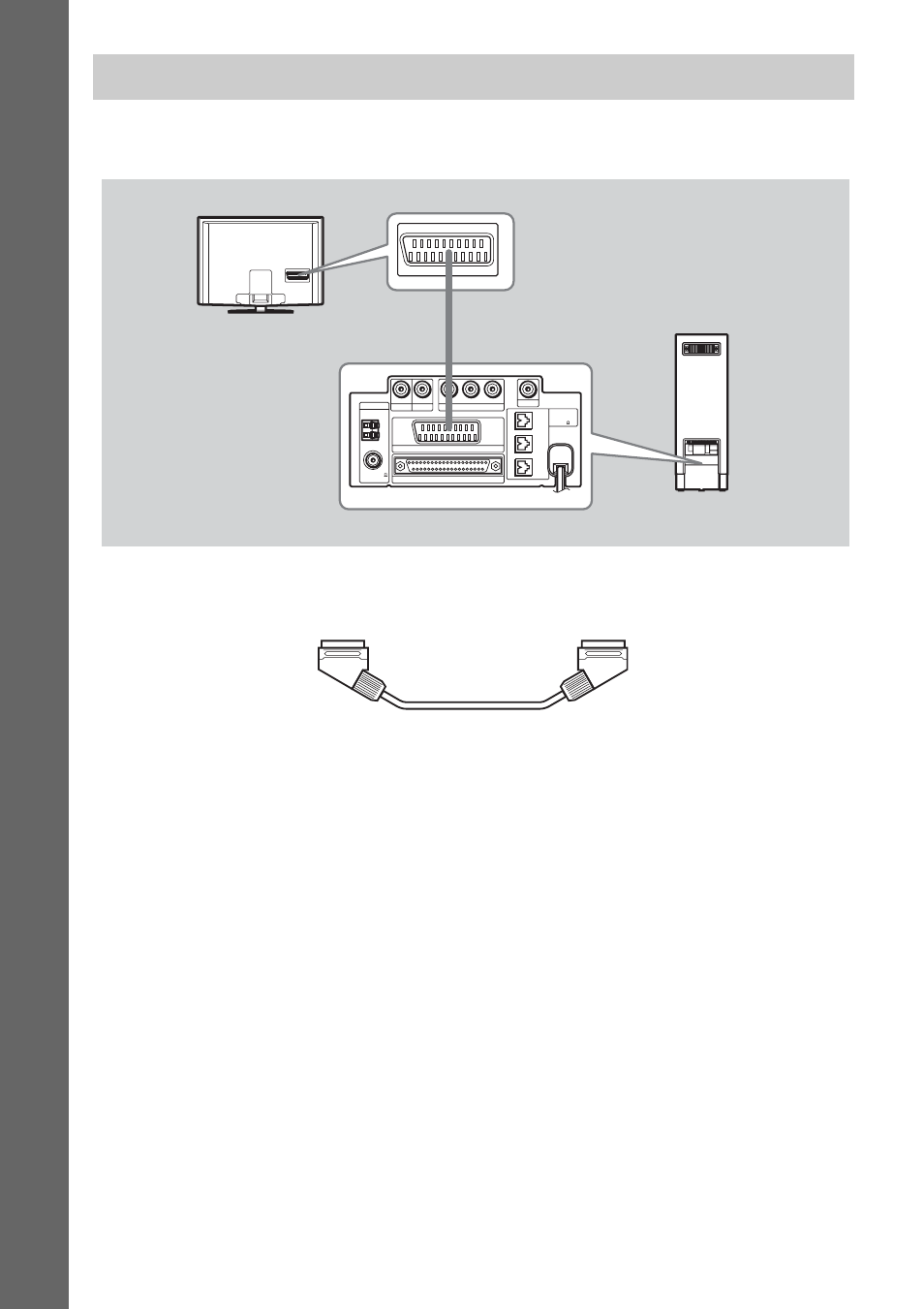

This hookup is the basic connection of the system and TV. For other TV connections, see page 35. For
other component connection, see page 39.
Required cords
SCART (EURO AV) cord (not supplied)
.
Be sure to connect the SCART (EURO AV) cord to the EURO AV T OUTPUT (TO TV) jack on the
system.
By connecting the system and the TV with the SCART (EURO AV) cord, the system sends the image
to the TV, and the TV sends TV sound to the system. (You can enjoy TV sound from the speakers of
the system.)
Step 3: Connecting the TV
CENTER INPEDANCE
USE 4
FRONT
L
FRONT
R
FM 75
COAXIAL
AM
VIDEO IN Y P B /C B P R /C R VIDEO IN
VIDEO 1 COMPONENT VIDEO OUT
DIR-T1
VIDEO 2
SPEAKER
EURO AV
OUTPUT (TO TV)
SYSTEM CONTROL
Subwoofer
TV
Bottom of the subwoofer
