Front view – StarTech.com STARVIEW SV441DUSBI User Manual
Page 7
Instruction Manual
2
SV441DUSBI
SV841DUSBI

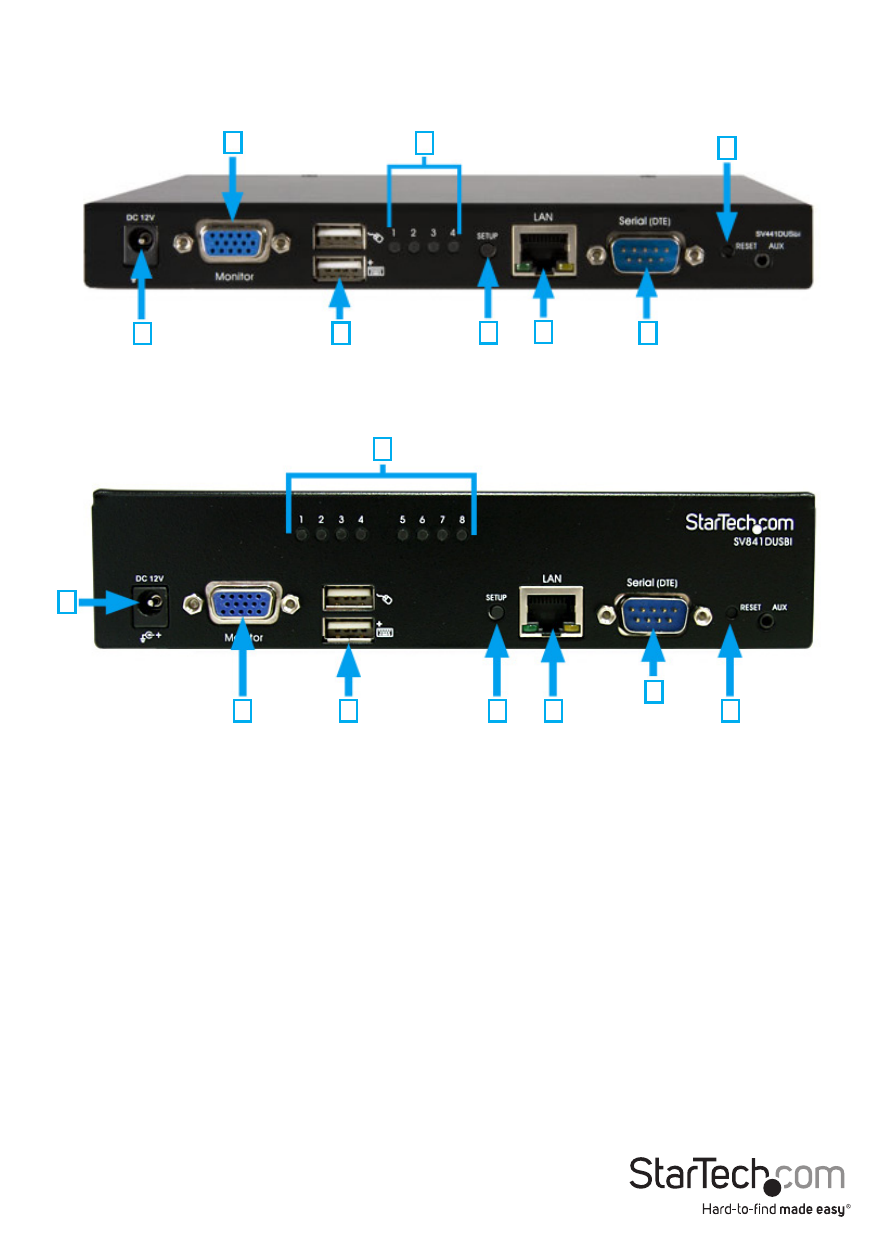

Front View
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1. DC Power connector
2. DE-15 VGA connector (Local Console monitor)
3. USB Keyboard/Mouse connector (Local Console)
4. Port Status LED Indicators (see next page for descriptions)
5. Setup button
6. RJ45 Ethernet connector
7. DB9 Serial connector
8. Reset button
