Page 16: Caution, Controls and instrument 4.1 identification
12
R
Section 4
CAUTION
Do not attempt to operate this mower unless you
have read this manual. Learn the location and
purpose of all controls and instruments before
you operate this mower.
CONTROLS AND INSTRUMENT
4.1
IDENTIFICATION
Before operating the mower, familiarize yourself with all
mower and engine controls. Knowing the location, function
and operation of these controls is important for safe and
efficient operation of the mower.
Ignition Switch (Figure 4-1).
1.
The ignition switch
is used to start the engine and has four positions;
PREHEAT, OFF, ON, and START.
OPERATING INSTRUCTIONS
Mower Deck Switch (Figure 4-1).
2.
Used to engage
and disengage the mower drive system. Pulling up
on the switch will engage the deck drive. Pushing
down on the switch will disengage the deck drive.
Glow Plug Indicator (Figure 4-1).
3.
Yellow indicator
turns on when the key switch is turned to the
PREHEAT position. Glow plugs must be preheated
for 5 to 10 seconds before starting the engine.
Engine Throttle Control (Figure 4-1).
4.
Used to
control the engine speed. Pushing the lever forward
increases engine speed. Pulling the lever back
decreases engine speed. Full back position is the
IDLE position. Full forward is the cutting position.
voltmeter (Figure 4-1).
5.
Indicates the condition of
the charging system. When the engine is running, in
normal operating conditions, the needle should be in
the 12 to 14 volt range.
Oil Pressure (Figure 4-1).
6.
Indicates engine oil
pressure. Reference the engine operator's manual
for further information.
H
a
lj
a
le
fj
a
ir
jf
;o
3
rf
a
f
k
rj
f
;w
so
rg
f
a
lj
a
le
fj
a
ir
jf
;o
3
rf
a
lj
a
le
fj
a
ir
jf
;o
3
rf
O
F
F
O
F
F
O
F
F
LEFT STEERING
CONTROL
HOURMETER
FUEL GAUGE
DUMP vALvE
FUSES
ENGINE
THROTTLE
CONTROL
RIGHT STEERING
CONTROL
DECK LIFT
DECK RELEASE
STT-25KBD2007CONTROLS
PARKING BRAKE
CONTROL
CUTTING HEIGHT
ADJUSTMENT
WATER TEMPERATURE
MOWER DECK SWITCH
OIL PRESSURE
IGNITION SWITCH
vOLTMETER
GLOW PLUG INDICATOR
C
SEAT BELT

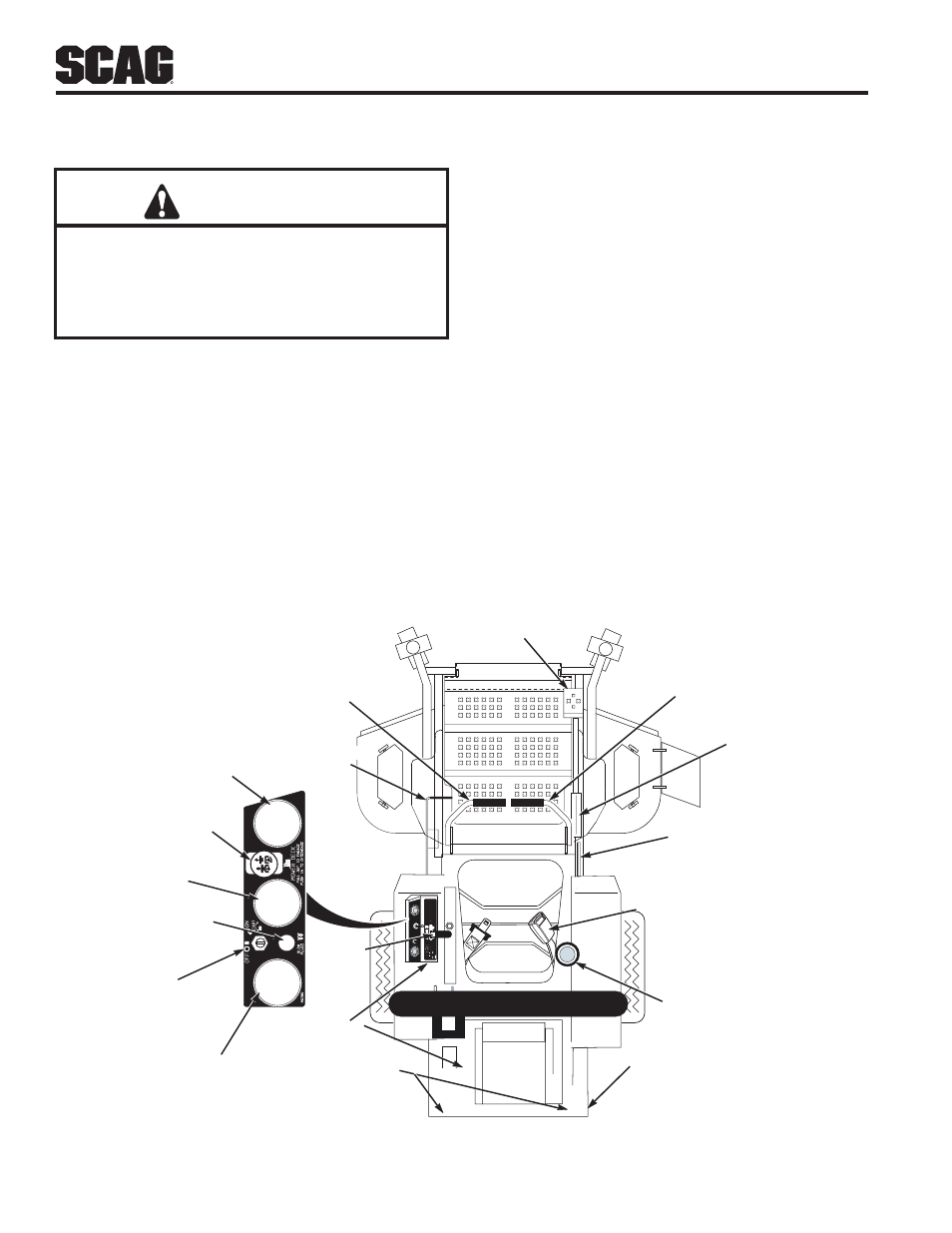

Controls and Instruments
Figure 4-1.
