CONNECTIONS

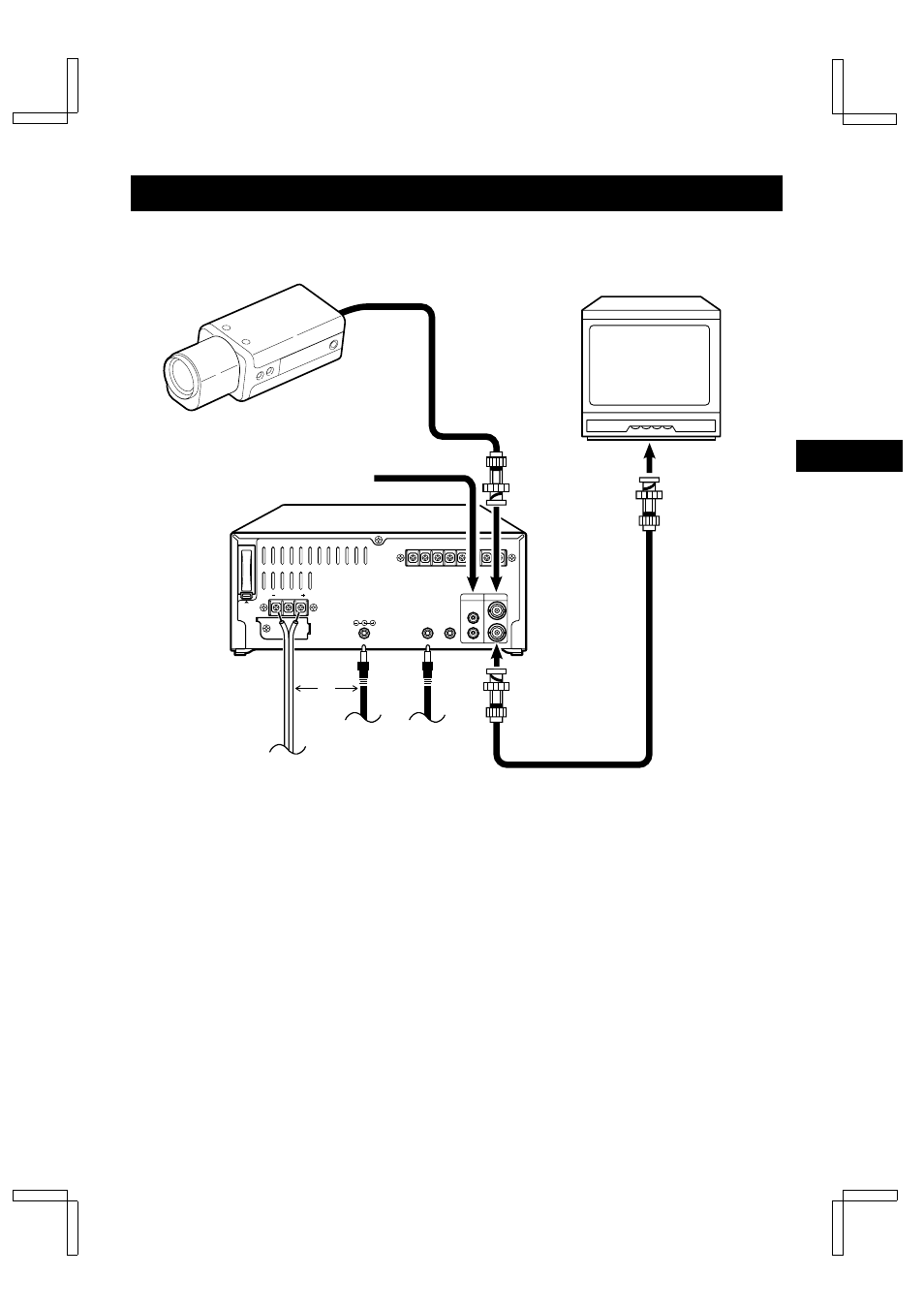

Connect the video camera and monitor TV as shown in the figure below.
NOTE:
Before making the connections, make sure all the devices are disconnected from the DC power supply.
About the memory reset
If the VCR location is changed or to cancel previous
settings, please reset the memory as described below.
The time and date will be reset.
To reset the memory, press the ALL RESET button.
NOTES:
•
For more details, please refer to the manuals
accompanying all other devices. If the connections
are not made properly, it may cause a fire or damage
the equipment.
•
Use a DC power cord rated A.W.G 16 (1.3 mm
2
) or
more, of a maximum length of 6 m.
•
The DC power supply source should be able to
supply 8 A or more. If the power supply is not
sufficient, the VCR may not operate properly.
•
You can use a VA-RMN01 Remote Control Unit (sold
separately) to control remotely the VCR.
AUDIO
VIDEO
OUT
OUT
IN
IN
MIC IN
REMOTE
EXT
TIMER IN COM
WARNING
OUT
TAPE
END OUT
SW
OUT
COM
OUT
IN
ALARM
DC12V IN
PUSH
OPEN
Video camera
(sold separately)
Monitor TV (sold separately)
Coaxial cable
(sold separately)
To
VIDEO IN
jack
To
VIDEO OUT
jack
From an external
audio source
DC power cord
(not supplied)
DC12V IN
or
To
AC to DC
adaptor
(sold
separately)
To
Remote
control
(sold
separately)
To
DC power
supply
